8" HD GPS 3G MP3 USB CD Car Navigation map dvd for VW GOLF6/MAGOTAN/SAGITAR/BORA/TOUGUAN

CHINA FACTORY shenzhen Ziyouxing car radio

KEY FEATURES :

New Technology + All in One + Competitive Price + High quality

MTK3360 800MHz CPU, Dual Core, 256MB RAM, Dual Channel CanBus Decoder included, support OPS/Radar/Air Climate Control/OBD/Backing Track Display, support 1080P RMVB Video, support the newest 10-Band EQ, support 3G WCDMA Internet, VMCD---Virtual 10 CD Changer, Bluetooth PB-Download and PB-Search, Steering Wheel Control, built-in 6 Games, Calculator, 102 Start Unit Logos, 7 Button Light Colors, external Microphone Jack, show iPod/iPhone4/5/iPad playlists, Car Recorder and DVB-T/ATSC/ISDB Box input + power supply + Touch control

 - This unit will fit the following car model:

   PASSAT CC (2008 to 2013), PASSAT (2005 to 2013), Golf 5 (09/2003 to 2013), Golf 6 (08/2008 to 2013),
   Tiguan (2007 to 2013), Touran (2003 to 2013), EOS (2006 to 2013), Jetta (2005 to 2013),
   Caddy (2003 to 2013), Sharan (2010 to 2013), Amarok (2010 to 2013), Scirocco (2008 to 2013),
   Polo V 6R (2009 to 2013), Multivan T5 (2010 to 2013), New Bettle 2 (2011 to 2013).

   SEAT Altea (From 05/2004), Leon (From 09/2005), Toledo (12/2004 Golf), Altea XL (04/2007)
   Note: This unit has front panel size 220mm(Top width)*130mm(High)*210mm(Bottom width),


General
-Power Supply: DC 12V (allowable range: 10.8 14.5)
-Max Current: 10A
-Button Backlight Color: Red/Green/Blue/Yellow/Magenta/Cyan/White
-Install Size: 178mm*153mm*100mm
-Package Size: 330mm*250mm*170mm
-Gross Weight: 3.5kg
-Net Weight: 3.0 kg

Display
-Screen Type: 7 Inch Touch Screen
-Resolution: 800 * RGB * 480
-Built in Clock and Calendar : Yes
-Built in Games: yes,6 Games Built in
-Built in Calculator: yes
-Screensaver: yes , you can set it to 15s/30s/60s
-Wallpaper: yes, default 10 for your choice, you can upload image by yourself
-Bootlogo: yes, 102 logos for your Choice
-Drag and drop Icon : Yes, the position of the icons can be changed at will
-Change the Backlight: yes, you can choose Day/Night and adjustable
-One Button for Blank Screen: Yes, Shut off Display but keep Sound in evening
-Digital or Analog : Digital Touch Screen, very vivid

Setup
-Beep Setup: On/Off
-Multi Menu Languages: English/Chinese/Russian/Turkish/French/German/Italian/Spanish/Portuguese/
Hebrew/Arabic/Polish/Thai
-Bluetooth Setup: Auto Answer: on/off, Auto Connect: Yes/No
-Navigation Setup: Volume mixed/Auto to Navi when power on
-EQ Setup: Support the latest 10 band EQ
-Sound Setup: User/Flat/Pop/Rock/Jazz/Class
-Video Setup: Yes
-RDS Setup: Yes

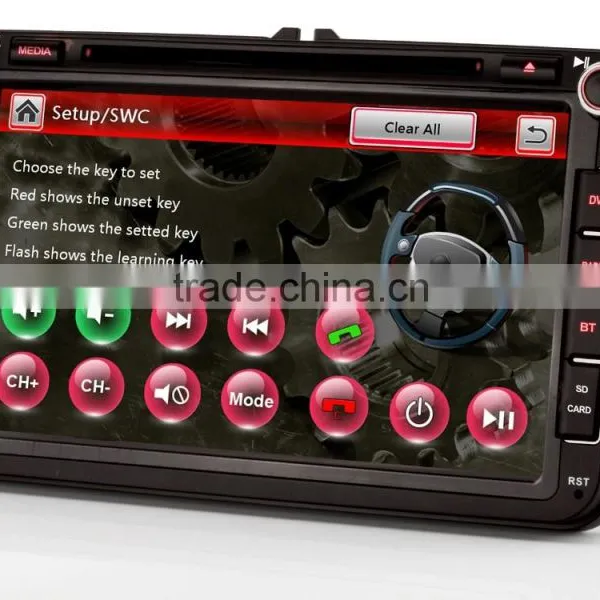

-Steering wheel Setup: Yes
-Date/Time Setup: Clock/Date/Week/Time Zone adjustable or GPS Time
-Factory Setup: yes, the code is 3711

GPS
-Operation System: Microsoft Windows CE. NET 6.0
-CPU: MTK3360 800mHz,Dual Core ARM9+ARM11
-RAM: 256MB
-External Memory Size: can extended to 32GB
-Supported Map: SYGIC, IGO,Garmin and so on
-Free 8GB SD Card included: yes
-GPS Menu Operation Languages: English/Chinese/German/French/Spanish/Dutch/Hungarian/Czech/Danish/Norwegian/Portuguese/Italian/Finnish/Romanian/Polish/Russian/Swedish
-Voice guidance: Yes
-Support 2D/3D Map Views: Yes
-Dual Zone Function: Yes

DVD
-DVD Lens Brand: SANYO 860C
-Decoder: SUNPLUS 8202 VGQ
-Compatible Format: DVD, DVD R,DVD RW,HDVD,DVCD,MP3,MP4,CD R,CD RW,VCD,DIVX,WMA/JPEG
-Audio/Subtitle Language: English/French/Portuguese/German/Italian/Arabic/Russian
-Divx Title: Unicode/UTF8/ASCII
-Last Position Memory : Yes, expediently watch all kinds of disc continuously

Bluetooth
-Hands Free: yes
-A2DP (Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth
-Built in Microphone : Yes
-Phone Book Download: Yes, can download Phonebook from mobile to this unit
-Phone Book Search: yes,just input the first letter of name, you will find some associated names
-External Microphone Jack: yes, on the back

DVR IN
-Special port for DVR input: yes
-Power Connected DVR: yes, Car DVD can power the connected Camcorder directly
-Touch control of the connected DVR: yes
-DVR Camcorder included: No, you can buy our ES458 Cacorder together

DTV
-Special port for DTV Box input: yes
-Support DTV Box Standard: ATSC/DVB T/ISDB
-Power connected DTV Box: yes, Car DVD can power the connected TV BOX directly
-Touch Control of the Connected TV Box: yes
-TV Box included: No, you can buy our ES396 or ES296 together

Radio
-Radio Module: Si4745
-AM Frequency Range: 522 1620KHz
-AM Increment: 9KHz(EU)/10KHz(US)
-FM Tuning Range: 87.5 108MHz
-FM Increment: 0.05MHz(EU)/0.1MHz(US)
-FM Area: Europe/USA1/USA2/Russia/Japan
-RDS: Yes
-Preset Stations: 30 (FM 3*6, AM 2*6)

iPod/iPhone
-Compatible with iPhone 4/5/iPad/iPod: yes
-Charge iPhone 4/5/iPad/iPod: yes
-Show Playlist: yes
-Built in iPod Audio Decoder: yes, just connect it to USB1/USB2 Port to Play
-Control iPhone from DVD player: yes
-Support iPhone vidoe input: no ,but you can buy one ES128 video cable to support this functio

USB
-Position: USB1 and USB2 on the back of the unit
-Capacity: 16GB
-Support MP5 Video: Yes, support 1080P RMVB Video
-Touch Music title to play directly : Yes

SD
-Position : On the front Panel
-Capacity : 16GB
-Support MP5 Video: Yes, support 1080P RMVB Video
-Touch Music title to play directly : Yes

Other
-3G WCDMA Ready: yes
-VMCD: yes, support virtual 10 CDs
-Games: 6 built in Games
-Back Track Display: yes
-OBD Display: yes
-A/C Control Display: yes
-OPS/Radar Display: yes
-Calculator: yes
-Calendar: yes

Input
-AUX Video In: One
-Camera Video In : One
-iPod In: One
-AUX Audio In: R/L
-DTV Box input: One
-DVR Input: One
-External Microphone Input: One
-Radio Antenna Input: One
-GPS Antenna Input: One

Output
-Video Out: one
-Audio Out: R/L
-Surround Stereo Output: 4 x 50w
-Subwoofer Out: One

Control
-Remote Control: Yes
-Steering Wheel Control: Yes
-Reverse Control: yes
-Auto Antenna Control : yes
-Hand brake Control: Yes
-External DVR Touch Control: Yes
-External DTV Box Touch Control: Yes
-External iPod/iPhone Touch Control: Yes

Accessories
-User's Manual in English: One
-Power Cable with Special Port: One
-Can bus Decoder : One
-RCA Cable: One
-USB Cable: One
-GPS Antenna: One
-Free 8GB SD Card as gift: One
-Stylus : One
