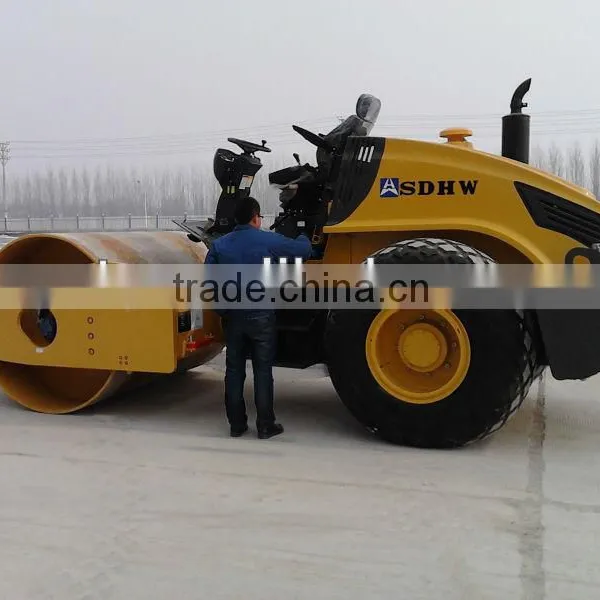

Help CenterS814L 14Ton Road Roller With Shanghai Diesel Engine for Exporting to Russia
Related Products
-
8ton Double Drum Road Roller D808H With DEUTZ EngineUS$ 83,235 - 84,230MOQ: 1 Unit -
13ton Double Drum Road Roller D813H With DEUTZ EngineUS$ 86,500 - 86,700MOQ: 1 Unit
-
10ton Double Drum Road Roller D810H With DEUTZ EngineUS$ 84,500 - 85,700MOQ: 1 Unit
-
12ton Double Drum Road Roller D812H With DEUTZ EngineUS$ 86,500 - 86,700MOQ: 1 Unit
-
Tire Roller P816US$ 46,500 - 47,600MOQ: 1 Unit
Specifications
S814C,Heavy duty vibratory rollers With cummins or shanghai diesel engine,popular for exporting to brazil and russia with gost.S814C ROAD ROLLER
S814C,Heavy duty vibratory rollers effect powerful centrifuga force and great static linear load, They are suitable for non-cohesive materials, such as sandy soil,gravel,crushed stones, rock fillings and slightly cohesive soils, designed for large foundation constructions such as high-class highways, mines, dams, airports, harbors, railways and industrial areas etc.
Main Features
Mechanical travel drive, double amplitude, hydraulic vibration and steering with optimal function/price ratio and reliable performance.
Reliable shanghai Cat D6114 or Cummins diesel engine for convenient operation and maintenance.
Two sets of brake devices, a hand brake and foot pedal brake, assure the machine's safety and dependability.
Spacious and comfortable cab mounted on top quality rubber damping elements.
World advanced technology is adopted for the hydraulic vibration technology, high in reliability, simple and convenient in maintenance, and low in cost.
Equipped with padfoot or removal padfoot as option.
WITH:
Shanghai CAT engine,air conditioner in Cabin,Hachi gearbox,Permco pumps and valves.
Price::35,000.00USD/UNIT.
Price for 12ton will be 3000usd lower per unit.
ONE UNIT PUT INTO ONE 40FEET HQCONTAINER.
CUMMINS 6BT5.9 ENGINE PLUS:2000USD/UNIT
MODEL |
|
S814C S812C |
Operating mass |
Kg |
14000 12000 |
Static linear load |
N/cm |
315 |
Vibration amplitude |
Hz |
30 |
Vibration fraquency |
mm |
1.8/1.0 |
Centrifugal force |
kN |
261/145 |
Travel speed |
|
|
1st gear |
Km/h |
2.6 |
2nd gear |
Km/h |
4.6 |
3rd gear |
Km/h |
10.5 |
Grade ability |
% |
30 |
Turning angle |
o |
32 |
Ground clearance |
mm |
433 |
Bectrical voltage |
v |
24 |
Turning radius |
mm |
6400 |
Vertical oascill ation |
|
8-10 |
Type size |
|
23.1-26 12pr |
Overall length |
mm |
5990 |
Overall width |
mm |
3038 |
Overall hieght |
mm |
3050 |
Vibration round width |
mm |
2130 |
Drum diameter |
mm |
1600 |
Drum rim thickness |
mm |
24 |
Wheelbase |
mm |
3160 |
Diesel model |
ENGINE |
Shanghai SC5D125G2B1 (CUMMINS FOR OPTIONAL) |
Diesel power |
kW |
92 |
Diesel speed |
r/min |
2200 |
Fuel tank capacity |
L |
200 |
Hydraulic tank capacity |
L |
200 |
1.Delivery Time: Cat engine have in stock,cummins engine need 15 working days after receiving down payment.
2.Guarantee Time: one year or 1800 working hours which comes first after the date of B/L.
3.Payment Terms: By TT--30% should be paid after singing contract, and 70% should be paid before goods dispatching from the factory.
