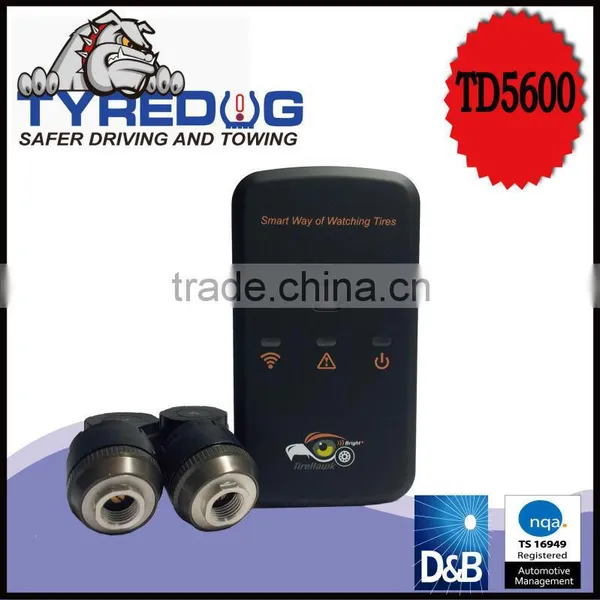

TPMS for iPhone 5 TYREDOG TD5600AX
1. TD5600 AX package information
TD5600 AX wifi module |
1 pcs |
TD5600 AX tire pressure sensor |
4 pcs |
User’s guide |
1 pcs |
Monitor Bracket |
1 pcs |
Anti-theft lock tool |
4 pcs |
AAA 1.5v battery |
2 pcs |
CR 1632 battery |
4 pcs |
2. TD5600 AX technical specification:
Sensor Specification | |
Frequency |
433.92MHz |
Pressure range |
0 ~ 60PSI. |
Accuracy |
Tire pressure ±1 PSI / temperature ±2 °C |
Operating voltage |
3V DC |
Operating temperature |
-40°C~125°C |
Dimensions |
20.5mm X 20mm |
Weight |
10g(±1g) |
Battery life |
1~2 years (depends on working hours per day) |
Monitor Specification | |
Frequency |
433.92MHz |
Operating voltage |
3V DC |
Operating temperature |
-20°C~80°C |
Dimensions |
91mm X 73.5mm X22mm |
Weight |
100 g |
Battery life |
1 years (depending on daily operation time) |
3. Product features:
Light and compact
Extremely lightweight and compact with specially designed electronic sensors.
Battery power status display
The LCD monitor will display a low battery warming when either the monitor unit or any of the tyre sensors has low bettery power.
Abnormal pressure warming
The LCD monitor will send an immediate warning if any tyre is monitored and exceeds the pressure parameters that you chose to set.
LCD monitor
The LCD monitor displays the 4 tyres pressures.This monitor can be mounted inside the vehicle by using either the suction cup mount or alternatively the self adhesive plate. This monitor can also be powered from the vehicle cigar lighter socket by using the power adapter supplied.
Accurate tyre pressure sensors
Electronic tyre pressure sensors are accurate to +/- 1 PSI.
DIY installation
Simply screw the sensors onto the valve stems in the place of valve stem caps.
Transmission status display
The sensors will automatically transmit pressure/temperature date to the LCD monitor when it is turned on.
Anti theft sensor mounting design
Each of the tyre pressure sensors is provided with a specially designed locknut. This secures it tightly onto the valva stem and prevents easy removal.
Multinational patents
This product has been patented in the US,EU ,Taiwan, China etc.The patents cover PC board circuit and mechanical design. It is illegal to copy this product in any without authorization.
4. Other Series
5.Certificates
6.Welcome to visit my website:.tw
