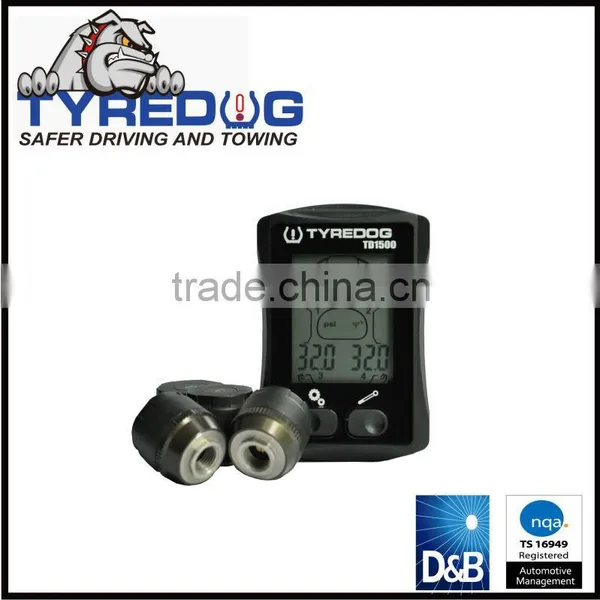

1. External TPMS package information
- TD 1500 AX LCD monitor
- TD 1500 AX tyre pressure sensor ×4
- CR 1632 battery ×4
- User’s guide ×1
- Self adhesive base plate ×1
- Suction plate ×1
- Mounting frame for LCD monitor ×1
- AAA 1.5v battery ×2
- Vehicle external power cable ×1
- Anti-theft lock tool ×4
2. TD1500 AX technical specification:
Transmitter:
- Frequency:433.92MHz
- Operation temperature:-40°C~125°C
- Dimensions:Diameter 20.5mm × Length 20mm
Monitor receiver:
- Frequency:433.92MHz
- Operation temperature:-20°C~80°C
- Dimensions:Diameter 91mm × 73.5mm × 22mm
Main Functions:
- Ensure the safety of vehicle travel.
- Reduce fuel consumption.
- Enhance tyre life.
- Real time monitoring of tyre pressure and temperature.
3. Product features:
Light and compact
Extremely lightweight and compact with specially designed electronic sensors.
Battery power status display
The LCD monitor will display a low battery warming when either the monitor unit or any of the tyre sensors has low bettery power.
Abnormal pressure warming
The LCD monitor will send an immediate warning if any tyre is monitored and exceeds the pressure parameters that you chose to set.
LCD monitor
The LCD monitor displays the 4 tyres pressures.This monitor can be mounted inside the vehicle by using either the suction cup mount or alternatively the self adhesive plate. This monitor can also be powered from the vehicle cigar lighter socket by using the power adapter supplied.
Accurate tyre pressure sensors
Electronic tyre pressure sensors are accurate to +/- 1 PSI.
DIY installation
Simply screw the sensors onto the valve stems in the place of valve stem caps.
Transmission status display
The sensors will automatically transmit pressure/temperature date to the LCD monitor when it is turned on.
Anti theft sensor mounting design
Each of the tyre pressure sensors is provided with a specially designed locknut. This secures it tightly onto the valva stem and prevents easy removal.
Multinational patents
This product has been patented in the US,EU ,Taiwan, China etc.The patents cover PC board circuit and mechanical design. It is illegal to copy this product in any without authorization.
TFT alarm futures
Real time clock and parking timer Auto locking system for doorsAuto start engine
Built in auto start signal detection,control circuitTurbo timer for your ride
Remote transmission distance to main unit around 1000mRemote feedback range to transmitter up to 1500mBuilt in trunk releaseShock sensor and ultra sonic motion sensor can be selectedOverride shock sensorEmergency disarm and reset with car keyEngine immobilizer Ignition lockAuto re-arm function, Anti-theft and anti-hijack.
New and improve TPMS system with spare tire sensor
