Tire Pressure Monitoring System (TPMS)

Name: Tire Pressure Monitoring System (TPMS)
Brand: TYREDOG
SKU: 112476113
Availability: InStock

Tire Pressure Monitoring System (TPMS) thumbnail-1

Tire Pressure Monitoring System (TPMS) photo-1

Negotiable MOQ: 200 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Taiwan, China

Brand Name:

TYREDOG

Model Number:

TD1300AX 05

Contact Supplier Request Quote Chat Now

Josn Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Keelung

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Taiwan, China

Brand Name TYREDOG

Model Number TD1300AX 05

Specifications

1. External tye sensor
2. Monitor Spare tire PSI
3.100% wireless TYREDOG TPMS
4.Extend tire life improve fuel consumption

TYREDOG TPMS 1.Wireless TPMS 2.Instant installation 3.Improve fuel saving 4.Extend tire life

1. Tpms tire pressure monitoring system package information

TD1300 AX05 LCD monitor
TD1300 AX05 tyre pressure sensor ×4
CR 1632 battery ×4
User’s guide ×1
Self adhesive base plate ×1
Suction plate ×1
Mounting frame for LCD monitor ×1
AAA 1.5v battery ×2
Vehicle external power cable ×1
Ant-theft lock tool ×6

2. TD1300 AX05 technical specification:

Transmitter:

Frequency:433.92MHz
Operation temperature:-40°C~125°C
Dimensions:Diameter 20.5mm × Length 20mm

Monitor receiver:

Frequency:433.92MHz
Operation temperature:-20°C~80°C
Dimensions:Diameter 91mm × 73.5mm × 22mm

Main Functions:

Ensure the safety of vehicle travel.
Reduce fuel consumption.
Enhance tyre life.
Real time monitoring of tyre pressure and temperature.

3. Product features:

Light and compact

Extremely lightweight and compact with specially designed electronic sensors.

Battery power status display

The LCD monitor will display a low battery warming when either the monitor unit or any of the tyre sensors has low bettery power.

Abnormal pressure warming

The LCD monitor will send an immediate warning if any tyre is monitored and exceeds the pressure parameters that you chose to set.

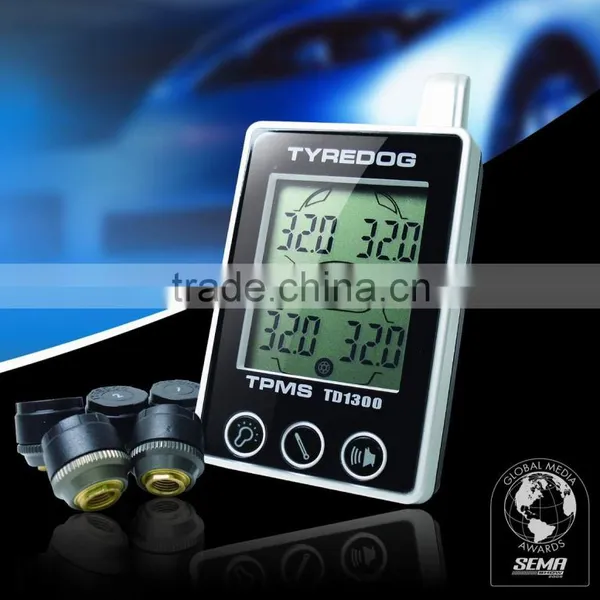

LCD monitor

The LCD monitor displays the 4 tyres pressures.This monitor can be mounted inside the vehicle by using either the suction cup mount or alternatively the self adhesive plate. This monitor can also be powered from the vehicle cigar lighter socket by using the power adapter supplied.

Accurate tyre pressure sensors

Electronic tyre pressure sensors are accurate to +/- 1 PSI.

DIY installation

Simply screw the sensors onto the valve stems in the place of valve stem caps.

Transmission status display

The sensors will automatically transmit pressure/temperature date to the LCD monitor when it is turned on.

Anti theft sensor mounting design

Each of the tyre pressure sensors is provided with a specially designed locknut. This secures it tightly onto the valva stem and prevents easy removal.

Multinational patents

This product has been patented in the US,EU ,Taiwan, China etc.The patents cover PC board circuit and mechanical design. It is illegal to copy this product in any without authorization.
