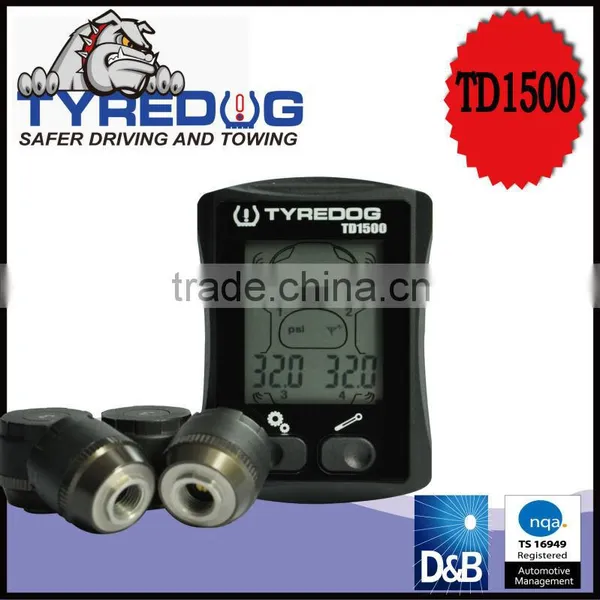

1. TYREDOG TD 1500 AX TPMS package information
- TD1500-X LCD monitor
- TD1500-X external sensor ×4
- CR 1632 battery ×4
- User’s guide ×1
- Self adhesive base plate ×1
- Suction plate ×1
- Mounting frame for LCD monitor ×1
- AAA 1.5v battery ×2
- VELCRO x 1
2. TYREDOG TD1500AX technical specification:
Transmitter:
- Frequency:433.92MHz
- Operation temperature:-40°C~125°C
- Dimensions:Diameter 20.5mm × Length 20mm
Monitor receiver:
- Frequency:433.92MHz
- Operation temperature:-20°C~80°C
- Dimensions:Diameter 91mm × 73.5mm × 22mm
Main Functions:
- Ensure the safety of vehicle travel.
- Reduce fuel consumption.
- Enhance tyre life.
- Real time monitoring of tyre pressure and temperature.
3. Product features:
<img src="/img/pb/209/988/106/105608361_331.jpg" alt="TYREDOG TPMS" width="75" height="60">Light and compact
Extremely lightweight and compact with specially designed electronic sensors.
<img src="/img/pb/210/988/106/105608364_835.jpg" alt="TYREDOG TPMS" width="73" height="56">Battery power status display
The LCD monitor will display a low battery warming when either the monitor unit or any of the tyre sensors has low bettery power.
<img src="/img/pb/211/988/106/105608371_290.jpg" alt="TYREDOG TPMS" width="76" height="59"> Abnormal pressure warming
The LCD monitor will send an immediate warning if any tyre is monitored and exceeds the pressure parameters that you chose to set.
<img src="/img/pb/212/988/106/105608373_914.jpg" alt="TYREDOG TPMS" width="73" height="60"> LCD monitor
The LCD monitor displays the 4 tyres pressures.This monitor can be mounted inside the vehicle by using either the suction cup mount or alternatively the self adhesive plate. This monitor can also be powered from the vehicle cigar lighter socket by using the power adapter supplied.
<img src="/img/pb/208/988/106/105608356_804.jpg" alt="TYREDOG TPMS" width="78" height="61">Accurate tyre pressure sensors
Electronic tyre pressure sensors are accurate to +/- 1 PSI.
<img src="/img/pb/213/988/106/105608374_854.jpg" alt="TYREDOG TPMS" width="78" height="64">DIY installation
Simply screw the sensors onto the valve stems in the place of valve stem caps.
Transmission status display
The sensors will automatically transmit pressure/temperature date to the LCD monitor when it is turned on.
<img src="/img/pb/207/988/106/105608353_702.jpg" alt="TYREDOG TPMS" width="78" height="62">Anti theft sensor mounting design
Each of the tyre pressure sensors is provided with a specially designed locknut. This secures it tightly onto the valva stem and prevents easy removal.
Multinational patents
This product has been patented in the US,EU ,Taiwan, China etc.The patents cover PC board circuit and mechanical design. It is illegal to copy this product in any without authorization.
4. Other Series
<img src="/img/pb/214/988/106/105608975_632.jpg" alt="TYREDOG TPMS" width="800" height="632">
5.Certificates
<img src="/img/pb/215/988/106/105608983_089.jpg" alt="TYREDOG TPMS" width="800" height="533">
