Made-in-china Backhoe B680
- Qingdao
- T/T
You May Like
-
China Articulated Backhoe Loader Cummins / Yuchai Engine
-
China SDLG Articulated Backhoe Loader Cummins / Yuchai Engine
-
China SDLG Compact Backhoe Loader With Cummins Engine, Air Condition, Pilot Control
-
Competitive Price Mini Backhoe Loader WZ30-25
-
Competitive Price Zot Backhoe Loader WZ30-25 Cummins Engine
-
Competitive Price Backhoe Loader WZ30-25
Product Details
| Condition | New | Brand Name | SDLG | |
| Model Number | B680 | Place of Origin | Shandong, China | |
| Type | Backhoe Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 7570*2236*3540mm | Rated Load | 1800kg | |
| Certification | iso | Warranty | 1year | |
| After-sales Service Provided | Overseas service center available |
Product Description
Specifications
backhoe loader B680Engine: YUCHAI engine,CUMMINS engine
Air condition,joystick
4 in 1 bucket, hammer
competitive price
SDLG backhoe loader B680

Introduction:
Shandong ZOT Machinery Co.,LTD. is a member of SDLG group , which is specialized in manufacturing wheel loader, backhoe loader, road roller, motor grader and other construction machinery. We devote ourselves to improving quality and building good brand. We need profit as well as long term business relationship.
Choosing ZOT machines is the first step to saving money!
Description of this product:
| Engine | |
| Model | CUMMINS (4BTA3.9-C100) |
| No. of cylinders | 4 cyliners in line, Turbo-charged. water cooled |
| Bore and stroke | 102x120 (mm) |
| Displacement | 3.9L |
| Rated power | 74kw/2400rpm |
| Max. torque | 330N.m @1500RPM |
| Transmission system | |
| Hydraulic torque converter | XN280 |
| Drive Method (2 x 4 or 4 x 4) | 4x4 |
| Number of speed forward | 2 (high/low speed) |
| Number of speed reverse | 2 (high/low speed) |
| Speed | |
| First forward | 6 km/h/ 12km/h |
| Second forward | 14.5 km/h/ 29km/h |
| First reverse | 6 km/h/12km/h |
| Second reverse | 14.5 km/h/ 29km/h |
| Axle | |
| Axle type | Hub reduction axle |
| Front axle track | 162 mm |
| Rear axel track | 134 mm |
| Hydraulic system | |
| Hydraulic Motor | Gear pump |
| Model | F1025, VHP2025 |
| Flow rate | 80 l/min |
| Working pressure | 22.5 Mpa |
| Electrical system | |
| Voltage | 24 V |
| Alternator capacity | 4 kw |
| Batterycapacity | 210 Ah |
| General information | |
| Total weight | 7100 kg |
| Overall dimension | 7400x2170x2950 mm |
| Turning radius | 3500 mm |
| Backhoe volume | 0.2-0.25 cbm |
| Loading bucket volume | 0.8-1 cbm |
| Front wheels (size & ply rating) | 12-16 |
| Rear wheels (size & ply rating)) | 15-24 |
| Diesel fuel tank | 125 L |
| Hydraulic system fluid | 132 L |
| Operating range | |
| Loader | |
| Maximum bucket reach | 3850 mm |
| Maximum loading height | 3300 mm |
| Maximum loader dumped height | 2550 mm |
| Dumping distance from bucket to fender | 810 mm |
| Wheelbase | 2110 mm |
| Maximum transport length | 7400 mm |
| Maximum loading depth | 20-25 mm |
| Ground clearance | 300 mm |
| Backhoe | |
| Maximum dumping height | 4250 mm |
| Maximum bucket reach | 5250 mm |
| Maximum digging depth | 3800 mm |
| Maximum digging reach from pivot point | 5250 mm |
| Maximum digging reach from rear axle | 5367 mm |
| Maximum height in transport position | 3300 mm |
| Height to top of cab | 2950 mm |
| Width | 2170 mm |
Some information you want to know:
Our warranty: because of high quality, we are confident to give our customers 2 years warranty!
Our service: Spare parts being supplied in time; Engineers is available to your place; service center is available in some country.
Shipping and packing: Being shipped by container, and naked packing.
Delivery time: within30days after getting deposit
Payment terms: 1. 30%deposit by TT, 70% balance before shipment or after the copy of B/L. 2. 100% Irrevocable L/C at sight.
Contact person: Mr.Gavin Mobile: 86 18615172419 skype: yxianqiang
My factory:

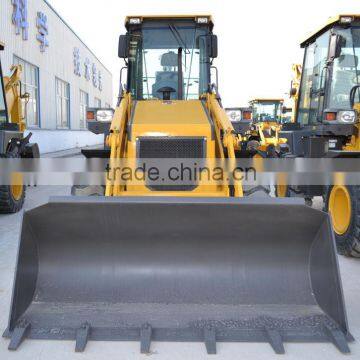

Backhoe Pictures:
