JCB 3CX WZ30-25 backhoe loader with Deutz/Cummins diesel engine popular for Russia

Specifications

1.Engine:YTR,Yuchai,Cummins for different markets.
pact,wheel loader model with CE for eurozones.
3.Multiple attachments.





WZ30-25 BACKHOE LOADER

WITH:YUCHAI ENGINE,SHANTUI TRANSMISSION,SDLG AXLES.



PILOT CONTROL,A/C,EATON WORKING PUMPS,STANDARD BUCKETS,YELLOW



PRICE:33,800USD PER UNIT FOB CHINA PORT.

Cheaper model will be only 16800usd per unit.



Packing: 1 unit put into one 40HC Container.



Warrantee: 2000work hours or 20 monthes after shipping date.





WZ30-25 Technological Parameters



I/ Overall Dimension



-LengthX Width X Height                        7550X 2300 X 3769(mm)



-Cab roof height                                  2900(mm)



-Wheel base                                    2250(mm)



-Track                                          1640(mm)



-Min. ground clearance                             300(mm)



II/ Main Technical Specification



-System Hydraulic pressure



load hydraulic system                                18Mpa



dig hydraulic system                                 20Mpa



steering hydraulic system                              12Mpa



-System Hydraulic flow                             120L/min



four-wheel drive ,whole hydraulic system



total operating weight                                   8500kgs



maximum speed                                       22Km/h



maximum gradient capacity                              30°



--------------------------------------------------------------------------------------



Loader End



-loading bucket capacity                                1.00m3



rated loading                                          1800KG



maximum articulated height of bucket                      3400(mm)



bucket discharge height                                  2795(mm)



bucket discharge distance                             1048(mm)



loading lift capacity                                 25KN



bucket hydraulic translation function                   yes



bucket lift time                                     6.8s



bucket lower time                                   2.5s



bucket discharge time                               1.2s



maximum tractive force                                 39KN



maximum breakout force                              38KN



----------------------------

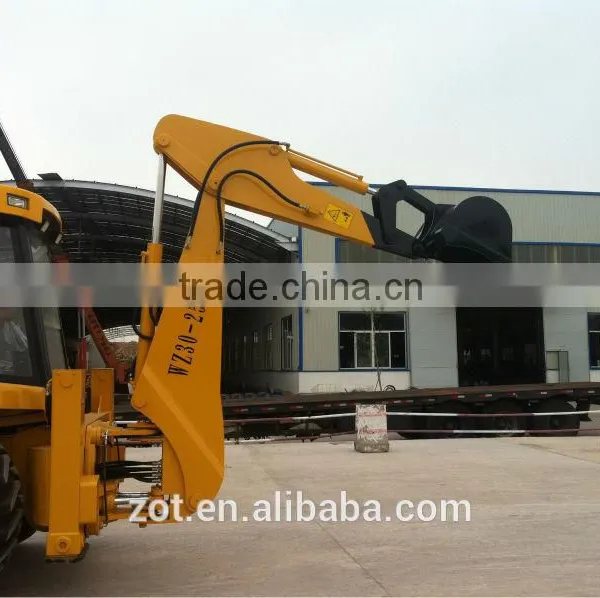

Excavator end:



-backacter bucket capacity                                 0.3m3



backacter discharge height                           3878(mm)



maximum digging depth                            4080(mm)



maximum digging radius                             5688(mm)



bucket slewing angle                               190°



bucket digging capacity                               46KN



bucket stick digging capacity                           31KN







III/ Diesel engine



-Model                       /YUCHAI/       CUMMINS 4BT3.9 EIII ENGINE



-Yype                          inline,directinjection, four-stroke,liquid cooled



rated power                             85HP           90HP



rated speed                            2400r/min       2400 r/min



cylinder –internal diameter             4—105           4—110



maximum torque                   285NM         310NM



minimum fuel consumption           239g/kw.h       245g/kw.h



Displacement                      4.33L         4.5L



IV/ Transmission system



Model of hydraulic pump       fixed shaft power shift transmission



gear shift                      2-forward shift 2-reverse shift



Torque                                    YJ-280



drive pump                                 CDXaf3016-IL



flow                                     16ml/r



work pump                                CBGj2063



flow                                     63ml/r



V/ Steering system



Type                                        articulated hydraulic steering



model of steering control valve                BZZ5-250



model of turning control valve                YSF25S-00



steering angle                                left or right 36±1°



minimum turning radius                       5018(mm)



VI/ Axles



main transmission type       single reduction



wheel reduction type          Single wheel reduction



VII/ Wheel



tire size                            16/17-20



front wheel pressure                  0.22Mpa



rear wheel pressure                  0.20Mpa



service braking                      air over hydraulic disc on 4 wheels



parking brake                     manual parking brake



VIII/ Refill Capacity



fuel tank                       70L



transmission                     25L



front axle                       9L



rear axle                         9L



hydraulic tank                  140L

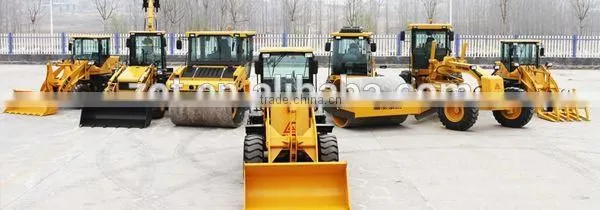

WORKSHOP/PRODUCING LINE:

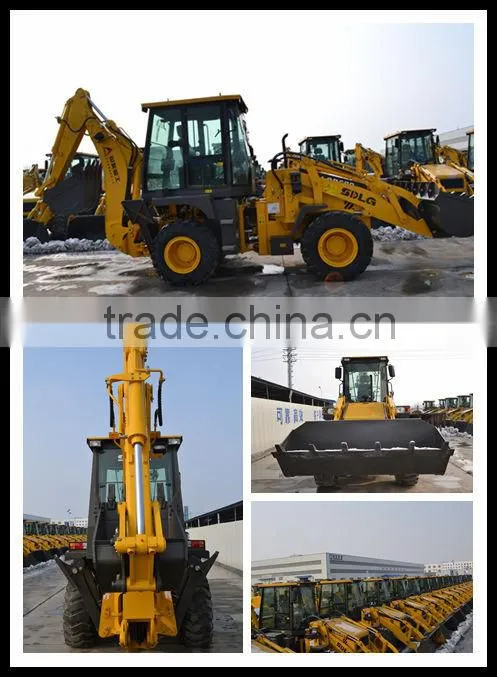

PRODUCTS DETAILS:

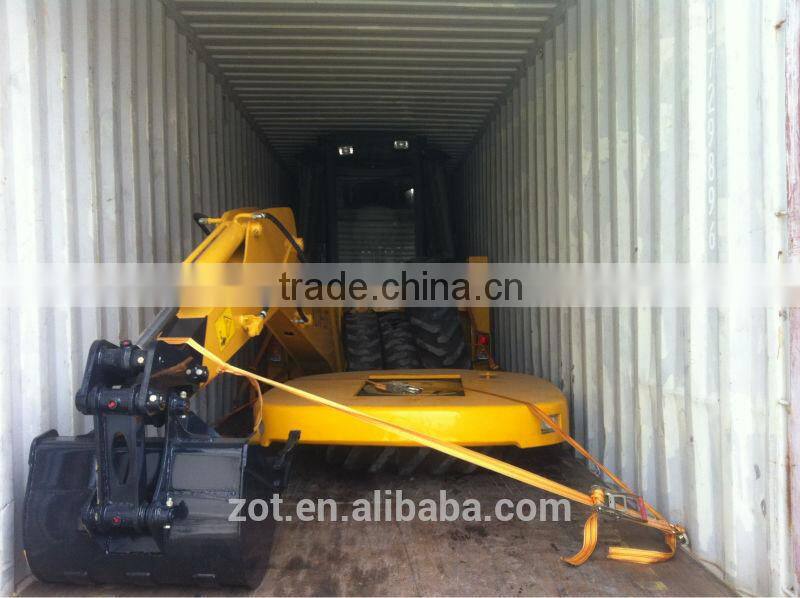

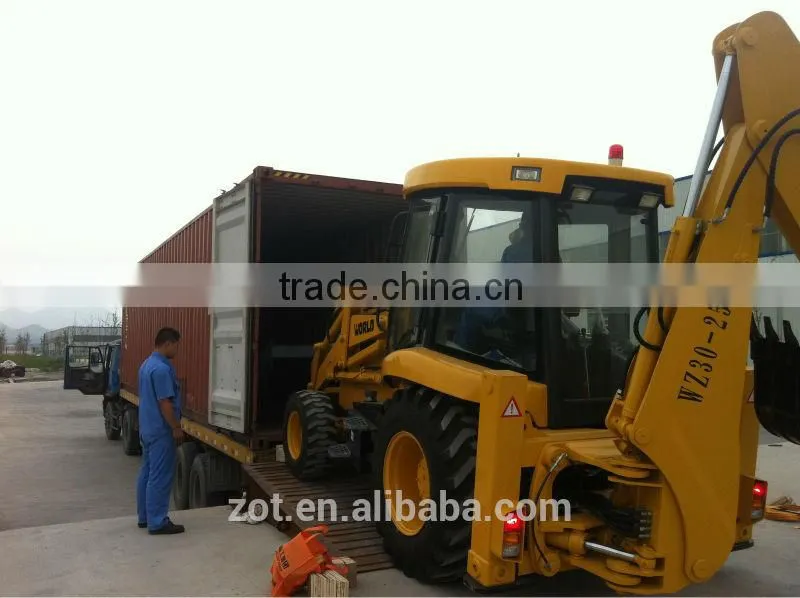

SHIPPING/EXPORTING:







CONTACT US:
