Specifications
1. backhoe loader2.cummins engine
3. good quality
4. 18months warranty
5.Competitive price

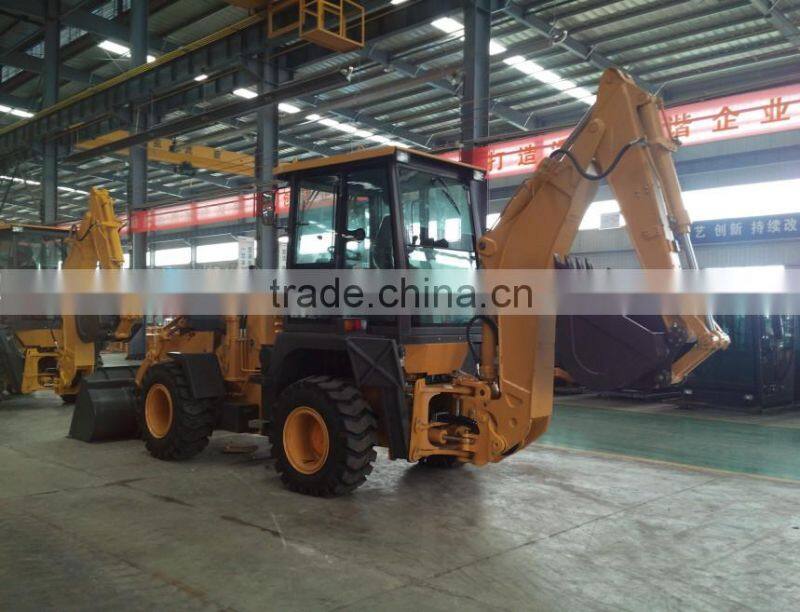

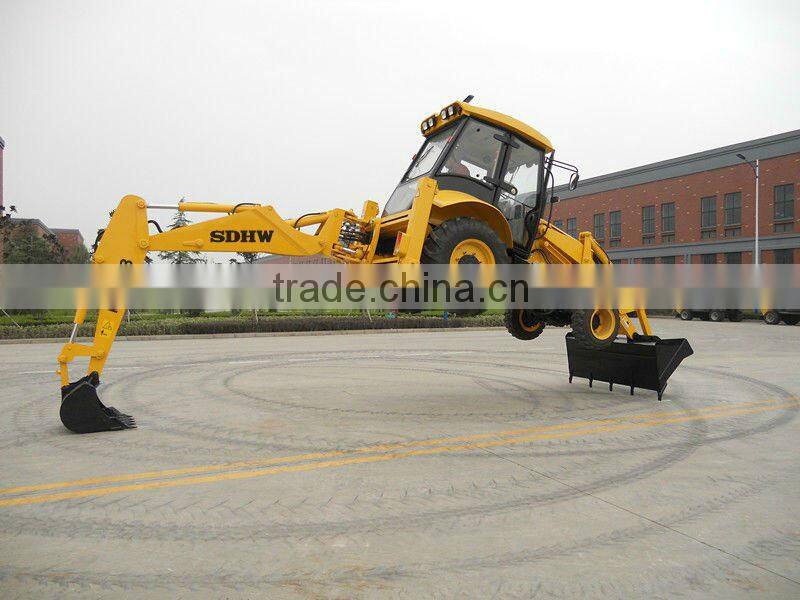

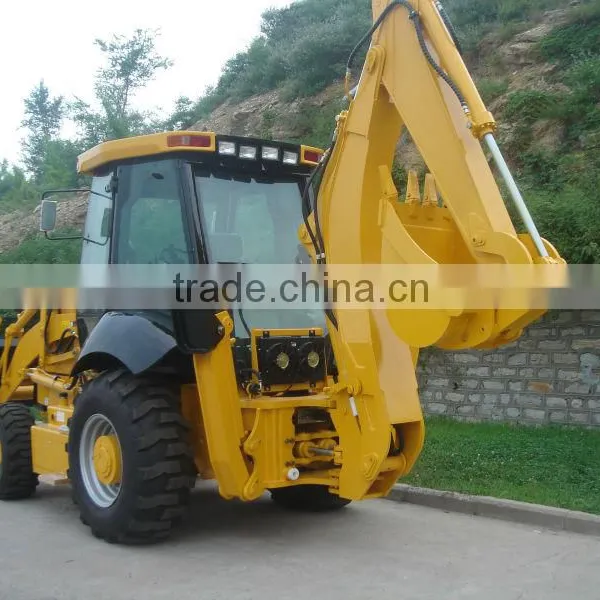

Backhoe loader with Cummins engine
1.Shandong ZOT Machinery Co.,LTD is specialized in the small scraper machinery, mining machinery, compaction machinery and paving machinery research and development, manufacturing and sales. Relying on over forty years engineering machinery manufacturing mature experience and the support of comprehensive and leading product research and development system, ZOT focus on the small units, high ratio of mechanical engineering research as well as providing simple solutions for clients.
2. The company will always put optimizing structure, improving the products quality and the reliability on the first place and implement the whole course quality control. The stability of the supporting system and strict parts access and the delivery inspection standards ensure the product quality and the function steadily improved, which has been widely recognized by customers both at home and abroad. ZOT products are exported to Russia, Brazil, Australia, Nigeria and other countries and regions. In the constant development and expansion, the company according to the features of customer requirements and years of market validation, timely introduced a new type of T series loader, G series loader, Backhoe loader, Road roller, Motor grader, Excavator, Paver, Bulldozer, Forklift, Truck crane, Rim, Valve, etc.
|
Options |
param |
|
Engine | ||
Model |
Cummins |
|
Rated power |
59kW |
|
Rated speed |
2400r/min |
|
Min fuel consumption ratio |
225g/kW.h |
|
TRANSMISSION SYSTEM | ||
Type |
Fix Power shift |
|
Converter type |
YJ280-4B |
|
Torque ratio |
3.43 |
|
|
Traveling speed |
Forward--------------1st: 0~12km/h, 2nd:0~25km/h 3rd:0~9.0km/h, 4th:0~24.0km/h Reverse------------1st: 0~17km/h, 2nd:0~24.0km/h |
|
DRIVING AXLES AND MAIN DRIVE | ||
Type |
German driving axles |
|
Gear ratio |
6.667 |
|
Final reducer |
single stage planetary shift |
|
Gear ratio |
3.32 |
|
BRAKING SYSTEM | ||
Braking pressure |
0.686~0.784Mpa |
|
Service brake |
Air over hydraulic disc on 4 wheels |
|
Parking rake |
Internal expansion type brake |
|
STEERING SYSTEM | ||
Type |
Full-hydraulic articulated steering |
|
System working pressure |
17.5Mpa |
|
Steering angle |
35° |
|
Min. turning radius |
3570mm |
|
STEERING SYSTEM | ||
Excavating Equipment | ||
Type |
Backhoe |
|
Max. Excavating Force |
46.8kN |
|
Max. Excavating Radius |
5457mm |
|
Max. Excavating Depth |
4378mm |
|
Loading Equipment | ||
Type |
Eight Connect |
|
Dump Height |
2700mm |
|
Dump Distance |
860mm |
|
Max. Breakout Force |
53kN |
|
Lifting Ability |
53kN |
|
TIRE | ||
Standard tire |
16/17-20 |
|
Tire pressure |
Front |
0.21MPa |
Rear |
0.21 MPa |
|
|
|
|
There is a long period as 18 months of warranty for Beston's clients, and fully technical support by engineers
40 HQ CONTAINER
Why choose us?
Our backhoe loader is a small multi-function engineering machine newly designed with high cost performance and is widely applied in various building construction engineering, such as road construction and caring, cable laying, electricity and airport engineering, municipal construction and quarrying work, in city and countryside.
1. Low-speed and large-torque Weichai engine meeting the requirement of China II emission standard is provided, with low fuel consumption, strong power and high reliability.
2. Electrically-controlled shift transmission case of famous international brand is used, with four front gear positions and four rear gear positions and is easy and quick to operate; international famous brand of drive axle is configured and is provided with electrically-controlled differential lock with high traffic ability; closed wet double brake is used, with large bearing capacity, high reliability and is more suitable for various bad operating condition.
3. Load-sensing full hydraulic steering system is used, with light and quick steering and stable and reliable performance and is stable to operate; hydraulic system with confluent and split logic functions is provided to realize compound action of excavation.
