Popular Backhoe Loader With Cummins Engine

Specifications

    popular backhoe loader with Cummins engine!

Specifications

1.Overall Dimension

1 Length X Width X Height                5900X 2300 X 3769(mm)

2 Cab roof height                                      2900(mm)

2 Wheel base                                                 2250(mm)

3 Track                                                      1640(mm)

4 Min. ground clearance                                 300(mm)

2.Main Technical Specification

1 system pressure

  load hydraulic system                                18Mpa

 dig hydraulic  system                                20Mpa

  steering hydraulic system                              12Mpa

2 system flow                                           120L/min

3        four-wheel drive ,whole hydraulic system

4 total operating weight                                   7600kg

5 maximum speed                                        22Km/h

6 maximum gradient capacity                          30°

1 loading bucket capacity                            1m3

2 rated loading                                       1800KG

3 maximum articulated height of bucket               3400(mm)

4 bucket discharge height                              2795(mm)

5 bucket discharge distance                             1048(mm)

6 loading lift capacity                                  25KN

7 bucket hydraulic translation function                yes

8 bucket lift time                                      6.8s

9 bucket lower time                                    2.5s

10 bucket discharge time                                1.2s

11 maximum tractive force                                 39KN

12 maximum breakout force                              38KN

1 backacter bucket capacity                                 0.3m3

2 backacter discharge height                            3878(mm)

3 maximum digging depth                             4080(mm)

4 maximum digging radius                             5688(mm)

5 bucket slewing angle                                190°

6 bucket digging capacity                                46KN

7 bucket stick digging capacity                            31KN

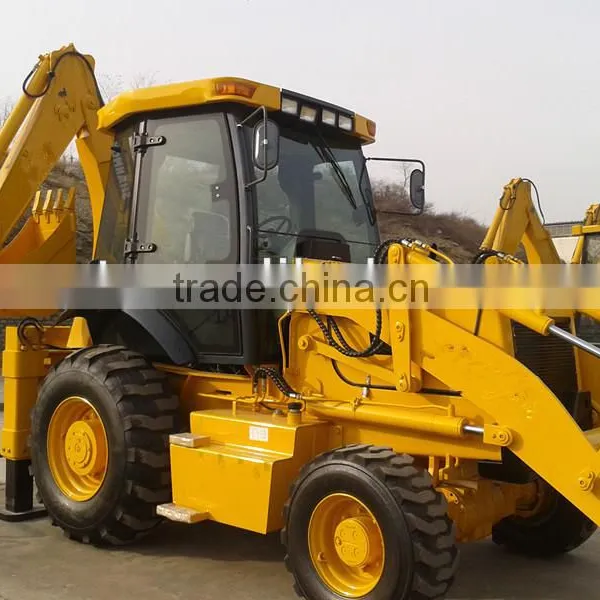

PHOTOS:

Photos:

Contacts: Linda zhu

Mobile:86-15253107795

QQ:2623561183

Skype:liuda01107
