GCL is a woven fabric like material primarily used for the lining of landfills, anti-seepage of artificial lake waterscape.Introduction

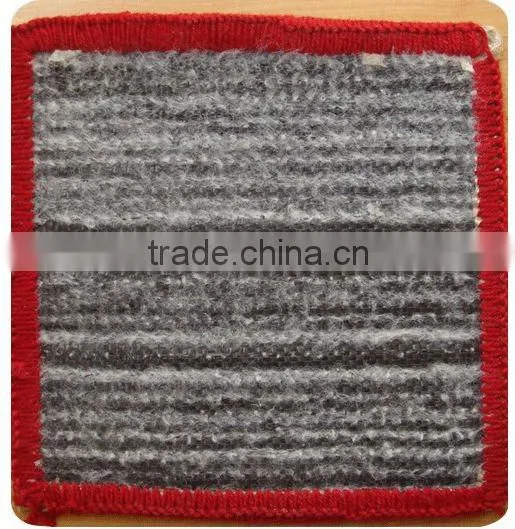

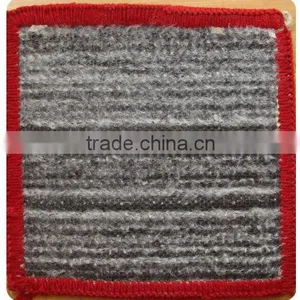

Needle-punched geosynthetic clay liner (GCL) is a woven fabric like material primarily used for the lining of landfills, anti-seepage of artificial lake waterscape, underground garage, roofing garden, water tank, oil depot and chemical pile yard. It is a kind of geomembrane and geosynthetic which incorporates a bentonite, which has a very low hydraulic conductivity. By needle embroidering method, it can form many small fiber spaces, which prevent bentonite particles from moving in one direction, and rubber head water layer with uniform high density is formed in the liner when meeting water. The resulting lower permeability slows the rate of seepage out of the landfill.
Feature
Good compaction, everlasting waterproof performance, good flexibility, easy to install, save construction time, insensitive to weather-changing, environment friendly.
Application
Used in subway, tunnel, artificial lake, refuse landfill, airport, irrigation works, bridges, seepage-proofing projects, etc.
Physical Performance:
No. |
Item |
Standard |
Results |
Conclusion |
1 |
GCLs Weight per unit area, g/m2 |
≥4000 |
4004 |
Pass |
2 |
Expansion index, mL/2g |
≥24 |
25 |
Pass |
3 |
Blue absorption, g/100g |
≥30 |
32 |
Pass |
4 |
Tensile strength, N/100mm |
≥600 |
813 |
Pass |
5 |
Elongation at max. loading, % |
≥10 |
10.3 |
Pass |
6 |
Peel Strength, N/100mm |
≥40 |
43 |
Pass |
7 |
Hydraulic conductivity, m/s |
≤5.0x10-11 |
4.1x10-11 |
Pass |
8 |
Hydrostatic pressve |
0.4Mpa, 1h No seepage |
Hydrostatic pressve |
0.4Mpa, 1h No seepage |
9 |
Filtration, mL |
≤18 |
16 |
Pass |
10 |
Bentonite durability, mL/2g |
≥20 |
21 |
Pass |
Remark:
Product performance can be customerized.
