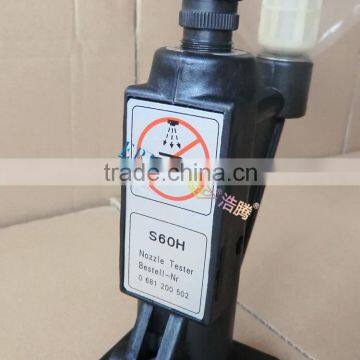

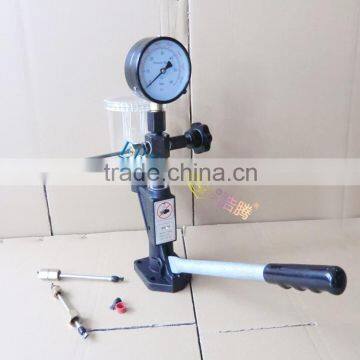

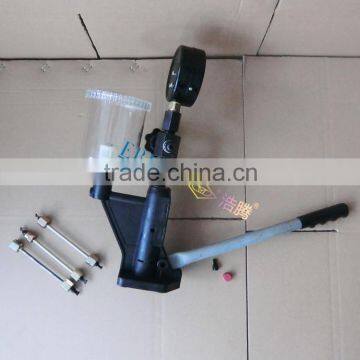

fuel injection diagnostic tool calibrate electronic injectors S60H
- 1000 Box / Boxes per Month
- tianjin lianyungang shanghai qingdao
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Type: | Other, Diesel Fuel Injector Validator | Size: | Standard | Car Make: | diesel engine |
OE NO.: | Common Rail Nozzle Validator | Place of Origin: | Henan, China | Brand Name: | DYD |
Model Number: | fuel injection diagnostic tool | Warranty: | 6 Months |
Product Description
Hot sale common rail diesel injector nozzle tester
Hot sale common rail diesel injector nozzle tester
Common Rail Injector Tester Specifications
Product Details | |
Type: | Injector Nozzle Tester/Validator |
Model No.: | At Type |

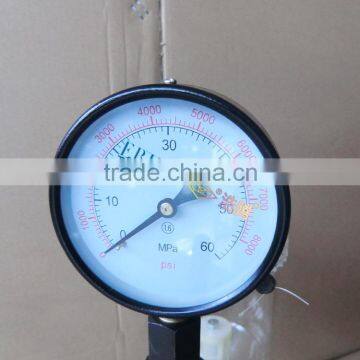

Pressure Gauge: | 0-60Mpa or 0-600Bar |
Function: | To adjust injection nozzle opening pressure and carry out leakage, spray pattern and chatter characteristic tests |
Usage 1: | This tester only can test un-common-rail nozzle or injector working performance |
Usage 2: | If need test common-rail nozzle or injector, the tester must work with common rail Injector tester together |
Application: | Diesel Injector Repair Tools |
Advantage: | Durable, Light, easy to operate |
Brand Name: | DYD or Neutral |
Material: | Iron, Plastic |
Color: | Blue |
Net weight: | 5.00Kgs/Set |
Gross weight: | 5.85Kgs/Set |
MOQ: | 1 Set |
Carton Size: | 42(cm)*19(cm)*24(cm) |
Packaging Details: | 1set/carton |
Warranty: | 6 months |
Shipping Way: | DHL, FedEx, UPS, TNT, EMS, ARAMEX, By Air, By Sea |
Delivery Time: | About 2 working days after receiving payment |
Payment Terms: | T/T, Western Union, MoneyGram, PayPal |
Current Export Market: | South/North America, Europe, Mid East, Africa, Asia, Australia |
diesel common rail tester Techniacal parameters
1. Maximum test pressure: 32Mpa
2. The Detector of High Pressure Common Rail Fuel Injector, HaoTeng AT Type
3. The range of pulse width: 100-3000Us
4. The range of Frequency: 1-30Hz
5. Range of Counter: 1-3000
Options of fuel injector brand:
1. Range of Pressure Gauge: 0-60Mpa
2. Operating Voltage: 220V
3. Total weight: about 50Kg
4. Contour dimension: L470×W380×H720(mm)
5. AT Type: 470×380×720
diesel common rail tester picture
Diesel Common Rail Tester Details pictures
Diesel common rail tester Preparation before use:
1.Fix the detector on the working table steadily by using installation hole under the board.
2.The working environment must be clean, and the operator should wash hands before testing.
3. Put diesel of No zero or Ten that must be precipitated over 48 hours into the tank via the filter.
If the diesel does not conform to the requirements, it will be banned to use for testing.
4.Set up the oil injection parameters via the reference of operating manual of the high pressure
common rail injector control instrument as reserve.
Other Type diesel injector tester / Nozzle calibration tester
Piezo Injector Tester
Full-Automatic diesel injector tester bench
Control Valve payment & ShippingTerms
1. Sample order is acceptable
2. Delivery: By DHL, FEDEX, TNT, UPS, EMS, ARAMEX, By Air or By Sea
3. Payment terms: Western Union, Moneygram, T/T, Paypal
4. Delivery time: Stocks goods within 2 days; out of stock goods with 7 working days.
Large order depends on production plan and will be arranged as soon as possible.
5. We will ship all items within 1-3 working days upon receipt of payment,
Our goal is: ship it as fast as we can.
