Factory Price on Sale Logo Signs Marking Industry G Code Engraving Machine

standard fumigation wooden case

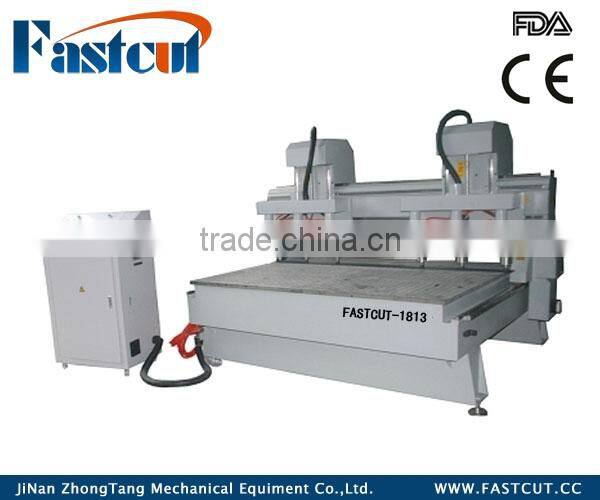

     Factory price on sale logo signs marking industry G code engraving machine FASTCUT-1813-6

Applications:

    Advertisement engraving, advertisement cutting, stone processing cutting, Cu and Al molding cutting, mold manufacturing cutting, wood processing cutting, wood door manufacturing cutting, craft manufacturing cutting, light box cutting, building mold cutting, indoor decoration cutting, wave board processing cutting, light equipment, mold processing cutting, sign and mark manufacturing cutting, acryl board processing cutting, stamp cutting.

 Parameters:

1) Machine body: whole cast iron

2) Guideway: XYZ-axis use linear guideway

3) Driving mode: Rack gear

4) Work dimensions: 1300mm x 1800mm (300mm*6) x 80mm

5) Body dimensions: 1700mm x 2500mm x 1650mm (with bracket)

6) Z-axis working area: 80mm (or 150mm)

7) Max. Feeding height: 120mm or bigger

8) Cut thickness of material: ≤40mm

9) Max. Speed: 25000mm/min

10) Working speed: 0 - 8000mm/min

11) Mechanical precision: 0.01mm

12) Software: type 3 software, Artcut software, Artcam software

13) Max. Power consumption: 3kW

14) Power source: AC220/50Hz (or 110v/60HZ)

15) Driver type: stepper motor (XZ-85BYG, Y-axis use two 85BYG motors)

16) Memory: without or (DSP)

17) Spindle: 2.2kW (100mm) variable speed, water cooled motor (3kW or bigger)

18) Spindle speed: 0 - 24,000rpm

19 ) Blade diameter:3.175mm, 4mm, 6mm (or 8mm, 10mm, 12mm, 12.7mm)

20) Control system: (NCSTUDIO) or DSP (USB interface)

21) Command: G code, u00, mmg, plt

22) Running circumstance temperature: 0 - 45°C

23) Relative humidity: 30% - 75%

24) Pack dimensions: 1750 x 3000 x 1750mm

25) Net weight: 1000kg (with bracket)

26) Gross weight: 1200kg

Option: Rotary axis, vacuum table,dust collector, or bigger spindle .
Different working size:
600X800mm/600X1500mm/900X1500mm/1200x1200mm/1200x1500mm/1200x1800mm/1200x2400mm or other sizes according to customers’need.

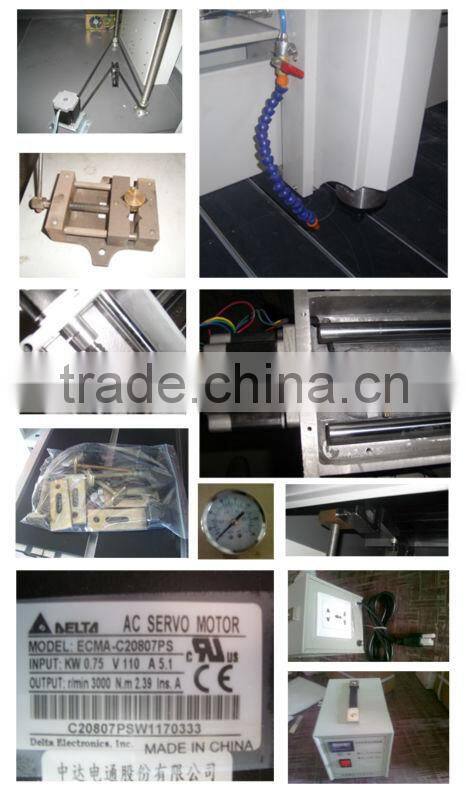

Parts:

Samples:

 Company Advantages:

1, Firstclass factory meets international production plant's standard, ten years' manufacture and export experiences  .
2, Own most advanced domestic cnc machining production equipments.
3,20 professional highend R&D technical staff, and can provide multiple languages and real-time online technical support .
4,5-9 days machine production time, one year warranty and lifetime free maintenance
5,OEM and ODM services avaliable.
6,Same quality, our price and service are better;Same price, our quality and service are better
7, with CE, FDA, SGS, ISO9000 certifications.

Guarantee and After-sale Service:

   1.One year guarantee for whole machine and six months for spindle

   2.24 hours technical support by e-mail

   3.Calling and door-to-door service

   4.Use-friendly software and detailed specification

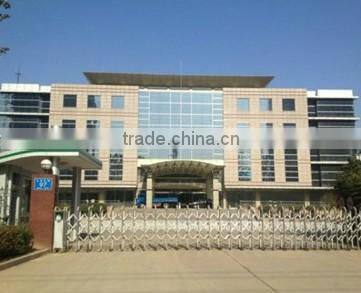

Factory show:

 product procedure :

In order to help you choose the best suitable machine,can you reply my questions below, thank you.

Q1: What about your material , wood or acrylic or ?

Q2: The size of your material , length, width and thickness?

Q3: Do you want to cut or engrave your material ? Or both cut&engrave ?

Q4: What machining effect do you want to get ? It is better for me if you can send sample pictures to me .

Q5: The machine chooses 220v or 110v or ?

Q6: What is the nearest sea port to you?
