Long Life High Strength Laser Marking System FASTCUT50

Long life high strength laser marking system FASTCUT50

Application Industry:

 Mark on most of metal material. Electronic components, IC, electrical appliances, mobile phones, hardware, tools, precision instruments, eye glass frames, clocks and watches, motor accessories.

Applicable Materials:

 Plastic buttons, building materials, drug and food packaging, medical instruments, PVC pipe and so on.

General-purpose model, Laser unit, power supply and workstation all-in-one structure, highly efficient in laser marking, especially good at metal surface marking.

Product Features:

1. The Metal Laser Marking Machine is the third generation laser marker system developed by our company with the most advanced technology in the world. It uses optical fiber laser to output laser and realizes marking function through high speed scanning galvanometer system for Stainless Laser Marking Machine.
2. The optical fiber laser marker features high electro optic conversion efficiency, air cooling, small size, high quality output beam, high reliability, long service life and energy saving. Fiber Laser Marking Machine can carve metal materials and certain nonmetal materials
3. Fiber Laser Marking Machine is widely used in fields that have high requirement on depth, smoothness and fine, such as stainless steel mobile phone overlay, clock and watch, mould, IC, mobile phone keypad, etc. Bit map marking can carve beautiful pictures on the surfaces of metal and plastic, and the marking speed is 3-12 times of the speed of traditional first generation lamp pump marker and second generation semiconductor marker.

Specifications:

Marking scope: 100mm x100mm

Whole machine size:1,390x 1,110 x1,200mm

Marking depth:0.3mm

Min. line width:0.015mm

Wavelength:1064mm

Max.laser average power:50W

Beam quality m2: <6

Repeat frequency: 30KHz

Cooling style: Water cooling

Electrical source: AC220±10% 50Hz, 15A

consumption power:2.5kw

Optical system: 40 x 1,110 x 1,200mm

Software:Win XP + EZCAD marker system

Operating temperature: 15°C—35°C

Weight:250kg

The sample of the laser marking system

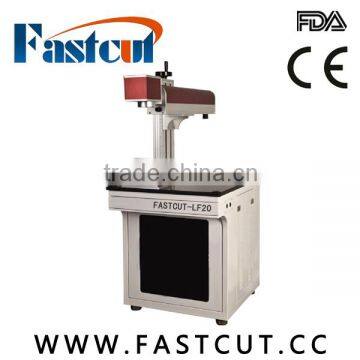

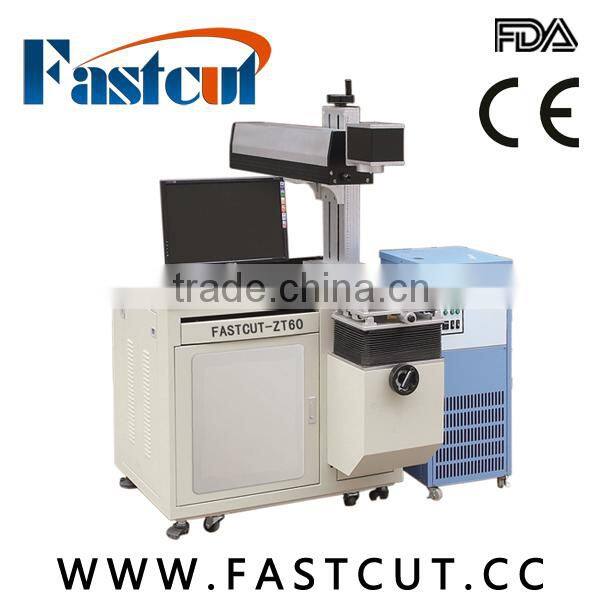

The picture of the laser marking system

Factory Show:

Product Certification:

Company Advantages:

1, First-class factory meets international production plant's standard, ten years' manufacture and export experiences
2, Own most advanced domestic cnc machining production equipments
3,20 professional high-end R&D technical staff, and can provide multiple languages and real-time online technical support
4,5-9 days machine production time, one year warranty and lifetime free maintenance
5,OEM and ODM services avaliable
6,Same quality, our price and service are better;Same price, our quality and service are better
7, with CE, FDA, SGS, ISO9000 certifications

Production Procedure

FAQ

In order to help you choose the best suitable machine, please try to reply my questions below, thanks
Q1: What about your material , wood or acrylic or ?
Q2: The size of your mateiral , length ? Width and thickness?
Q3: Do you want to cut or engrave your material ? Or both cut&engrave ?
Q4: What machining effection do you want to get ? It is better you can send sample pictures to me .

Q5: The machine choose 220v or 110v or ?

Q6 , what about your nearest sea port?
