Drill Bit Diameter Measuring Gauge

Drill Bit Diameter Measuring Gauge photo-1
US$ 4,000 - 4,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Mercury-tech
Model Number:
LDM-20S
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name Mercury-tech
Model Number LDM-20S

Specifications

laser scan measuring method

Drill Diameter measuring Detector(Laser gauge) Mainly used in drill bits and pieces of metal processing diameter measurements.



Drill Diameter measuring Detector (Laser gauge) is the high-accuracy measuring device that uses the laser scan to carry on Non-contact the on-line measure. Mainly used in drill bits and pieces of metal processing diameter measurements.

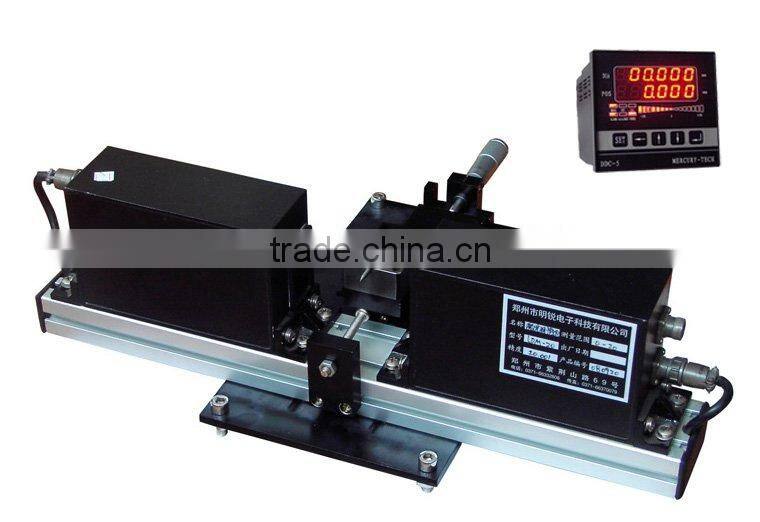

 Drill bit diameter measuring gauge

Brand: Mercury-tech

Model: LDM20DR

Measurement Range :0.1-20mm

Measurement accuracy: 0.0005mm

Measurement resolution: 0.0001mm

Repeatability: 0.001mm

The performance indicators:

Measurement: Laser scanning

Laser: Visible red semiconductor laser

Laser output power: <2mW

Operating voltage: ~ 220V ± 15% 50 - 60Hz

Operating temperature: -10 ~ 40 °C

Humidity: <85% RH

Work mode: continuous

Power consumption: <30W

Dimensions: 500mm (length) X300mm (W) X120 (H)



 Drill bit diameter measuring gauge

Remote Display Controller (Model: DDC-5), can quickly display diameter and output tolerance alarm.

Remote Display Controller (Model:DDC-5)

1. It be used to remote display and control.

2. It Can control the speed of DC motors, VVVF motor(extruder or the tractor).

3. It's suitbale for Laboratory use.

4. It will alarm,when the diameter go beyond the the set tolerance.

5. With RS485 It can connect to PLC industry controlling computer.

Dimensions: 100mm×100mm×120mm (Model:DDC-5)

Installation hole size: 90mm×90mm (Model:DDC-5)
