China Shandong Jinan wave boards sandstones corian ABS auto tool change system cnc milling

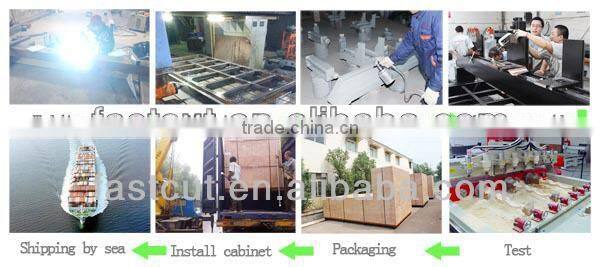

Fumigation wooden boxes for exporting

Specifications

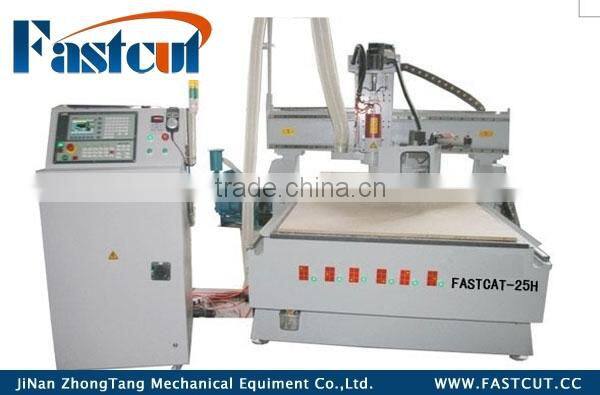

       China Shandong Jinan wave boards sandstones corian ABS ATC knife library tool stores cnc router engraver

  Furniture decoration, Musical Instruments industry, wooden crafts industry, large area plank plane sculpture, solid wood furniture, annatto furniture, real wood art mural, density board paint-free door, Wood composite door, wardrobe, cabinets, beside cupboard, screen engraving and so on.

1. Gantry machining center is specially designed for middle and-high-end clients with higher automation degree requirements. It’s suitable for high-volume, 24-hour processing non-metallic, copper, aluminum and aluminum extrusion profiles and so on.

2. High stability: Industrial production models, heavy-duty all-steel structure welding, tempering vector effect processing, solid and uneasy deformation .

3. High-quality parts: Taiwan control system, high-precision spindle ceramic bearing , low noise, and long service life. Imported linear guide; German ball screw, big loading capacity, high precision for cutting; servo system, high pulling torque has improved the safety of systems engineering .

4. Modular structure design: elect various processing conversion head configuration, can carry on carving, engraving, cutting and milling work .

5. Easy and safe modes of operation: Advanced documents pre-processing functions ensure running speed and accuracy .

6. Row automatic tool changing system: 8 tools’ magazine capacity.

7. High adhesion vacuum suction device .

8. Software Compatibility: compatible with the processing code generated by a variety of CAD/CAM design software such as type3/artcam/castmate/Wentai .

9. Improving oiling lubrication system extends the machine’s service life.

1) Machine body: Weld square steel tube structure

2) Guideway:XYZ-axis use linear rail

3) Driving mode:Rack

4) Work dimensions: 1300mm*2500mm*200mm

5) Body dimensions: 2300mm*3300mm*1650mm (with bracket)

6) Z-axis working area: 200mm

7) Max. Feeding height: 200mm or bigger

8) Cut thickness of material: ≤40mm

9) Max. Speed: 25,000mm/min

10) Working speed: 0 - 8,000mm/min

11) Mechanical precision: 0.01mm

12) Software: type 3 software, Artcut software, Artcam software

13) Max. Power consumption: 3kW

14) Power source: AC 220/50/60Hz (or 110v/60HZ)

15) Driver type: stepper motor(XZ-85BYG, Y-axis use two 85BYG motors)

16) Memory: without or (DSP)

17) Spindle: 3KW water-cooled spindle

18) Spindle speed: 0 - 24,000rpm/min

19) Blade diameter:3.175mm, 4mm,6mm (or 8mm,10mm,12mm, 12.7mm)

20) Control system: DSP (USB interface)

21) Command: G code, u00, mmg, plt

22) Running circumstance temperature: 0 - 45°C

23) Relative humidity: 30% - 75%

1, First-class factory meets international production plant's standard, ten years' manufacture and export experiences

2, Own most advanced domestic cnc machining production equipments

3,20 professional high-end R&D technical staff, and can provide multiple languages and real-time online technical support

4,5-9 days machine production time, one year warranty and lifetime free maintenance

5,OEM and ODM services avaliable

6,Same quality, our price and service are better;Same price, our quality and service are better

7, with CE, FDA, SGS, ISO9000 certifications

In order to help you choose the best suitable machine, please try to reply my questions below, thanks
Q1: What about your material , wood or acrylic or ?
Q2: The size of your mateiral , length ? Width and thickness?
Q3: Do you want to cut or engrave your material ? Or both cut&engrave ?
Q4: What machining effection do you want to get ? It is better you can send sample pictures to me .

Q5: The machine choose 220v or 110v or ?

Q6 : what about your nearest sea port?
