Specifications
atc vertical drilling bits1.3kw spiindle
2. linear guideway
3.fast spee

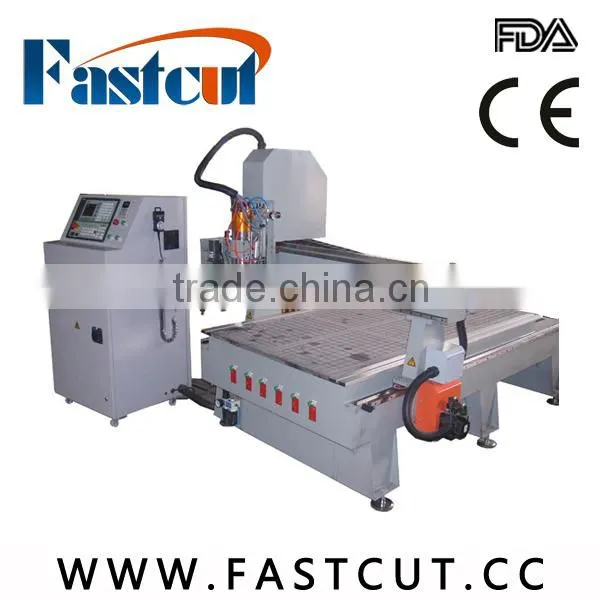

atc vertical drilling bits
Applications:
Furniture decoration, Musical Instruments industry, wooden crafts industry, large area plank plane sculpture, solid wood furniture, annatto furniture, real wood art mural, density board paint-free door, Wood composite door, wardrobe, cabinets, beside cupboard, screen engraving and so on.
1.3kw spindle
2. linear guideway
3.fast speed
4.stepper mot
Features: optional(vacuum table and dust collector)
1) Machine body: Weld square steel tube structure
2) Guideway:XYZ-axis use linear rail
3) Driving mode:Rack
4) Work dimensions: 1300mmx2500mmx200mm
5) Body dimensions: 2,300mm x 3300mm x 1,650mm (with bracket)
6) Z-axis working area: 200mm
7) Max. Feeding height: 200mm or bigger
8) Cut thickness of material: ≤40mm
9) Max. Speed: 25,000mm/min
10) Working speed: 0 - 8,000mm/min
11) Mechanical precision: 0.01mm
12) Software: type 3 software, Artcut software, Artcam software
13) Max. Power consumption: 3kW
14) Power source: AC 220/50/60Hz (or 110v/60HZ)
15) Driver type: stepper motor(XZ-85BYG, Y-axis use two 85BYG motors)
16) Memory: without or (DSP)
17) Spindle: 3KW water-cooled spindle
18) Spindle speed: 0 - 24,000rpm/min
19) Blade diameter:3.175mm, 4mm,6mm (or 8mm,10mm,12mm, 12.7mm)
20) Control system: DSP (USB interface)
21) Command: G code, u00, mmg, plt
22) Running circumstance temperature: 0 - 45°C
23) Relative humidity: 30% - 75%
Packing:
Pack dimensions: 2,350 x 3800 x 1,750mm
Net weight: 1300kg (with bracket)
Gross weight: 1400kg
machine smple
machine parts
Product Certification
Company Advantages
1, First-class factory meets international production plant's standard, ten years' manufacture and export experiences
2, Own most advanced domestic cnc machining production equipments
3,20 professional high-end R&D technical staff, and can provide multiple languages and real-time online technical support
4,5-9 days machine production time, one year warranty and lifetime free maintenance
5,OEM and ODM services avaliable
6,Same quality, our price and service are better;Same price, our quality and service are better
7, with CE, FDA, SGS, ISO9000 certifications
work flow
contact
FAQ
In order to help you choose the best suitable machine, please try to reply my questions below, thanks
Q1: What about your material , wood or acrylic or ?
Q2: The size of your mateiral , length ? Width and thickness?
Q3: Do you want to cut or engrave your material ? Or both cut&engrave ?
Q4: What machining effection do you want to get ? It is better you can send sample pictures to me .
Q5: The machine choose 220v or 110v or ? 6 , what about your nearest sea port
any question you can sene me email amy time is ok
