Bags & luggage Handle Fatigue Tester
- 300 Set / Sets per Month
- Shenzhen port
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Yuelian | Model Number: | YL-3306 |
Power: | Other, Electronic, 1 phase, 220V/50HZ | Usage: | Universal Testing Machine |
Product Description

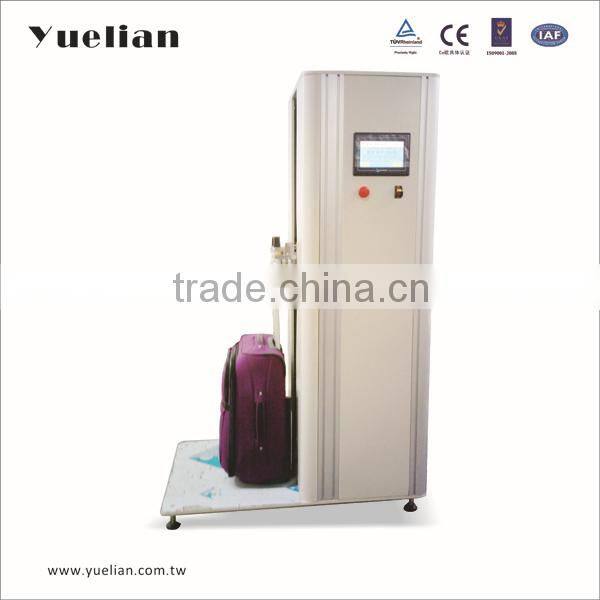

Bags&luggage Handle Fatigue Tester
It will be stretched in the test,to test gap,looseness,connecting rod failure,deformation,etc.
Design Standard: QB/T 1586.3-2010
Specification:
Test Stroke | 20~100cm, adjustable |
Test Location | 4 point sensor location |
Stretch Speed | 0~30cm/sec, adjustable |
Compression Speed | 0~30cm/sec, adjustable |
Test Frequency | LCD electron 99999 times setting, Korea Autonics |
Test Dynamic | SMC rodless cylinder |
Specimen Height | Max. height 200cm |
Test Function | Fatigue, lift test, or fatigue, lift and key life synchronous test |
Accessory Equipment | Luggage fixed clamper |
Usage Pressure | 5~8KG/cm2 |
Machine Dimension | 120x120x210cm |
Machine Weight | 150kg |
Power | 1 phase, 220V/50HZ |
Certificate:
Exhibition:

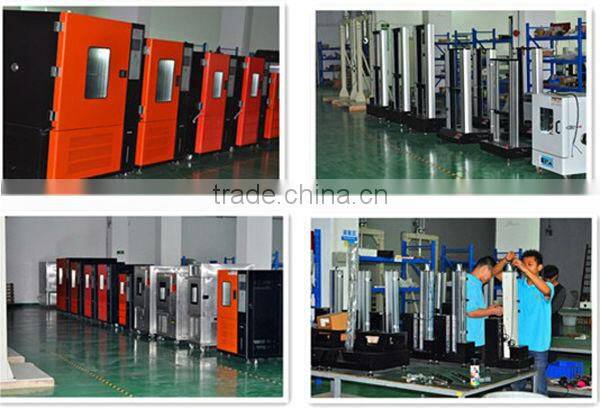

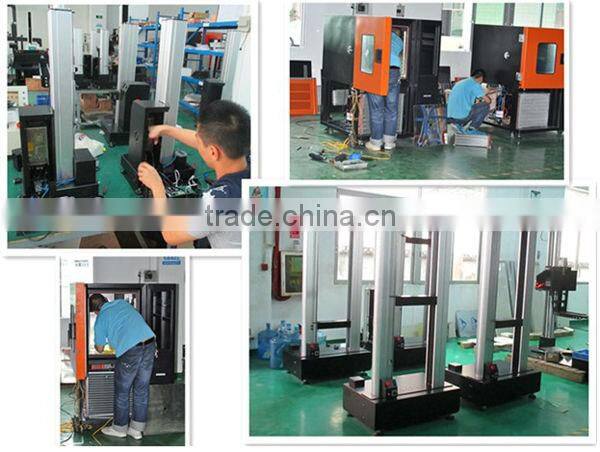

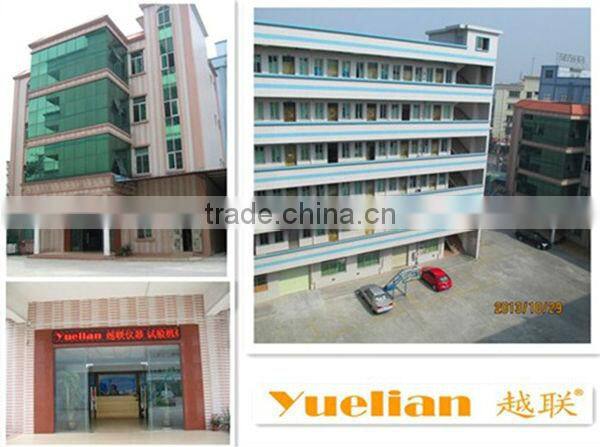

Factory:
