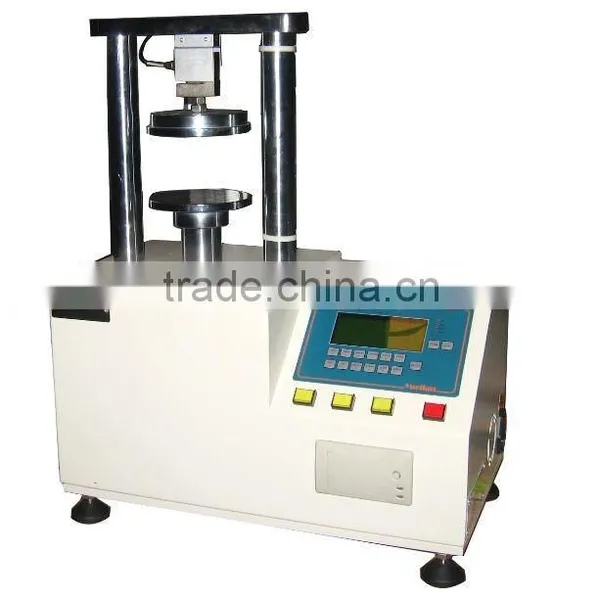

Micro-Computer Ring Compression Tester YL-6600
Each performance parameter and technical indicator is accord with multiple standard codes.
Tester is available for the following testing equipped with appropriate device.
To test ring pressure intensity of paperboard, equipped with ring pressure test center tray and ring pressure delicated sampler.
To test side pressure intensity of corrugated paperboard, equipped with side pressure ( adhesion) specimen sampler and assisted guide block.
To test adhesion(peeling) intensity of corrugated paperboard, equipped with peeling strength test rack.
To test flat pressure intensity of corrugated paperboard, equipped with flat pressure specimen sampler.
To test lab fluted grain, equipped with grainer and assisted implement.
Optional: ECT cutter, FCT cutter, RCT cutter;
Specification:
Testing Range |
3000N |
Force Resolution |
1/20,000 |
Indication Accuracy |
Indication error ±1%, indication mobility 1% |
Test Speed |
12.5±2.5mm/min |
Parallelism of Upper&Lower Platen |
0.05mm |
Max Distance between Upper&Lower Platen |
70mm |
Power |
1 phase, AC 220V,1.5A |
