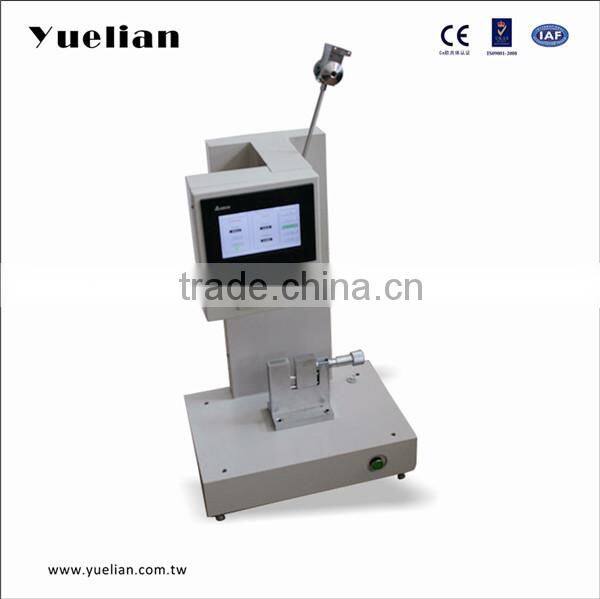

YL-3319E Touch screen charpy impact testing machine
YL-3319E Touch Screen charpy impact testing machine is used for hard plastic, reinforced nylon, GRP, china, cast stone, electrical insulation, etc. no-metal materials impelling strength test. It is the ideally test equipment of chemical industry, tech-research center, educational, quality test department.
The YL-3319E Touch screen Izod impact tester is comply with the standards of IS0180,GB/T 1843, GB/T 2611,JB/T 876.
Features:
YL-3319E Touch screen charpy impact testing machine with English and Chinese language version. Touch screen display operation, PLC modular control, memory and calculating the average impact strength of 5pcs specimen data. And realize the double print test report in both Chinese and English, easy operation, stable performance.
A impact pendulum energy can be choose in random of 1J,2.75J,5.5J,11J,22J.
1. Technical parameter:
Model | YL-3319E-5.5 Series | YL-3319E-22 Series |
Impact speed | 3.5 m/s | |
Pendulum energy | 1J,2.75J,5.5J | 11J,22J |
Distance of center of percussion | 322mm | |
Pendulum angle | 160° | |
Cutter edge radius | R=0.8±0.2mm | |
Distance of the blade to the jaw | 22±0.2mm | |
Impact blade angle | 75° | |
Lose of pendulum energy | 1J:2%;2.75J,5.5J:1% | 0.5% |
| ||
Delivery time | 15 days | |
2,Operating temperature:15°C-35°C
3,Machine dimension:550mm×350mm×850mm
4,Voltage:AC220V ,50Hz
5,Machine net weight: 160kg
Performance:
YL-3319E Touch screen charpy impact testing machine with the functions of angle testing and reset, energy lose test and Automatic compensation. Automatic calculate the impact strength, printing test report in Chinese and English, high precision test, fast specimen test, etc.
