TE Series Constant Temperature Humidity Tester

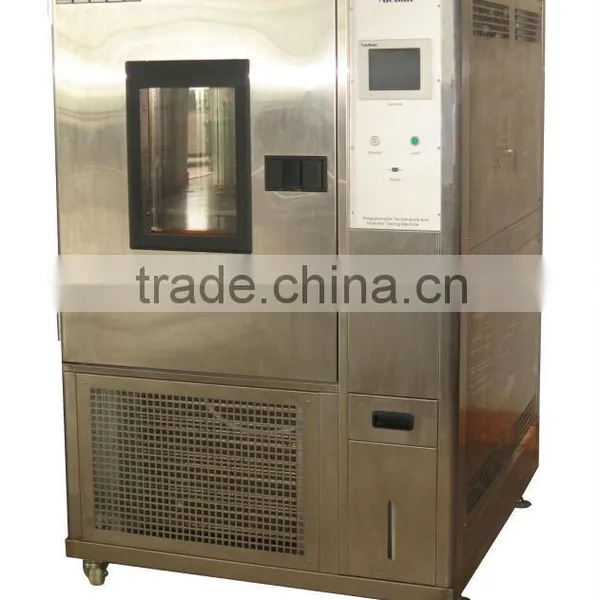

TE Series Constant Temperature Humidity Tester thumbnail-1

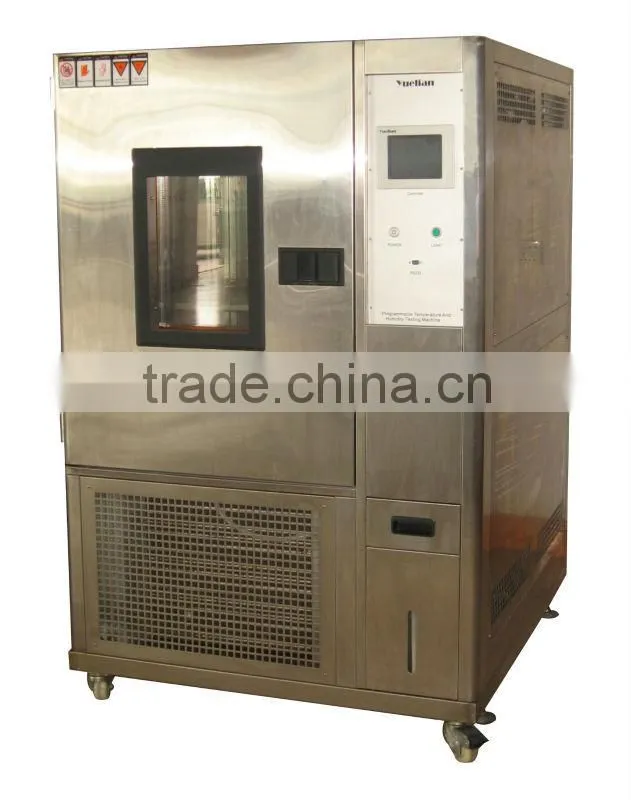

TE Series Constant Temperature Humidity Tester photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
yuelian
Model Number:
TE-225-4E
Contact Supplier Request Quote Chat Now
Guangdong Yuelian Instruments Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name yuelian
Model Number TE-225-4E
Power Electronic
Usage Other, Economical Programmable Temperature and Humidity Test Chamber

TE Series constant temperature humidity tester

Product introduction

Purpose:

The programmable temperature and humidity test chamber, known as environmental chamber, is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance. It is suitable for the industries of electron, electrical equipment, vehicle, metal, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.

Feature:

  • 1.Appearance: high-texture appearance, arc shape body, and matte fringe processing of surface, planar non-reactive handles, easy operation, safe and reliable.
  • 2.View window: rectangle complex layers of glass view window can be used for observation specimen when doing testing.  With anti-sweat heater unit of the window can prevent water vapor condensing water droplets, and high-brightness PL fluorescent lamp keeps box lighting.
  • 3.Water supply system: with external connected water supply system, convenient to humidification and water supply, and  automatic recycling and use.
  • 4.Compressor: The compressor circulation system is made in China. it is more effective to remove condenser tube and capillary lubricants, and it adopts environmental refrigerants (R404,A).
  • 5.Control Mode: adopt smart PID+SSR/SCR forward and inverse two-way synchronization output, containing advanced slope control logic.
  • 6.Controller: The controller, with multi-stage program editing temperature and humidity, adopts touch screen made in China.
  • 7.System Capacity: can login multi-section, sections can be divided freely, program can be interrelated freely.
  • 8.Circulation Setting: can operate multi-circulation.
  • 9.Safety Detector: 15 items of full-function system detects, ensure the safety of machine operation, and can automatic display failure time, items and resolved method
Model TE-80 TE-150 TE-225 TE-408 TE-800
Interior Dimension (W×H×D)CM 40×50×40 50×60×50 50×75×60 60×85×80 100×100×80
Exterior Dimension (W×H×D)CM 93×131×81 103×141×91 108×162×112 117×172×132 160×187×132
Capacity(L) 80 150 225 408 800
Heating Up Speed About 3°C/min
Cooling Down Speed About 1°C/min
Temp. Range 0~150°C, -20~150°C, -40~150°C
Temp. Uniformity ±1°C
Humidity Uniformity ±2.5%
Temp. Stability ±0.1°C
Humidity Stability ±2.5%RH
Humidity Range 20%~98%RH
Programmable Mode Use high stability platinum temperature resistant materials, LCD Chinese & English touch-screen
Heating System SUS#304, stainless steel heater
Humidification System Surface evaporative type, enclose protection of hydropenia, interrupt of power supply and superheat for humidifier.
Dehumidification System Frozen & latent heat dehumidification method
Cooling System Adopt unitary type full-closed air-cool refrigeration system
Water Supply System Circulating water supply system, together with hydropenia warning device
Inner & Outer Material SUS#304, stainless steel of whole machine
Insulation Material Rock wool and rigid PU foam thermal insulation
Safety Device Breaker, compressor overload, ultra-temperature, power failure, temperature limit protection and fault alarm
Temp. & Humidity Regulation Balance adjustment temperature & humidity method
Standard Accessories Automatic demist glass window, 2 sets of adjustable upper and lower interlayer, test holes, chamber lamp, mobile wheels
Optional Accessories Grapher
Power AC220V/380V±10%,50/60Hz
Standard GB, ISO, ASTM, UL, CEN......
selection reference of the machine TE-150-2E: “2”means the lowest temperature to -20 degree C , “E”shows the model of TEMI 580 controller



TE Series Constant Temperature Humidity Tester





The appearance of the controller:

TE Series Constant Temperature Humidity Tester

The purpose of the controller:

This product measures and controls the ambient temperature and humidity by using the computer technology, and the advanced PID control methods.

The feature of the controller:

  • 1.The display and control interface is clear and intuitive; touch-selection menu, easy to operation, stable and reliable.
  • 2.Flexible Program control , cost-effective.

The technical indicator of the controller:

  • 1.Five-inch Color touch screen
  • 2.Two kinds of control mode(fixed value/programmable)
  • 3.Sensor type: PT100 Sensor(electronic sensors are optional)
  • 4.Alarm signal: Four DI external fault alarm
  • 5.Temperature measuring range : -90.00°C--200.00°C, (-90.00°C—300.00°Ccan be customized); error: ±0.2°C
  • 6.Humidity measuring range: 1.0% - 100% RH, error: ±1%RH (this model can increase the humidity control)
  • 7.Interface language type: Chinese/English
  • 8.With Chinese character input function
  • 9.Multiple signal combined relay output, the signal is available for logical operation.(NOT,AND,OR,NOR,XOR), referred to as PLC Programming Capability
  • 10.Programmable edit: can edit ten groups of programs,and every program can max edit twelve segments

The specification of the controller:

Exterior Dimension (H*W*D) 180×120×100(mm)
Mounting-hole Size (H*D) 170×110(mm)
TFT Resolution 480×272
