Salt Spray Tester / Compound Salt Spray Testing Machine

Salt Spray Tester / Compound Salt Spray Testing Machine thumbnail-1
Salt Spray Tester / Compound Salt Spray Testing Machine photo-1
US$ 2,000 - 50,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
yuelian
Model Number:
YL-2208
Contact Supplier Request Quote Chat Now
Guangdong Yuelian Instruments Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen; Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name yuelian
Model Number YL-2208
Power Electronic
Usage Other, Test chamber

Salt Spray Tester / Compound Salt Spray Testing MachineSalt Spray Tester / Compound Salt Spray Testing MachineSalt Spray Tester / Compound Salt Spray Testing Machine  Salt Spray Tester/Compound salt spray testing machine(YL-2208NS)

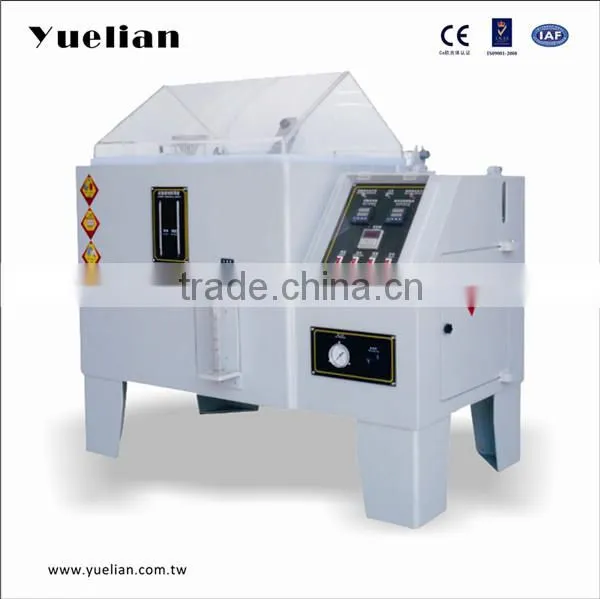

YL-2208 Salt Spray Tester

Product ID:YL-2208
Classification: Salt Spray Test Chamber
Brand:Yuelian

Product introduction



YL-2208 Salt Spray Tester

Materials used

1. Test chamber: use the PVC gray impact resistance plate (from Germany), 5mm in thickness;

2. Thermostat water tank: use the gray impact resistance plate of PVC (from Germany), 5mm in thickness and it is equipped with the auto water level controller to avoid the inconvenience to refill the water by manpower.

3. The upper cover of the test chamber: use the European transparent acrylic plate, 5mm in thickness;

4. The barrel for refilling the reagent: equipped with a built-in water level gauge. Use the gray impact resistance plate made of PVC,5mm in thickness, which looks as an integral whole with the machine stand.

5. The basket supporter inside the test chamber: use the gray PVC impact resistance plate, the test angle can be freely adjusted to 15º and 30º

  • 1.48 test pieces can be placed by the angle of 15 degree
  • 2.30 test pieces can be placed by the angle of 30 degree

Note:the size of the test pieces is 150×70mm(H×D)

6. The saturated air tank: made of stainless steel, 2mm in thickness and equipped with the auto water level controller to avoid the inconvenience to refill the water by manpower.

Application Temperature

Set the type according to the standards of CNS, JIS and ASTM:

  • 1. The test method of salt water.The test chamber: 35°C±1°C/ The saturated air barrel: 47°C±1°C
  • 2. The test method of corrosive resistant.The test chamber: 50°C±1°C/The saturated air barrel: 63°C±1°C

Spraying modes

  • 1. Conical disperser: It can adjust the spraying and make the reek and falling reek even.
  • 2. Nozzles(Taiwan): Glass nozzles. The accurate glass nozzles (self-made)

Note:volume of spraying: 1~2 mL/80CM2/1h(self-made)

Control system

Temperature control of test chamber 0~99.9°C with accuracy in 0.1°C(LED with 2 figures) PID automatic
1.calculator(Yangming, Taiwan): 1 pc
2.Safe temperature controller for liquid expansion in heating channel 0~110°C 2pcs.(made in West Europe)
3. The temperature controller of saturated air tank: 0~99.9°C with accuracy in 0.1°C.(LED with 2 figures), able, PID automatic calculator (Yangming, Taiwan): 1pc.
4.Time controller: ANLY AH5R-2   1pc.
5. Total timer: 0~9999.9 hr, RISESEN(made in Taiwan)  1pc.
6. The first stage pressure adjusting structure:

  • a).First pressure regulating valve with a set of pressure gauge(pre-adjust To 2~2.5kg/CM2)
  • b).Second pressure regulating valve: pressure regulating valve (made in Taiwan) 1/4"PT, pressure 0~4.0kg/ CM2, adjustable. (adjust the spraying pressure to 1.0kg CM2)
  • c).Pressure gauge: 2kg/ CM2(0.1kg/ CM2)     1pc

Safety devices

  • 1,Water level controller      1set
  • 2,State warning lamp        3pcs.
  • 3,Protection switch for over temperature 2 sets.

Accessories

  • 1,Bracket for 1 set(can carry the weight of test samples under 2kgs).
  • 2,500g Nacl reagent contained in 2 bottles(contained in 4 bottles for standard type)
  • 3,10kg barrel for salt water making    1pc.
  • 4,80cm2 standard collecting cup      1pc.(2pcs. for standard type)
  • 5, 50ML graduated cylinder          1pc.(2pcs. for standard type)
  • 6,The detailed operational manual and standard documentation.   1 copy
