Wedge Anchor Expansion Bolt or Through Bolt

Specification:

Steel Wedge Anchor
1.Material:carbon or stainless steel
2.Treatment:Zinc plated,HDG
3.Size:M6*40-M20*180
4.Thre Leg:15-100

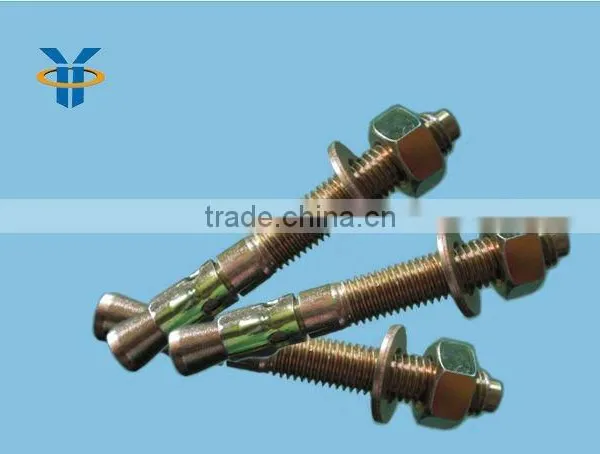

Steel Wedge Anchor/Through Bolt

1)A wedge anchor through bolt is a type of fastener used to attach a fixture to a solid base material (such as concrete).

2)The installed end of the anchor has a conical portion around which a metal clip is fastened.

3)When the anchor is set (usually through application of a tension load through torquing a nut) the cone pulls up through the clip and expands the clip against the side walls of the hole. This gives the anchor its resistance to tension.

4)These are for DIN type,we can also supply you UNC type.

 The company professionally produces all kinds of hardware fastening pieces for construction use. Annual output is over 3000 tons and products are exported to countries and areas of Europe,America, the Middle East and Southeast Asia.
