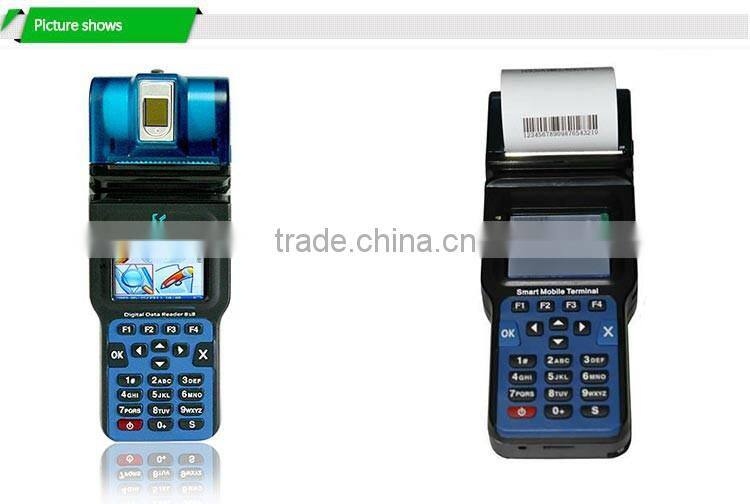

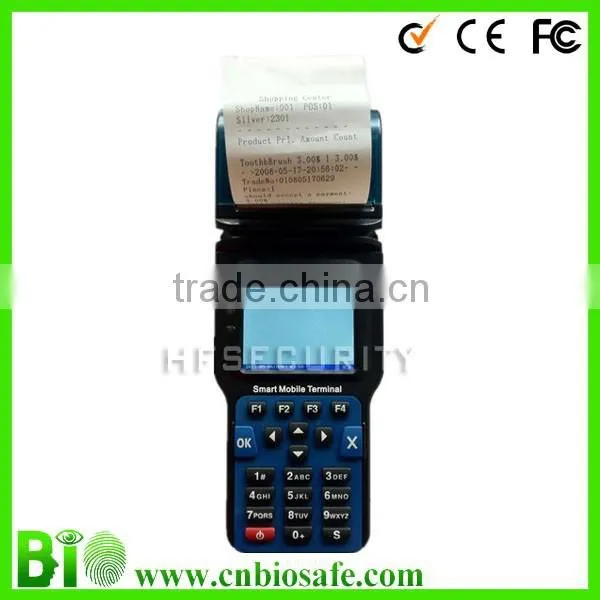

Product Name : Handheld Mobile POS Terminal with Windows CE OS HF-FH08
| Characters & Extending Functions |
1. Thermal printer: 382 dots/line; dot pitch: 8 dots/mm, 32 columns/line(12×24 dots); 60mm/s; paper width: 58mm; head life: 50km
2. Magcard reader: support triple track read; support ISO7811; high performance decoding-reads badly damaged cards; compensates for poor head mounting; high noise immunity; wide range of card swipe speeds-from 2 to 100 in/s
3. Support 1:1or 1:N spot fingerprint match mode.
4. (Optional) Support contact smart cards in accordance with ISO7816; One standard socket, four small sockets.
5. (Optional) Support contactless smart cards in accordance with ISO14443 type A/B, such as supporting various cards series, INSIDE, Legic Card and so on.
6. (Optional) Support tags in accordance with ISO15693, such as I-CODE2 series, INSIDE series and TI series.
7. (Optional) Support TF card: small size(11×15×1mm), pluggable, maximum 4G bytes, support FAT32.
8. (Optional) Ethernet: compiles with IEEE 802.3/IEEE 802.3u/IEEE 802.3ab; 10/100M transceiver; support RJ45 socket; auto MDI/MDIX; 500—900KB/s; support TCP/IP protocol stack
9. (Optional) Support GPRS: working frequency: EGSM: 900/1800MHZ; GSM: 850/190MHZ; support TCP/IP: support SMS.
10. (Optional) Support Wi-Fi: support 802.11b; operating Frequency: 2.400 GHz~2.484GHz; data rate up to 230K bps; Wi-Fi security using 64/128 WEP; network protocols supported: ARP,DHCP client, FTP client, ICMP, IP, POP3, SMTP client, TCP, UDP
11. (Optional) Support Bluetooth: 2.40 GHz~2.48GHz; Bluetooth Spec. v2.0 Compliant + EDR; class 2 type output power; 10 meter; authentication and data encryption; support Piconet, up to 7 slaves
12. (Optional) Support Embedded Modem: support switching between synchronous and asynchronous mode; support V.22FastConnect and Bell212AFastConnect (1200bps) SDLC; support V.29 FastPOS SDLC; support connection with China UnionPay, Visa, Master, etc.
13. (Optional) Support ID card such as EM.
14. (Optional) Support CDMA, support GPS
| Combination Application |
Application 1:
1. Thermal printer
2. Magcard reader
3. GPRS module
4. PSAM card authentication
Application 2:
1. Thermal printer
2. Fingerprint authentication
3. GPRS module
Application 3:
1. Thermal printer
2. Fingerprint authentication
3. GPRS module
4. Contactless tag reader
| Specification |
Processor | 32-bit CPU |
Memory | Flash Memory: 2MB~8MB, Nand Flash:32MB~8GB; SDRAM: 8MB/32MB, EEPRO M:2KB~32KB |
Display | 2.4 inch, 320×240 TFT, 20×15 Chinese characters |
Communication Interface | One USB device interface, one RS232 interface, one infrared interface |
Keypad | 22 keys |
Battery system | 2000mAH recharge lithium battery, with a button battery to keep the clock |
Buzzer | Yes |
LED | 3Leds |
Working Temperature | 0°C~50°C |
Relatively Humidity | 45%RH~85%RH(no coagulate dew) |
Power | Average <0.5W,max<3.5W |
| Company Profile |
Shenzhen BIO I/E, has specialized in biometric product and solution. As our logo indicates, B is for face recognition; I for iris verification and O for fingerprint identification. As long as it refers to biometric identification, such as, identify driver if he holds his own driving license; identify fingerprint as password, etc. we are confident to offer you most satisfactory solution in shortest time,based on our past successful experience in more than decade. You are also warmly invited to visit us, for discuss face to face. |
Advantage: |
1. We have professional technician team to support any of your questions on technician aspect |
If this thermal printer handheld terminal can't meet your needs, please contact our online service, and other suitable products will be recommended for you.
