Soybean/ttonseeds /sunflower Solvent Extraction /oil Leaching Machinery Professional Manufacturer

Introduction of the Rapeseeds /soybean /cottonseeds/sunflower solvent extraction /oil leaching machinery :

The oil extraction process is a way to get edible oil through the spread effect between solvent

and fat in oil material which can be dissolved in the designated solvent.

Our oil seed solvent extraction plant equipment is advanced extraction equipment that fixed grid

of stainless steel plate extractor.

It also has the advantages of high yield, simplified structure, less operational  failure, good leaching effect.

Our company provides Turn-Key Project for 20-800T/D (rotocel extractor, loop type extractor,

ball-yuan extractor, DTDC desolventizer-toaster,vacuum evaporation,solvent recovery

and solvent condensation recovery).

Features of the Rapeseeds /soybean/cottonseeds/sunflower solvent extraction /oil leaching machinery :

1.It is the most simplified structure of the same type of extractor

2.Replaced with a false bottom plate fixed grid,reducing the movement mechanism,

   high safe operation rate,work reliably.

3.Has a “self-cleaning”effect,clean up grid plate without downtime.

4.It can increase the leaching time of the material,reduce residual rate.

5.It can increase the loading factor,increase production.

Main specifications of Rapeseeds /soybean/cottonseeds/sunflower solvent extraction /oil leaching machinery :

Daily treatment 20T,30T,50T,80T,100T,150T,200T,300T,450T,600T,800T.

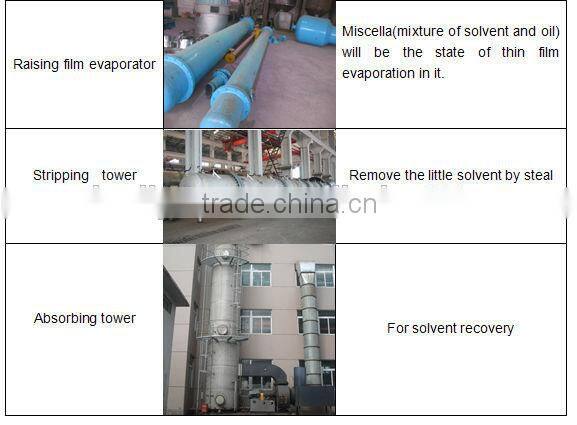

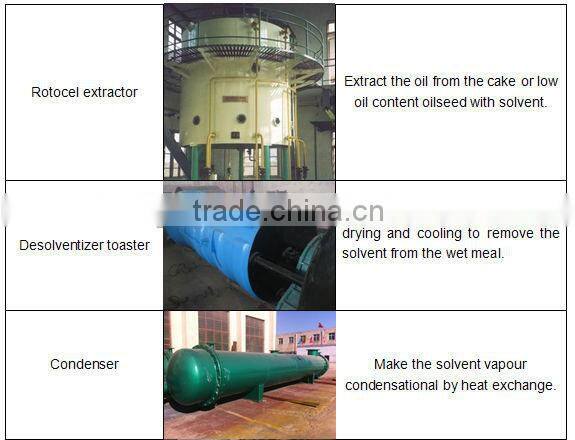

Main equipment of Rapeseeds /soybean /cottonseeds/sunflower solvent extraction /oil leaching machinery :

 Main parameters of  Rapeseeds /soybean /cottonseeds/sunflower solvent extraction /oil extraction machinery :

(take 300T soybean extractor as an example)

Capacity 300 T/D

Residual oil in meal<1%(soybean)

Solvent consumption<2kg/t(NO.6 solvent oil)

Crude oil moisture and volatile matter<1.3%

Power consumption<15kwh/t

Steam consumption<280kg/t(0.8Mpa)

Finished meal moisture<13%(adjustable)

Residual solvent in finished meal<300PPM(qualified detonated experiment)

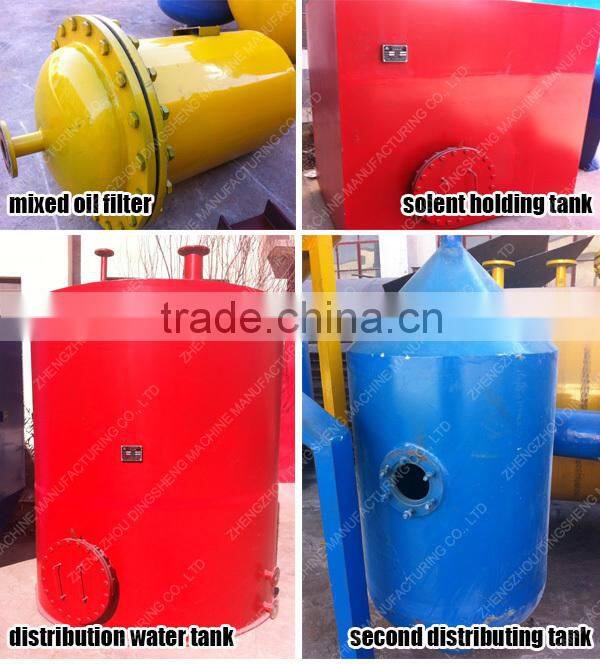

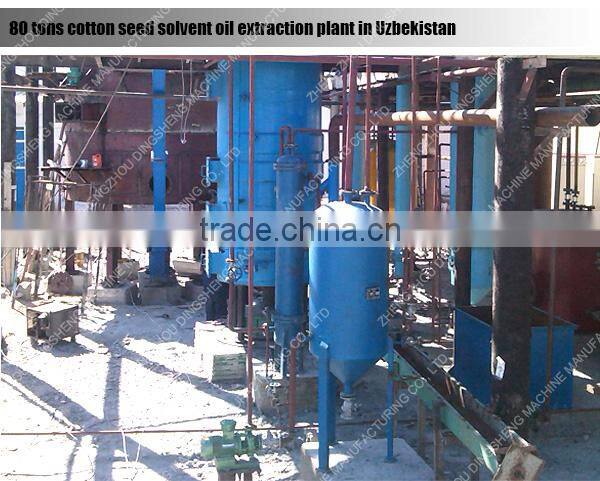

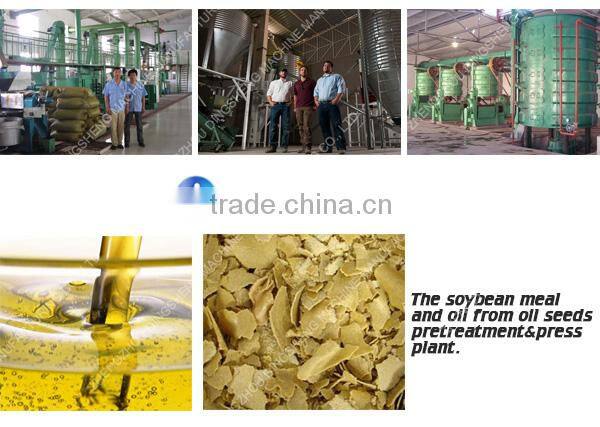

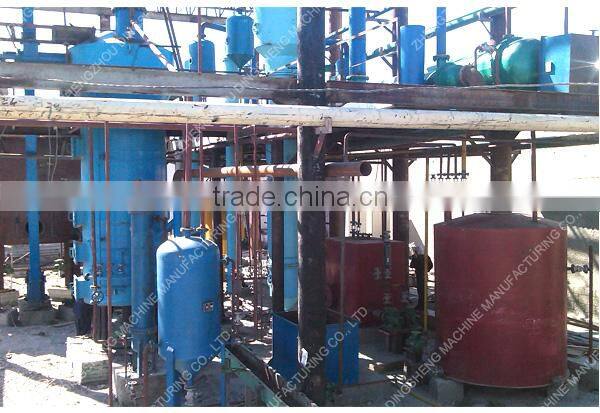

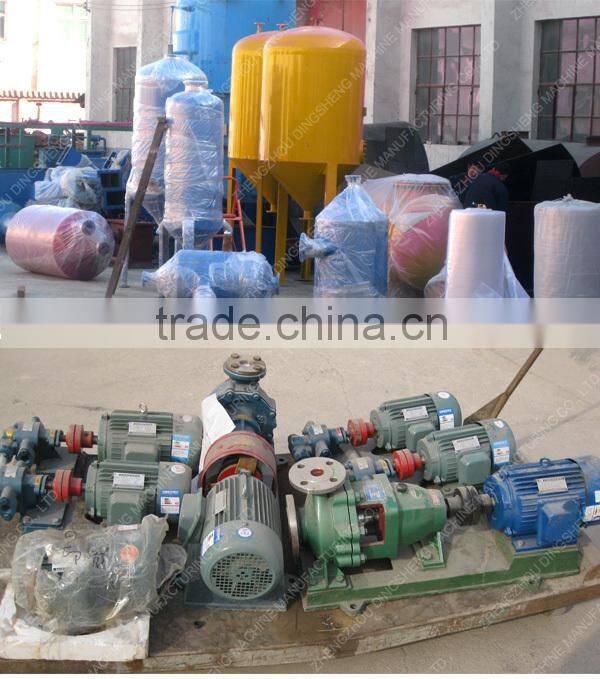

More pictures of our equipments :

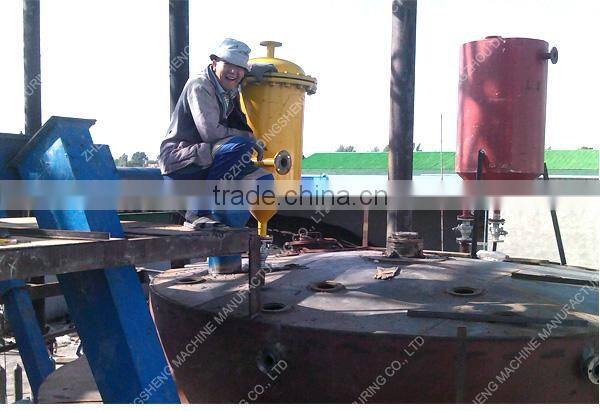

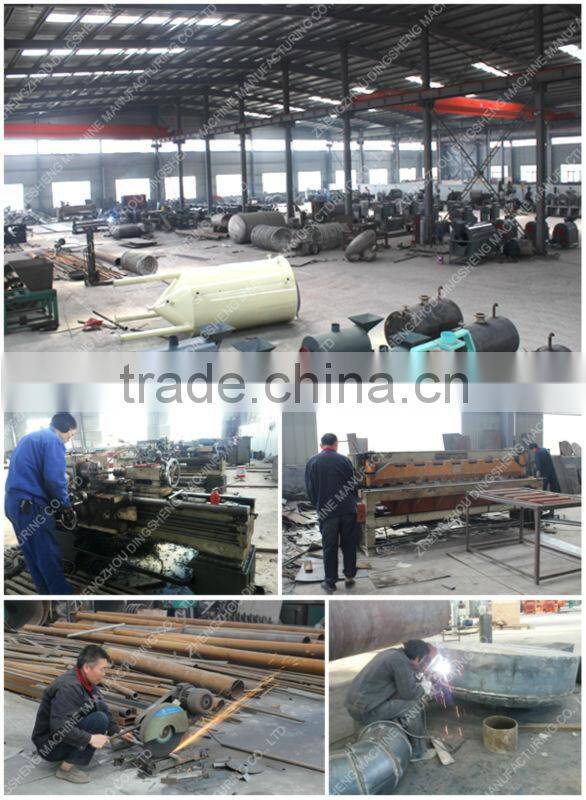

 Processing equipment workshop:

Our customers visiting:

Our Exhibition Show :

Warranty Period: Free replacement of wearing parts in 6 months from the date of

                               purchasing AND main body in 12 months from the date of purchasing.

After Service: We provide spare parts all year around at factory cost and technical

                          solutions for customers at any time.

Warranty period? ------------------------------------------------------------one year

Manufacturing cycle? -------------------------------------------------------30 days

Installation time-----------------------------------------depend on customer time

Packing-------------------------------------------------------------------wooden case

How to solve problem-----------------------------directly contact to salesman

Our corporation was established in 2002, mainly engaged in oil engineering R&D,

equipment manufacture, installation commissioning and training services.
We seize more business opportunities in the competition at any time, to create greater

value for you and the society. Our team, which is highly skilled, is ready to serve you in

24 hours.
