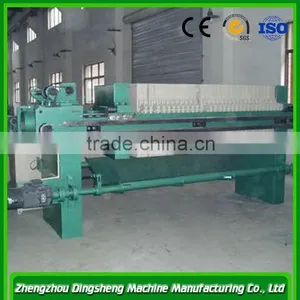

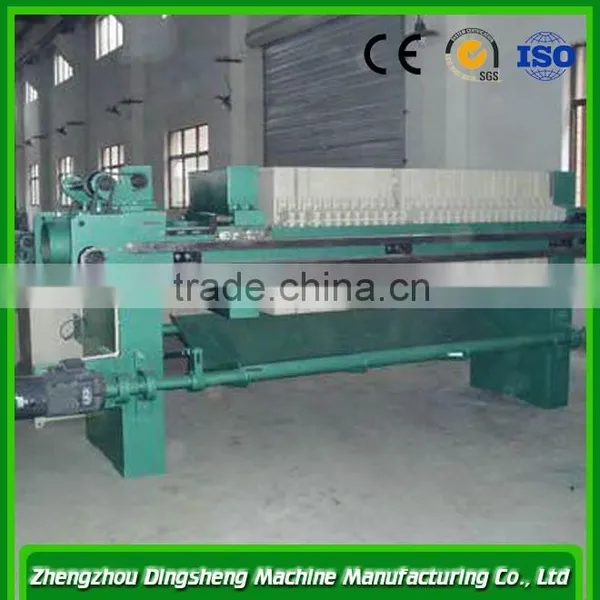

Vegetabl seed plate frame oil filter
- 200 Set / Sets per Month
- all ports in Qingdao
- T/T
- used for stone pe-250x400 quartz small jaw crushers
- low comsuption mini rock diesel engine jaw crusher
- china manufacturer provide used jaw crusher price
- high efficiency pe 400 x 600 old mini jaw crusher for sale
- manufacturer provide toggle platepe 150x250 jaw crusher machine
- pe 400x600 mobile jaw crusher price with spare parts
Product Details
Condition: | New | Usage: | Peanut Oil | Type: | Other, oil filter |
Automatic Grade: | Automatic | Production Capacity: | 3-100m2, 500L/h | Place of Origin: | Henan, China |
Brand Name: | Dingsheng | Model Number: | YSMS500 | Voltage: | 380v |
Power(W): | 0.75kw | Dimension(L*W*H): | 1984*694*1153mm | Weight: | 1000KG, 1000KG |
Certification: | CE ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications of Soya bean oil plate frame filter price
plate frame oil filter
-500 L/h
-Easy operation
-Good durability vacuum filter
-Prompt after service.
(We have other plate frame filter with different specifications. )
Model | YBLL260×10 | YBLL320×11 | YBLL320×14 | YSMS500×20 |
Diameter (mm) | 260×260 | 320×320 | 320×320 | 500×500 |
Filter Plates Quantity | 10 | 11 | 14 | 19 |
Processing Capacity | 90 | 140 | 180 | 525 |
Working Pressure (Mpa) | 0.35 | 0.35 | 0.35 | 0.35 |
Electric Power (kW) | 0.75 | 0.75 | 0.75 | 2.2 |
Filtration Areas (m2) | 1.35 | 2.1 | 2.64 | 7.7 |
Measurement (mm) | 990×480×800 | 1010×530×870 | 1150×530×870 | 1984×694×1153 |
Weight (KG) | 280 | 320 | 350 | 1300 |
plate frame oil filtrating machine Description
Our plate frame filter is a classic equipment mainly for filtrating the crude oil and workable with any type of oil press. Its main characteristics are as below:
1. Capacity covers from 90L/h to 525L/h, suitable for different scales of oil refinery and oil factory.
2. Has gear pump to convey the oil to the filtratrition rooms, saving labor and has higher efficienccy.
3. The filtrating force is big, thus can achieve precise result.
4. Easy to operate and clean the residue.
Quality Standard
Conform to JB/T9793·1-1999 of The People's Republic of China & ISO9001:2008.
BV,SGS certificated.
Warranty terms
Free replacement of main body in 12 months from the date of purchasing if ther are quality problem.
After-sale service
1. We supply spare parts timely all year around at factory cost.
2. We afford technical solutions for buyers at any time.
YXMS500 × 20 plate frame oil filtrating machine Characteristics
1. Big capacity, 525L/h
2. Easy Operating; filtration result is quite precise.
We are manufacturer of oil processing equipment, include oilseeds pre-treatment, pressing , refining equipment and cake oil solvent extraction equipment. If you need more details, please free to contact me.
Thanks!
