hydraulic oil filter
- 200 Set / Sets per Month
- all ports in Qingdao
- T/T
You May Like
Product Details
| Condition | New | Usage | Peanut Oil | |
| Type | Other, oil filter | Automatic Grade | Automatic | |
| Production Capacity | 3-100m2, 500L/h | Place of Origin | Henan, China | |
| Brand Name | Dingsheng | Model Number | YSMS500 | |
| Voltage | 380v | Power(W) | 0.75kw | |
| Dimension(L*W*H) | 1984*694*1153mm | Weight | 1000KG, 1000KG | |
| Certification | CE ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
plate frame oil filter
-500 L/h
-Easy operation
-Good durability vacuum filter
-Prompt after service.
(We have other plate frame filter with different specifications. )
Model | YBLL260×10 | YBLL320×11 | YBLL320×14 | YSMS500×20 |
Diameter (mm) | 260×260 | 320×320 | 320×320 | 500×500 |
Filter Plates Quantity | 10 | 11 | 14 | 19 |
Processing Capacity | 90 | 140 | 180 | 525 |
Working Pressure (Mpa) | 0.35 | 0.35 | 0.35 | 0.35 |
Electric Power (kW) | 0.75 | 0.75 | 0.75 | 2.2 |
Filtration Areas (m2) | 1.35 | 2.1 | 2.64 | 7.7 |
Measurement (mm) | 990×480×800 | 1010×530×870 | 1150×530×870 | 1984×694×1153 |
Weight (KG) | 280 | 320 | 350 | 1300 |

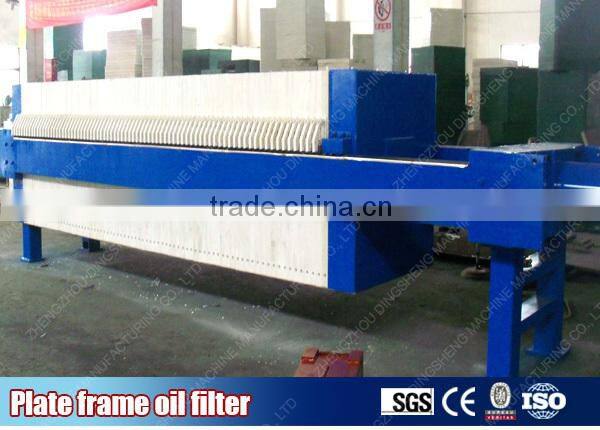

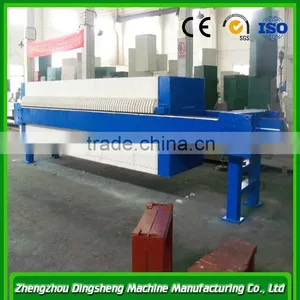

plate frame oil filtrating machine Description
Our plate frame filter is a classic equipment mainly for filtrating the crude oil and workable with any type of oil press. Its main characteristics are as below:
1. Capacity covers from 90L/h to 525L/h, suitable for different scales of oil refinery and oil factory.
2. Has gear pump to convey the oil to the filtratrition rooms, saving labor and has higher efficienccy.
3. The filtrating force is big, thus can achieve precise result.
4. Easy to operate and clean the residue.
Quality Standard
Conform to JB/T9793·1-1999 of The People's Republic of China & ISO9001:2008.
BV,SGS certificated.
Warranty terms
Free replacement of main body in 12 months from the date of purchasing if ther are quality problem.
After-sale service
1. We supply spare parts timely all year around at factory cost.
2. We afford technical solutions for buyers at any time.
YXMS500 × 20 plate frame oil filtrating machine Characteristics
1. Big capacity, 525L/h
2. Easy Operating; filtration result is quite precise.
