Factory fish oil manufacturing process
- 10 Set / Sets per Month
- all ports in China
- T/T
- used for stone pe-250x400 quartz small jaw crushers
- low comsuption mini rock diesel engine jaw crusher
- china manufacturer provide used jaw crusher price
- high efficiency pe 400 x 600 old mini jaw crusher for sale
- manufacturer provide toggle platepe 150x250 jaw crusher machine
- pe 400x600 mobile jaw crusher price with spare parts
Product Details
Condition: | New | Usage: | Sunflower Oil | Type: | Other, Cold & Hot Pressing Machine |
Automatic Grade: | Automatic | Production Capacity: | 1t-500t per day | Place of Origin: | Henan, China |
Brand Name: | Dingsheng | Model Number: | 1t-500t per day | Voltage: | 380V 50HZ |
Power(W): | Based on capacity | Dimension(L*W*H): | Based on capacity | Weight: | Based on capacity |
Certification: | CE ISO SGS | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications of Factory fish oil manufacturing process
small crude oil refinery
1.The residual: <1%
2.1st grade seed oil
3.Patent technology
4.Good smell oil
Product Description of Factory fish oil manufacturing process
Raw Material
The oil machine is suitable for different oil seeds, but the process of each oil seed is various. If you really need to process various seed oil by the whole line, welcom to know much from us. The main oil seed is rice bran, peanut, palm, sunflower, corn germ, soybean, sesame, cottonseeds and so on.

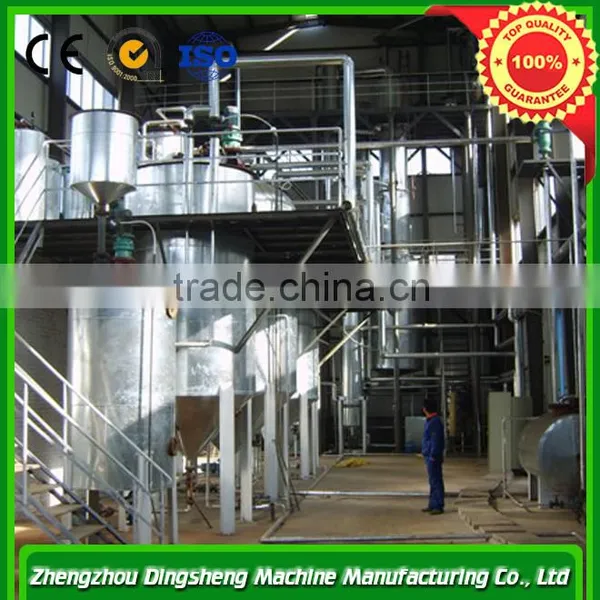

Small Scale Crude Oil Refinery
The whole process for small crude oil refinery machine includes oil seeds pretreatment, oil seeds solvent extraction machine and oilseeds oil refinery sections.
1. Craft flow for seed pretreatment workshop
oilseeds → magnetic box → cleaning → puffing machine → plate dryer → to extraction workshop
Main Equipments:
1. Magnetic box: Clearing the iron impurity in the oilseeds. In order to avoid the harmful to the following machines, the iron impurity need be moved first.
2. Cleaning: There are many different imputities in the oilseeds, such as small stone, earth, straw and so on. They are not only broken the machine, but also effect the quality of final oil.
3. Puffing machine: The size of oilseeds is very small, so it's not easy to press it. We will puff it and make it to small pellet. Then it will absorb more solvent in the solvent extraction section. The more oil will be extracted out.
4. Plate dryer: The water content of the extractor must be about 10%, so the dryer is used to adjust the water content in this step.
2.Craft flow for seed oil extraction workshop
solvent
↓
extractor → mixed oil → 1st and 2nd evaporation → stripping tower → crude seed oil
Wet meal → DTDC toaster → cake
Main Equipments:
1. Roary extractor: The spray and soak the cake with solvent, so that oil fats can be dissolved in solvent
(form miscella). After this step, wet meal and miscella (mixed oil) are got.
2. 1st evaporator: The miscella (mixed oil) will be sent to 1st evaporator to separate the oil and solvent.
About 85% of oil can be separated from the mixed oil in this step.
3. 2nd evaporator: After the separating in the 1st the evaporator, the mixed oil is sent to 2nd evaporator.
By the higher temperature and vacuum, 95% of the oil is get out from the solvent.
4. Stripping tower: This is the lastest step to separate the mixed oil. In this machine, all the oil will be seperated from the solvent.
5. DTDC toaster: The cake from the extractor will enter the DTDC toaster. The solvent in the cake can be moved out. Then the solvent can be recycled. The cake after separating solvent will dried in the toaster. Then you can storage it directly.
6. Condensers: The solvent from evaporate, stripping tower and toaster will recycled by the condenser. Then the running cost will be reduced.
3. Craft flow for crude fish oil manufacturing process
Crudeseed oil → degumming and deacidification→ decolorization →deodorization → refined seed oil.
Main Process:
1. Degumming and deacidification: The gum and acid in the oil will moved in this step. There are different ways to process it. The physical way is suitable for low acid oil and big capacity, while the chemical way is suitable for the small capacity and high acid oil.
2. Decolorization: The white clay is used to move the color of the oil. For different market, people like different color oil, so you can control the color by the quantity of the white clay.
3. Deodorization: The oil will have the special smell of the oilseeds. It also contains the smell of white clay, so we need more the smell which people don't like. The high temperature steam is used to move the smell of the oil.
4. Winterization: There are much wax in the rice bran oil, so the winterization part is needed to move the wax in the rice bran. After moving the wax, the oil can keep clear in low temperature.
The Specification of Crude Seed Oil
Item | Standard |
Smell and taste | The original smell and taste of seed oil |
Moisture and volatile matter (%) ≤ | 0.20 |
Insoluble impurities (%) ≤ | 0.20 |
Acid value (mgKOH/g) ≤ | 4.0 |
Peroxide value (mmol/kg) ≤ | 7.5 |
The Specification of Refined Seed Oil
Item | Standard |
Color (Lovibond Cell 133.4mm) ≤ | R2.0 Y20 |
Smell and taste ≤ | No smell and good taste |
Transparence ≤ | Clear and transparent |
Moisture and volatile matter (%) ≤ | 0.05 |
Insoluble impurities (%) ≤ | 0.05 |
Acid value (mgKOH/g) ≤ | 0.20 |
Peroxide value (mmol/kg) ≤ | 5.0 |
Smoke point (°C) ≥ | 215 |
