Customer satisfaction is the aim of our management. We are ready to provide our best services.

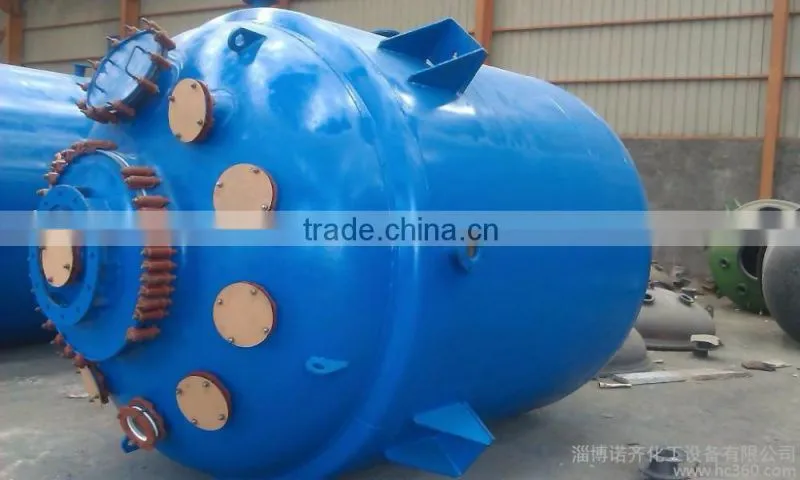

Glass lined equipment, Glass lined reactor, Glass lined tank.
Very high corrosion resistance against inorganic acid, organic acid, organic solvent with different concentration.
It's widely used in producing chemicals, intermediates, pharmaceuticals,Petrochemnicals, light industry, pharmaceuticals, pesticide, foodstuff, dyes, scientific research etc.
Specifications:
1). Capacity of Glass lined reactor with motor :50 to 30000Liters
2). Structure: Open type (k-type) or closed type( F-type)
3). Material: Vessel: stainless steel, carbon steel, mild steel with glass layer inside surface; Jacket: Mild steel.
4).Design pressure:Vessel=0.2MPa,0.6MPa,1.1MPa Jacket=0.6MPa
5).Agitator:Different Types(Optional)
6).Reducer:Vertical Type
7).Temperature: 0 to 200 . Degree°C.
8).Glass layer thickness: 0.8 - 2.0mm
9).Cool shock: 110 °C.;Thermo-shock: 120 °C.
10).Glass lined reactors with design pressure greater than 0.6MPa inside the vessel shall be ordered separately.
11). Accessories:
We can supply a complete set of glass lined reactor generally with motor with Reducer, Seal (optional: Stuffing box;.Single Mechanical seal; Double mechanical seal ), Agitator, Thermometer pocket, bottom discharge Valve
12). Properties and Advantages:
1 Corrosion resistance: organic or inorganic acid, organic solvent and weak alkaline corrosion (not including hydrofluoric acid, containing fluorine medium, phosphoricacid, and alkali concentration greater -than 30% and temperature greater-than or equal 180 Degree .)
2 Pressure resistance: a) Packing box: vessel: less- than or equal 0.4MPa; Jacket:0.6MPa ) Single Mechanical seal: vessel: equal or less than 0.4Mpa Jacket:0.6MPa c) Double mechanical seal: vessel: 0.6Mpa, Jacket:0.6MPa
13).Glass lined reactors conform to the National Standard for Glass-lined equipment,and modifications have been made for improvement by our company.
Remark:
1. Temperature should be slowly changed while heating or cooling glass lined reactor,avoid damaging glass layer.
2. Glass lined reactor with motor can not be used in hydrofluoric acid, medium containing fluorine, phosphoricacid , and alkali concentration greater -than 30% and temperature greater-than or equal 180 Degree Cent.
3 The user make an indication when operation pressure over 0.4MPa or operation temperation lower 0°C inside the vesse
As an expert manufacturer and supplier of chemical equipment and machinery since 1998, Zibo Reliable import and export Co., Ltd belongs to Zibo Tanglian chemical Co,. Ltd which has other 2 factories(Zibo Tanglian chemical equipment Co,.Ltd ShanDong Binlian fine chemical Co,.Ltd) continually developed and provided quality-stable chemical equipment to solve the problem of considering the need of both corrosion resistant and cost saving. Our products have been widespread in chemical, petrochemical, biochemical, pharmaceutical, fine chemical, metallurgy, etc.
Zibo Reliable Import & Export Co., Ltd. is a rising comprehensive import & export company, which integrates in design, development, manufacturing, installation, sales and after-sales services. As one of the most professional manufactures and exporters of Photoinitiators especially 819 and Glass lining equipments, it locates in Zibo City, Shandong Province, China.
Zibo Tanglian Co. Ltd manufactures all kinds of chemical equipments, such as glass lined reactors, glass lined tanks, limpet coil reactors, condensers, distillation columns, measuring tanks, heat exchangers, stainless steel equipments, pipes and all kinds of pressure vessels from 50L to 80000L; besides, we can supply all kinds of accessories including agitators, reducers, frequency converter, mechanical seals, thermometer pockets, flush valves and so on. The application of the large-scale furnace with temperature auto-control system makes the glaze temperature easily controlled. The products have the advantages of clean surface, stable quality, collapse resistance, pollution and dust influence resistance.It is widely used in the petroleum, chemical, light industry, pesticide, pharmacy, dyestuff, food processing industry and scientific research, etc. As a famous enterprise of the industry, we keep a sales network that covers the whole country, and far to India, Vietnam, Malaysia, Brazil, Colombia, Middle East, South America, Africa, etc.
