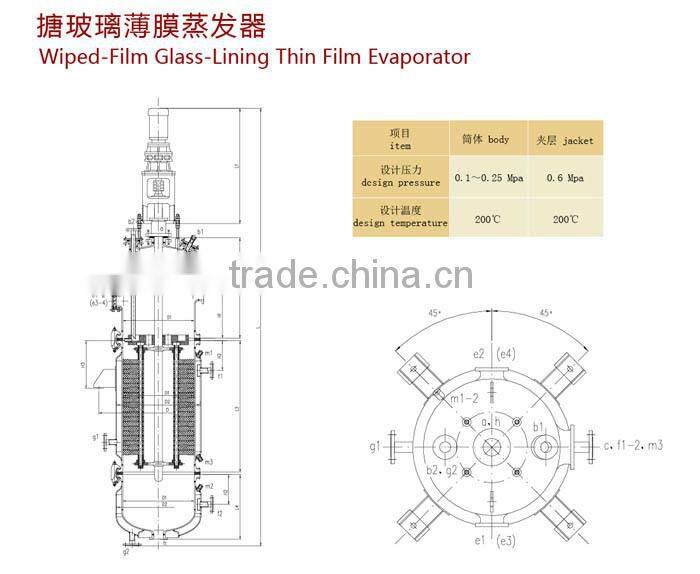

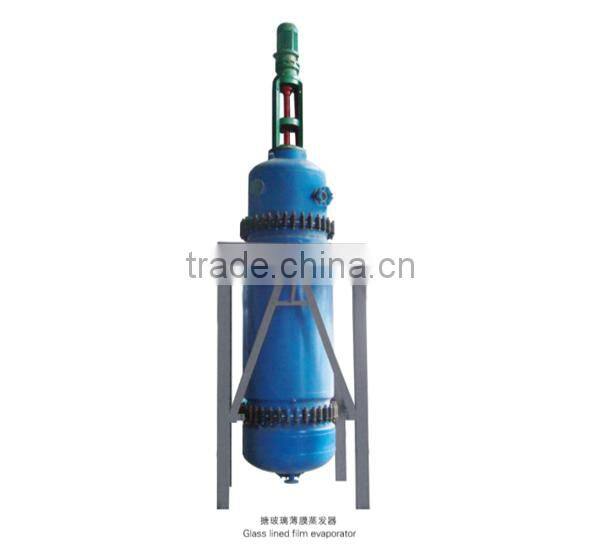

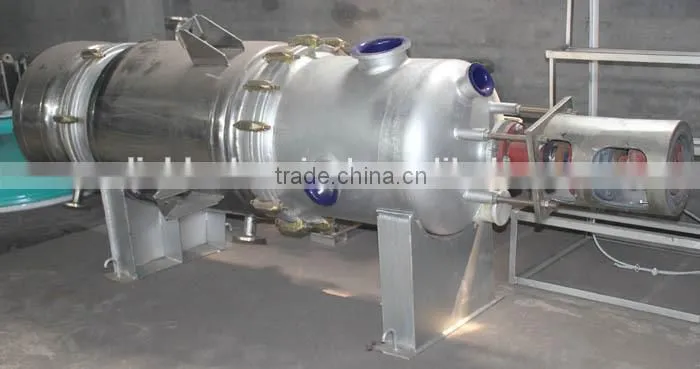

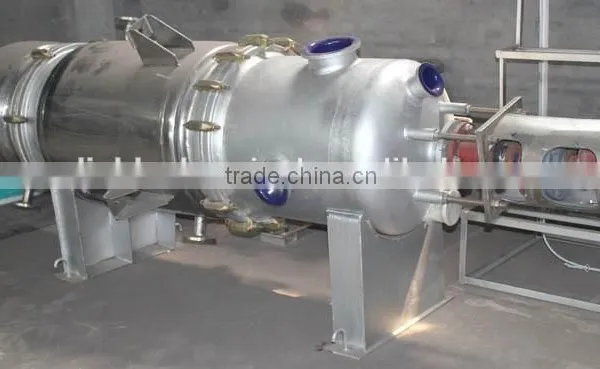

Glass lined film evaporator
A.What’s glass lined film evaporator?
It is the pioneer product in China solving the problem of refining distillation of high boiler with strong corrosion and heat instable chemicals, which can greatly promote the recovery efficiency and quality of high boiler and heat instable chemicals
B.Usage
1.Heat sensitive materials( materials have effected on quality and gains)
2.Material which is not refine from the reactor and without high purity
3.Material with more evaporation and high concentration
C.Operating condition
1.Operating pressure :inner vessel ≤-0.1-0.2MPa ; jacket ≤ 0.6MPa (special requirement shall be redesign)
2.Operating temperature:inner vessel≤ 180℃;jacket ≤20-200℃

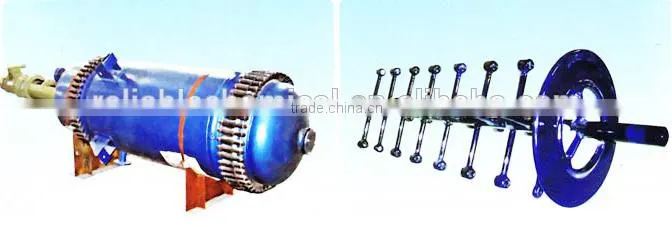

E.Main Compose
1.Explosion -proof Motor and reducer
2.Welding rack
3.Dry-type mechanical seal
4.Up and down barrel
5.Evaporation barrel
6.Agitator
7.Dispersion plate and PTFE part
8.Other assembly parts
F.Warranty period and Service Life
1.Warranty period :12months
2.Service Life:Above 24months(as per the condition )
G.Advantages
1.The high vacuum and low temperature evaporation can make the compound difficult to decompose, so the product has high recovery efficiency.
2.The evaporation area is large with high efficiency.
3.The material retention time is short (within 10 seconds approximately), and the compound difficult to decompose, so the product has high recovery efficiency.
4.It has the corrosion-resistance property of glass lined.
As an expert manufacturer and supplier of chemical equipment and machinery since 1998, Zibo Reliable import and export Co., Ltd belongs to Zibo Tanglian chemical Co,. Ltd which has other 2 factories(Zibo Tanglian chemical equipment Co,.Ltd ShanDong Binlian fine chemical Co,.Ltd) continually developed and provided quality-stable chemical equipment to solve the problem of considering the need of both corrosion resistant and cost saving. Our products have been widespread in chemical, petrochemical, biochemical, pharmaceutical, fine chemical, metallurgy, etc.
Zibo Reliable Import & Export Co., Ltd. is a rising comprehensive import & export company, which integrates in design, development, manufacturing, installation, sales and after-sales services. As one of the most professional manufactures and exporters of Photoinitiators especially 819 and Glass lining equipments, it locates in Zibo City, Shandong Province, China.
Zibo Tanglian Co. Ltd manufactures all kinds of chemical equipments, such as glass lined reactors, glass lined tanks, limpet coil reactors, condensers, distillation columns, measuring tanks, heat exchangers, stainless steel equipments, pipes and all kinds of pressure vessels from 50L to 80000L; besides, we can supply all kinds of accessories including agitators, reducers, frequency converter, mechanical seals, thermometer pockets, flush valves and so on. The application of the large-scale furnace with temperature auto-control system makes the glaze temperature easily controlled. The products have the advantages of clean surface, stable quality, collapse resistance, pollution and dust influence resistance.It is widely used in the petroleum, chemical, light industry, pesticide, pharmacy, dyestuff, food processing industry and scientific research, etc. As a famous enterprise of the industry, we keep a sales network that covers the whole country, and far to India, Vietnam, Malaysia, Brazil, Colombia, Middle East, South America, Africa, etc.
