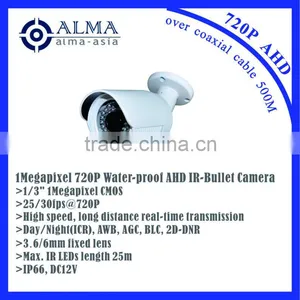

720P AHD IR WATERPROOF CAMERA

Specifications

1/3 inch 720p HD AHD camera
transfer distance can be 300-500m over coaxial cable

2014 New Technology  720P 1.0MP AHD Analogy CCTV Security Camera



Feathure:

* 1/3”1.0 Mega Pixel Progressive Scan CMOS 1280(H)×720(V)



*  H.264/JPEG Video Compression;



* Support HD IR CUT



*24--35pcs IR Leds,20--25M IR Distance



* 3.6/6mm MegaPixel Lens options



* Using coaxial transmission mode which lower costs



* Extremely long distance, which use the Normal  wires also can get 300m~500m distance



* Low frequency point to point transmission mode, which avoid CVBS chromaticity crosstalk phenomenon, reflects the strong anti interference ability



* Real time preview, without delay, trailing and lossing image



* Easy and simple to debug & install, which instead of the Old Analog Security System without rewiring.







Specification:



Model	ALMA-720AHD-24E
Image Sensor	1/3”1.0 Mega Pixel Progressive Scan CMOS
Signal System	PAL/NTSC
Total Pixels	1280(H)×720(V
Minimum illumination	0.01 Lux(0.0Lux IR ON)
Lens	3.6/6mm MegaPixel Lens options
Video output	1.0Vp-p, 75 ohm Composite, BNC x 1
IR Distance	24/35PCS IR LED, 20--25Meters IR Distance
S/N Ratio	>52dB
Electronic Shutter Speed	1/50 - 1/10,0000S
Blacklight Compensation	Auto
Operating Condition	-10°C~60°C,Humidity 90% or less(non-condensing)
Power Supply	DC12V±10%
