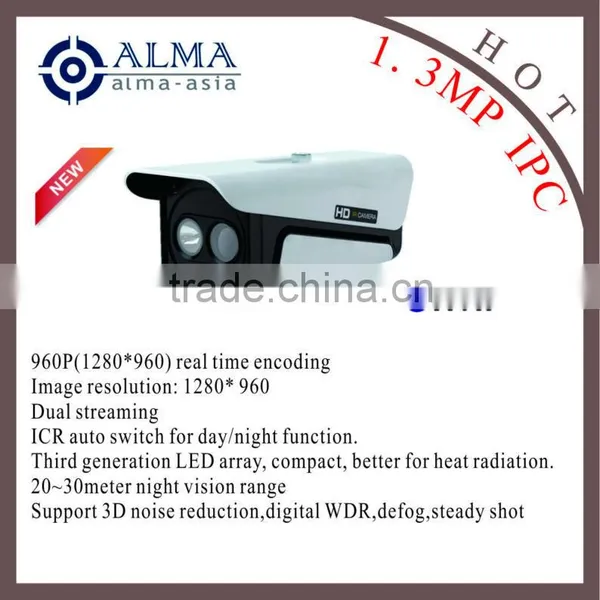

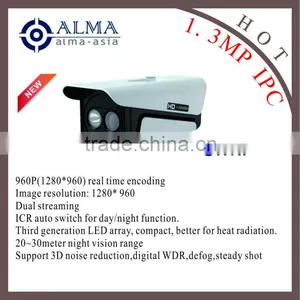

1.3 Megapixel IP Box Camera Support ONVIF and POE

Name: 1.3 Megapixel IP Box Camera Support ONVIF and POE
Brand: ALMA
SKU: 112395049
Availability: InStock

Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

China

Brand Name:

ALMA

Model Number:

IP-IR201A-6MM

Alma Technology Sdn. Bhd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name ALMA

Model Number IP-IR201A-6MM

Type Digital Camera

Style Box Camera

Sensor CMOS

Technology Infrared

Special Features Other

Specifications

960P(1280*960) real time encoding
Image resolution: 1280* 960
Dual streaming
ICR auto switch for day/night function.

Model		IP-IR201A-6MM
Camera	Image sensor	1/3"CMOS
	Image pixels	1280×960
	Electronic shutter	1/25s ~ 1/100000s
	Audo iris	Fixed iris
	Min.illumination	0lux(IR LED ON)
	Lense	6mm(4mm,8mm Optional)
	Mount type	M12 mount
Image	Compression	H.264
	Resolution:	960P(1280×960),720P(1280×720),VGA(640×480),QVGA(320×240)
	Frame rate:	1280×960(1~30fps) / 1280x720(1~30fps) 1280x720(1~10fps) / 640×480(1~30fps) / 320x240(1~30fps)
	Bit rate:	64Kbps ~ 4Mbps
	Encode	VBR/CBR
	Quality	VBR 5 level ,CBR no limit
	Image config.	Saturation,Brightness,Chroma, Contrast ,WDR,Sharpness, NR(Via IE and client end)
	Audio compression	G711A
	WDR	Digital
	Noise Reduction	3D
Interface	Internet	RJ45
	Video out	CVBS(BNCx1)
	Audio	one way audio(MIC IN×1)
	Storage	No
	RS485	No
	Alarm in	No
	Alarm out	No
Function	Remote surveillance	IE,CMS
	Online user	6users,support multi-stream real time transmission.
	Network protocal	TCP/IP,UDP,DHCP,NTP,RTSP,PPPoE,DDNS,SMTP,FTP
	Interface protocal	ONVIF,GB-T/28181-2011
	Storage	Remote storage
	Smart alarm	Motion
	Day/night	ICR
	PTZ	No
	PoE	Yes
	Night vision range	20-30m
	Water proof	IP66
Others	Power supply	DC12V/POE
	Power consumption
	Power consumption with IR on
	Working environment	-40°C ~ 50°C,10% ~ 90% humidity
	Dimension	W80mm×D203mm×H80mm
	Weight(net)
	Weight(gross)
