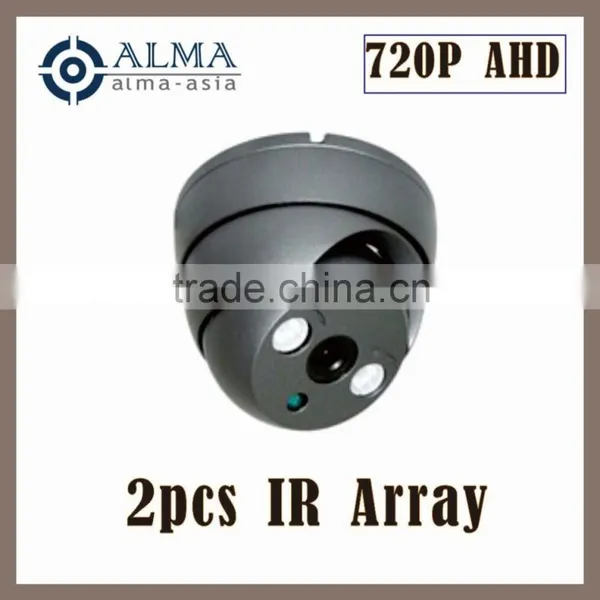

720P HD-AHD 20M IR Array Dome Camera

Name: 720P HD-AHD 20M IR Array Dome Camera
Brand: ALMA
SKU: 112394793
Availability: InStock

US$ 15 - 25 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ALMA

Model Number:

A720PAHDD2B-1

Alma Technology Sdn. Bhd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ALMA

Model Number A720PAHDD2B-1

Type Analog Camera

Style Dome Camera

Sensor CMOS

Technology Infrared

Special Features Vandal-proof

1/3" SONY IMX238 CMOS+ 2431H

2pcs ir array / ir 20m
2.8/3.6/6 mm mini lens
Waterproof IP 66
IR CUT / OEM & DEM

SPEC

Image Sensor			1/3" SONY IMX238 CMOS
Effective Pixels			1280(H) X 1024(V) 1.30M
Signal System			NTSC/PAL(1280X576)
Horizontal Resolutio			1000TVL
Min. Illumination			0.02 Lux / F1.0 , B/W: 0 Lux / F1.0 (With IR )
S/N Ratio			>52dB (AGC OFF)
Electronic Shutter			Auto : 1/25(30)~1/50,000
Lens			3,.6mm / 6mm
Exposure			Auto (X2,X4,X6,X8,X15,X20,X25,X30(Optional)
3D-Digital Noise Reduction			Low/ medium/ high
2D--Digital Noise Reduction			Low/ medium/ high
OpticalFogReduction			Auto / Manual
D-WDR			On / Off
White Balance			Auto/AWB /AWC->SET
Gain Control			0-15
D/N Switch			Auto/Color/B&W/EXT
Motion Detection			4 Areas(alarm system)
Mirror / Reverse			4 Areas
Image brightness			0-100
Image sharp contrast			Auto / Manual
color Saturation			Auto / Manual
OSD Languages			English// Chinese/Russian/Spain/Italy/Turkey/polish /Portuguese/German/Netherlands
Synchronization System			Internal
Video Output			AHD 1.0Vp-p / 75Ohms(Lightning and static electricity protection)
Input Voltage			DC 12V ( 6~23V)
Power Consumption			85mA
Operating Temperature			-10 °C to +50 °C ( 14 °F to 122 °F )
Operating Humidity			20 to 80 %
Storage Temperature			-40 °C to +60 °C ( -40 °F to 140 °F )
Storage Humidity			20 to 95 %
