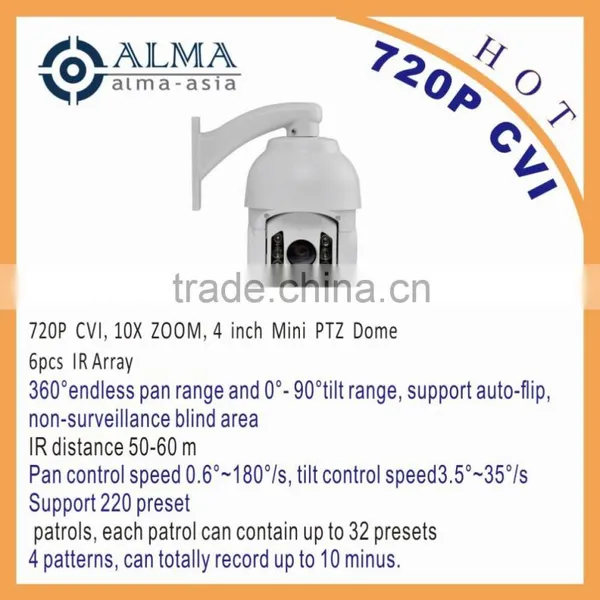

720P CVI 4inch Mini PTZ Dome
- 20000 Piece / Pieces per Month
- shenzhen
- Credit Card
- 7 inch TFT Monitor DIGITAL Wireless Farm Cctv Systems
- 7 inch TFT Monitor DIGITAL Wireless New Backup Camera Kit with 2.4GHz digital signal
- 7 inch TFT Monitor Digital Reversing Camera System with 2.4GHz digital signal
- 7 inch TFT Monitor Wireless Back Up Systems with 2.4GHz digital signal
- Car Camera Wireless Transmitter System For Bus
- 7inch digital 2.4g wireless surveillance camera system For Bus
Product Details
Place of Origin: | Guangdong, China | Brand Name: | ALMA | Model Number: | ACVI720P6 |
Type: | Analog Camera | Style: | Dome Camera | Sensor: | CMOS |
Technology: | Infrared | Special Features: | Waterproof / Weatherproof |
Product Description
Application:
It can be widely used in wide range environments which required monitoring, e.g. river, forest, highroad, railway, airport, port, oil field, sentry, piazza, park, scenic zone, street, station, venue, parcel surrounding, and etc.
Features:
IR Function:
1) 6PCS high-power infrared light, turn divided into two groups , no flashlight effect , IR distance 50-60 m.
2) Adopt the function of matching the IR to optical zoom of the module, make the image more clear.
3) Adopt constant current drive for the IR light, extend the lift of the IR light.
System Function:
1) Precision motor-driven,keen responsive,smoothly operation,the precision deviation less than 0.1 degree, the image does not have any vibration under any speed.
2) 360°endless pan range and 0°- 90°tilt range, support auto-flip, non-surveillance blind area.
3) Support data not lost when power off.
4) Support Auto checking and proportional zoom setting.
5) Support lightning protection, anti-surge, anti-surge function, IP66.
PTZ Function:
360°endless pan range and 0°- 90°tilt range, support auto-flip, non-surveillance blind area
Pan control speed 0.6°~180°/s, tilt control speed3.5°~35°/s
Support 220 preset
8 patrols, each patrol can contain up to 32 presets
4 patterns, can totally record up to 10 minus.
Proportional zoom function, rotation speed can be adjusted automatically according to zoom multiples
Support park action, presets/pattern/patrol/pan scan can invoke automatically after a defined time of inactivity
(contain the idling condition after the power supply has been turn on)
Para/Model |
| |
function | IR distance | Effective IR distance 50m-60m |
Pan range | 360° endless | |
Pan speed | 0.6°-200°/s | |
Tilt speed | 3.5°-35°/s | |
Tilt range | 0°-90°(support auto flip) | |
Manual speed | High middle low speed adjustable | |
Proportional Zoom | Support | |
Preset | 220 | |
Patrol | 8 | |
Pattern scan | 4 | |
Scan between two presets | support | |
Park action | Support selectable preset , cruise , pattern scan , two- line scan , automatic level | |
Zone scanning | support | |
PTZ Position display | Support, can select on/off | |
camera | Horizontal resolution | 1280*720 |
sensor | 1/3”Ex-view 1.3 Mega Pixel CMOS | |
illumination | 0.01-0.02Lux | |
Video output | 1Vp-p Composite Output(75Ω/BNC) | |
S/N | ≥50dB | |
Optical zoom | 10X | |
Focus range | F=5mm-50mm | |
IRCUT | Standard IRCUT | |
Aperture | Fixed Iris | |
Angle of view | H 47°(W)~5.3°(T) ; V35.6°(W)~3.96°(T) | |
Min. working distance | 10mm(W)~1000mm(T) | |
Focus | Auto/manual | |
Image effects | Auto/color/black/Negative | |
Back-light | On/off | |
White balance | On/off/indoor/outdoor | |
others | Menu | English |
Power supply | DC 12V 2A | |
Power consumption | 20 MAX(without heating) | |
Working Temperature/Humidity | -20℃-60℃,≤90%RH(frostless) | |
Protection Grade | TVS3000V lightning protection, surge protection and voltage transient protection, weather proof (for outdoor): IP66 | |
Outlook design | Mini 4 inch | |
Package dimension(mm) | 225×245×230 | |
Weight(Kg) | 2.16 |
