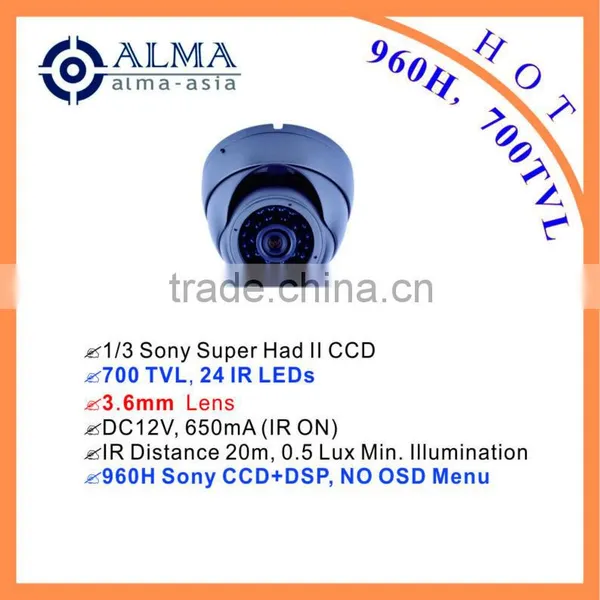

1/3 SONY EFFIO-E 700TVL IR Dome Camera

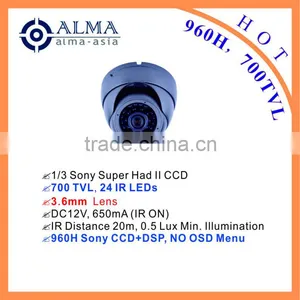

1/3 SONY EFFIO-E 700TVL IR Dome Camera thumbnail-1
1/3 SONY EFFIO-E 700TVL IR Dome Camera photo-1
US$ 1 - 25 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ALMA
Model Number:
IR9824IN-CB
Contact Supplier Request Quote Chat Now
Alma Technology Sdn. Bhd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ALMA
Model Number IR9824IN-CB
Type Analog Camera
Style Dome Camera
Sensor CCD
Technology Infrared

Specifications

ALMA Smart IR
ALMA WRP (Wide Range Power 9-18V)
960H Sony CCD+DSP
UTC-CB (Up-The-Coax OSD Control Box Solution)

Description

> 1/3 SONY Exview HAD CCD ; 700TVL
> Smart IR, Day & Night, IR waterproof camera
> Aluminum alloy with good heat dissipation
> main module of wide voltage design (9-20V)
> high efficiency low loss IR LED 24's, projection distance 45-75 ft
> Lightning-Proof unit design
> Standard high-definition 3.6mm optical lens
> Double glass steel coating technology, dustproof maintenance-free
> Waterproof grade IP67
> 300mA/DC12V
> Line control OSD menu button
> Constant Current Source LED board

Specification

Model IR9824IN-CB
Image Pick-up Device 1/3 SONY Super HAD CCD II
Resolution 700 TVL
Min. Illumination 0.1 LUX
TV system NTSC / PAL
Pixels NTSC: 976 X 508     PAL: 976 X 596
Lens 3.6mm
Video Output 1.1Vp-p/75O, BNC
Function & Features
OSD Menu Yes
Language English, Japanese, French, Russian, Portuguese, Spanish, Simplified Chinese.
Lens Manual/Automatic
Shutter/AGC Shutter: Automatic/Fixed      AGC: ON/OFF
Day/Night Auto/Color/B&W
Backlight OFF/BLC/HLC
ATR Adaptor Tone-curve Reproduction: ON/OFF
White Balance ATW/PUSH/USER1/USER2/ANTI CR/MANUAL/PUSH LOCK
Noise Reduction 2D DNR: ON/OFF
Privacy Masking 4 Zones
Motion Detection 4 Zones
SYNC Internal Synchronous
IR Distance 45-75 ft
LED Quantity 24pcs F5 IR 850nm LED
Power Supply DC12V 300mA
Water Proof Rating IP67
Lightning-Proof Function Multiple Lightning Proof
Operation Temp. Temp. -15C to 50C  RH 85% Max
Dimension 94mm(D) x 67mm(H)
Weight 430g
