Home > Products > Special generator > 60Hz 440V 1100kva marine generator powered by Cummins KTA38-DM engine (50Hz/60Hz, 400V/440V/480V)

60Hz 440V 1100kva marine generator powered by Cummins KTA38-DM engine (50Hz/60Hz, 400V/440V/480V)

Name: 60Hz 440V 1100kva marine generator powered by Cummins KTA38-DM engine (50Hz/60Hz, 400V/440V/480V)
Brand: KTA38-DM
Availability: InStock

FOB Price

US$ 100,000 - 150,000 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	KTA38-DM
Model Number	1000kva marine generator	Output Type	AC Three Phase
Speed	1800rpm/min	Frequency	60Hz
Rated Power	1100kva	Rated Voltage	400V~480V
Rated Current	1584A

Product Description

1000KVA Cummins marine diesel generators ( KT38-DM)

Prime power type

(Emergency type, electric and air start)

(CCS/BV/ABS certificate)

Main technical data

Cummins marine engine

Every generator set is subjected to a comprehensivetest program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;

24V DC start motor;

Equipped with battery charger and 24V highperformance maintenance-free lead-acid startingbatteries and connecting with cables;

Equipped with industrial silencer and flexible exhaust hose;

Equipped with CHINT MCCB circuit breaker;

Designed to Comply with ISO8528/GB2820;

Powered by Cummins engine, Marathon alternator

Voltage

Phase

P.F

(COS)

Output

(Kva)

400/230V

0.8

1100

Remark

60Hz, 220, 380V, 460V, 480V, 600V can be produced as requirements.

Engine

Cummins marine diesel generator power capacity

Cummins Marine Diesel Generator Set Technical Data (50HZ)
Genset Type	Frequency 50Hz Power Factor0.8 (delay)400V 3Phase 3Wire				Rate Fuel Consumption	Cummins Marine Series Engine Model(1500rpm)	Open frame Dimension(mm) LWH	N.W. (kg)
	Prime Power		Standby Power		Diesel (g/kwh)
	(KW)	(KVA)	(KW)	(KVA)	Diesel (g/kwh)
STM35	35	44	39	49	9.5	4BTA3.9-GM47	15607501190	1110
STM43	43	54	47	59	11.9	4BTA3.9-GM47	16407501190	1370
STM65	65	81	72	89	18	6BT5.9-GM80	19057501235	1400
STM75	75	94	83	103	19.8	6BT5.9-GM80	19057501235	1300
STM100	100	125	110	138	30	6CT8.3-GM115	21908001290	2200
STM125	125	156	138	172	31	6CTA8.3-GM155	22108001290	2200
STM145	145	181	160	200	34	6CTA8.3-GM155	2160*8001290	2230
STM200	200	250	220	275	57	NTA855-G 1M	29109561700	3680
STM250	250	313	275	344	70	NTA855-G 2M	29109561700	3800
STM300	300	375	330	413	76	KTA19-G 2M	31909201890	3996
STM360	360	450	396	495	93	KTA19-G 3M	31909201890	4096
STM400	400	500	440	550	104	KTA19-G 4M	31909201890	4245
STM500	500	625	550	688	136	KT38-GM	410012322332	10360
STM600	600	750	660	825	166	KTA38-G 2M	415012322332	13360
STM800	800	1000	880	1100	213	KTA38-G 5M	415012322132	15360

60HZ can be supplied as customers' requirements

Alternator

Alternator brand	Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII…
Prime power	1100kva
Frequency/speed	50HZ/1500rpm (60Hz/1800rpm)
Exciter type	Single bearing, Brushless, Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation Grade	H
Protection Grade	IP23

Control panel

The control module gives digital readouts of:

Generator voltage;

Output frequency;

Engine speed;

Battery voltage;

Engine hours run.

The control module has indicators for failure

information:

Overspeed/underspeed,

Emergency stop

Low oil pressure;

High water temperature

Failure to start

Battery charger failure

Automatic shutdown occurs under:

Low engine oil pressure;

High engine water temperature;

Overspeed/underspeed;

Failure to start after three attempts.

Pictures FYI

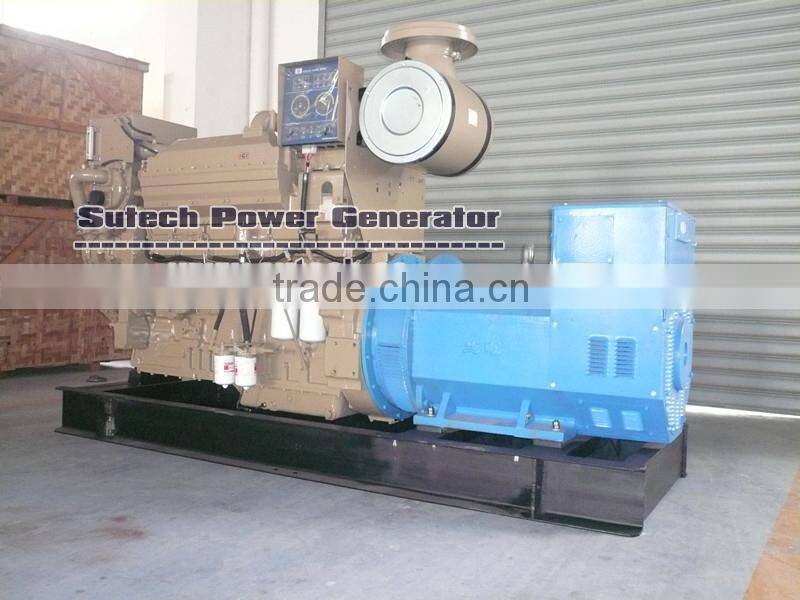

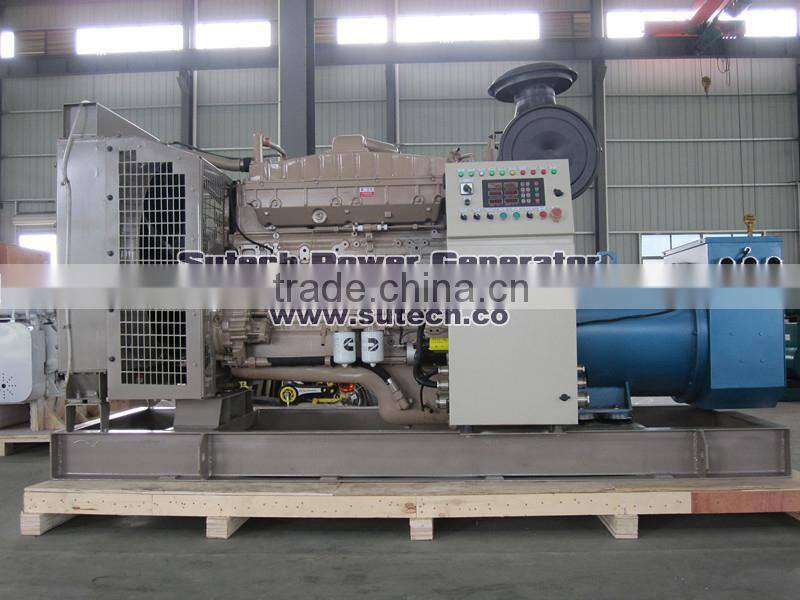

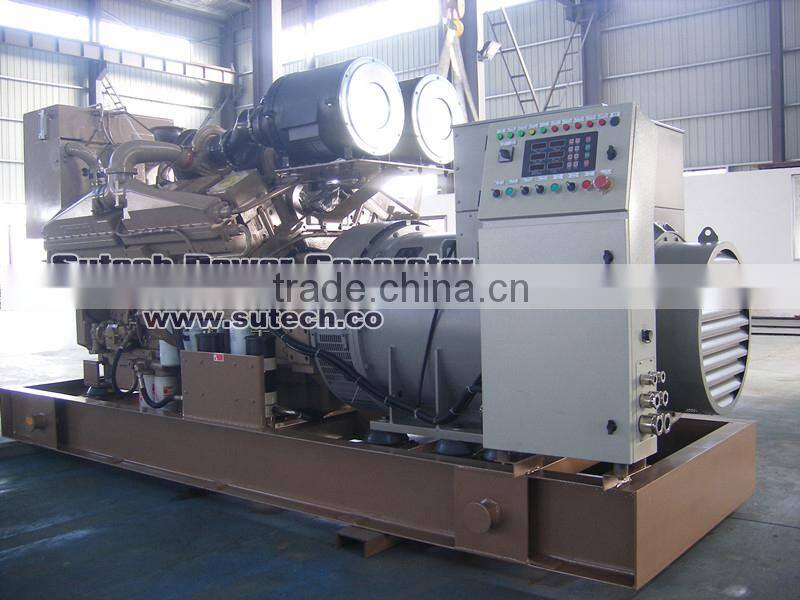

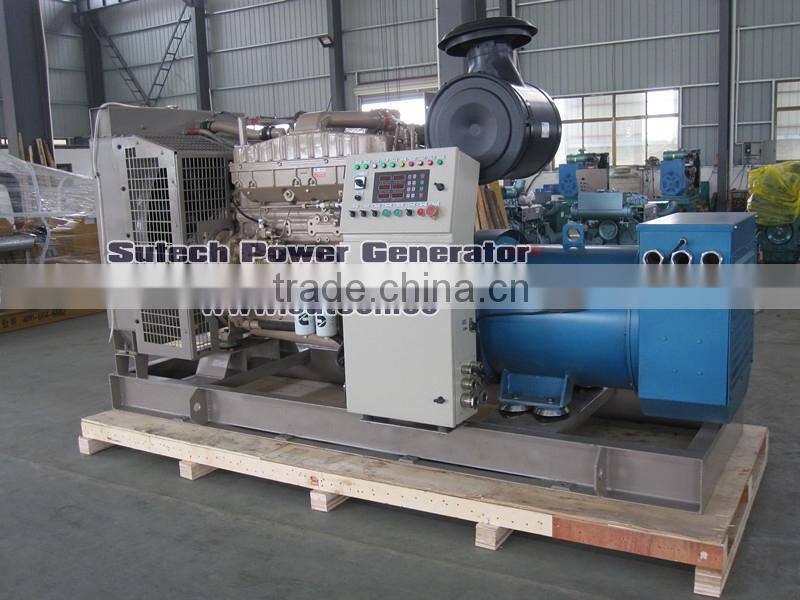

Prime power type, cooled by heater exchanger

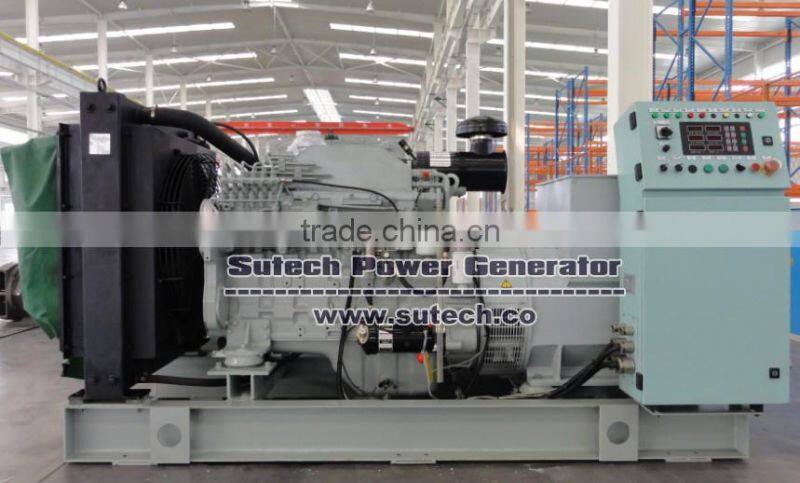

Emergency type, cooled by radiator, it's electric and air start

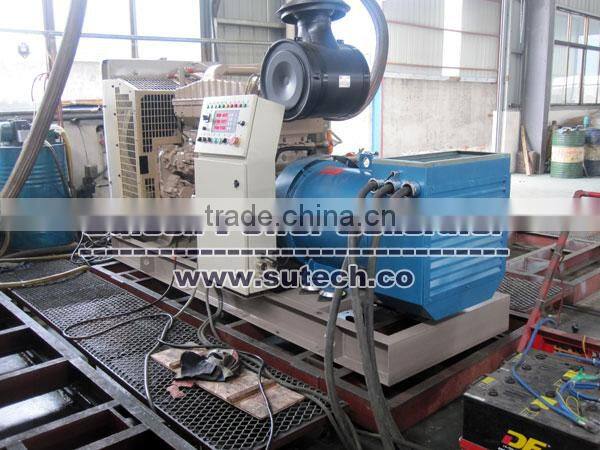

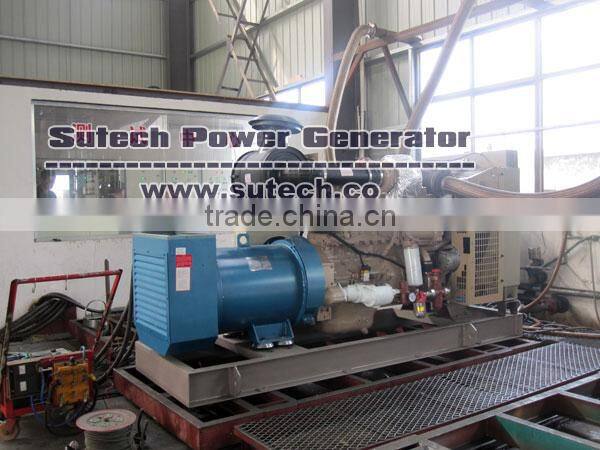

Testing
