Home > Products > Accessory equipment > High efficiency vibrating sieve for sunflowerseed
High efficiency vibrating sieve for sunflowerseed
- 500 Set / Sets per Month
- Qingdao/ Shanghai/ Tianjin
- T/T D/P D/A Credit Card PayPal
Product Details
Type: | Vibrating screen | Use: | Cleaning materials | Certification: | ISO, BV, SGS, CE |
Place of Origin: | Henan, China | Brand Name: | Dingsheng Brand | Model Number: | TQLZ100*100 |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Zhengzhou Dingsheng Machine Manufacturing Co., Ltd., located in Zhengzhou City (capital of Henan Province),
is a joint-stock enterprise. Established in 2002, mainly engaged in oil engineering R&D,
equipment manufacture, installation commissioning and training services.
We seize more business opportunities in the competition at any time, to create greater value
for you and the society. Our team, which is highly skilled, is ready to serve you in 24 hours.
High efficiency vibrating sieve for sunflowerseed
The vibrating screen is used primarily for grain cleaning in the milling of wheat, durum, corn (maize), rye, soybeans, oats, buckwheat, spelt, millet and rice as well as in storage elevators. It separates coarse and fine impurities from grain via screening and classifies a broad range of materials according to size. In addition to its main field of application, the classifier is also employed successfully in feed mills, seed cleaning plants, oilseed cleaning and cocoa bean grading plants.
Mainly Features of the Vibrating sieve :
1. TQLZ series wheat seed cleaning machine, grain vibrating sieve is suitable for the precleaning and cleaning process in milling, oil, brewing, rolling rice, feed and chemicalin dustry in the grain warehouse. By changing the different sieve plate.
2. This machine is an ideal cleaning equipment with simple structure, stable operation, good cleaning effect, high yield, small volume, and low energy consumption, low noise and other advantages.
3.. When using the machine, it can also configure the vertical separator suction, suction can separate materials to make the light impurities and dust to further clean-up. In addition, the suction can be adjusted according to the situation of impurities to get the desired effect of wind election.
4. The configuration of a suction separatorcan separate the light impurities and dust. According to the situation of containing impurities to adjust ,it can make better effect.

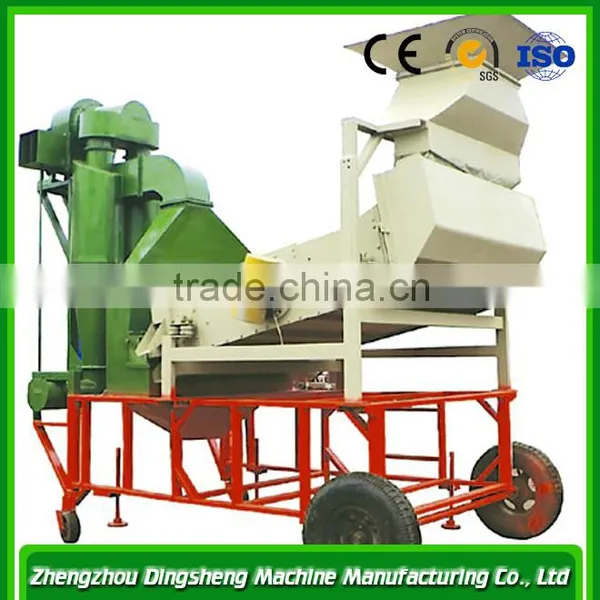

Main machine pictures :
Mainly Parameters of the Vibrating sieve :
Parameter | Size of screen
| Cleaning wheat yield (t/h) | vibration | power | weight | speed | Dimension (mm) | |
Type | cm | precleaning | cleaning | mm | kw | kg | 920 | L*W*H |
TQLZ60*100 | 60*100 | 12 | 4 | 5-5.5 | 2*0.25 | 350 | 921 | 1650*1560*1460 |
TQLZ100*100 | 100*100 | 20 | 7 | 5-5.6 | 2*0.25 | 410 | 922 | 1650*1620*1460 |
TQLZ100*150 | 100*150 | 30 | 11 | 5-5.7 | 2*0.37 | 510 | 923 | 2150*1620*1460 |
TQLZ100*200 | 100*120 | 40 | 14 | 5-5.8 | 2*0.37 | 520 | 924 | 2650*1620*1460 |
TQLZ150*150 | 150*150 | 45 | 16 | 5-5.9 | 22*0.75 | 620 | 925 | 2150*2160*1460 |
TQLZ150*200 | 150*200 | 60 | 22 | 5-5.10 | 22*0.75 | 660 | 926 | 2650*2160*1460 |
TQLZ180*200 | 180*200 | 72 | 26 | 5-5.11 | 2*1.1 | 980 | 927 | 2750*2520*1985 |
TQLZ200*200 | 200*200 | 80 | 30 | 5-5.12 | 2*1.1 | 1080 | 928 | 2750*2720*1990 |
Suitable clearning materials :
1.Ensure that one-time installation debugging acceptance.
2.To provide high quality material with preferential price.
3.Priority to provide customer our new craftworks and products.
4.Free training technological operator to ensure the trained staff can operate independently.
5.In the installation process,we will appoint an installation supervision staff on the spot.
6.We will offer an experienced project manager, organize a good installation team for the work
of field installation debugging.
Customer visiting our factory :
How long is the warranty period? ----------------------------one year
How long is the manufacturing cycle? ----------------------7-15 days
What time is the installation time?----------------------------depend on customer time
What packing ?----------------------------------------------------wooden packing
How to solve the problem?--------------------------------------directly contact to salesman
How longit take to product oil refinery line?-----------------30 days
If you want to know more about our machinery, please contact us freely.
