Semi-automatic bottle filling machine :
1.Power:3.58kw
2.Edible oil filling machine
3.Filling-capping-labeling-packing

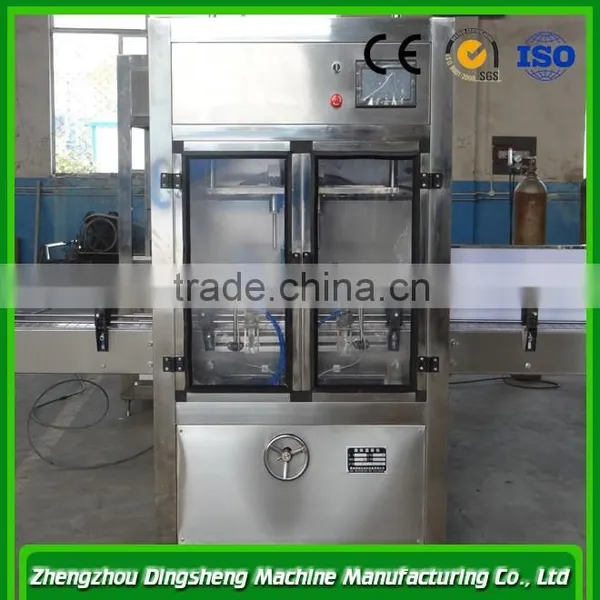

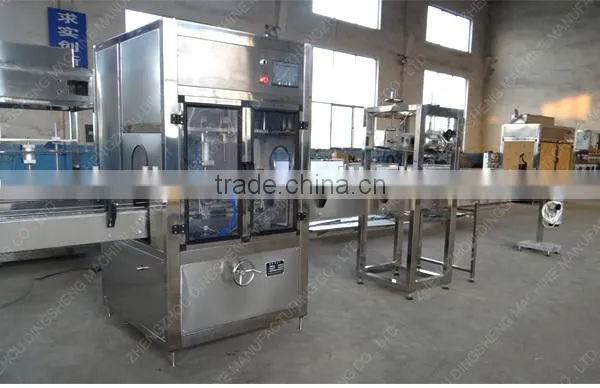

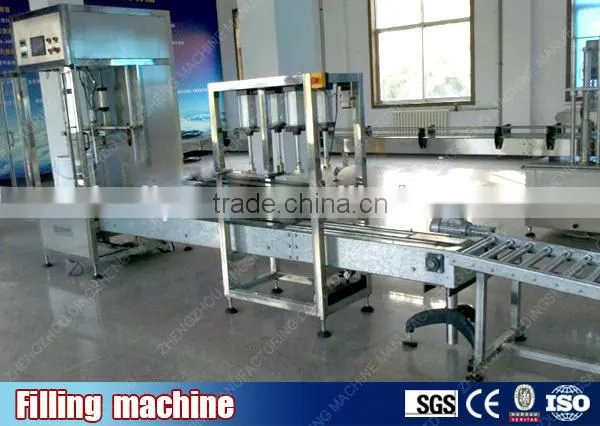

Semi-automatic oil filling bottling machine
Semi-automatic bottle filling machine Appliaction:
1. This type of oil filling machine is mainly suitable for all sorts of viscous and nonviscous, erosive liquid, such as plant oil chemical, liquid, daily chemical industry.
2. This machine integrates filling and capping in one machine.
3. This Liquid Filling Machine adopts low vacuum filling to ensure filling accurately without bubble of leakage.
4. Cap screwing device adopts assorted magnetic pieces-structure to avoid damaging the cap when screwing it on the bottle.
5. The machine will do filling and cap-screwing when there are bottles on the work position and it will not do filling and cap-screwing when there is not any bottle.
6. It needs to change the bottle conducting board when another kind of bottle is used in production.
7. The machine is easy to operate and to change for different kinds products.
8. It is applicable to the production of glass bottle and plastic bottles.

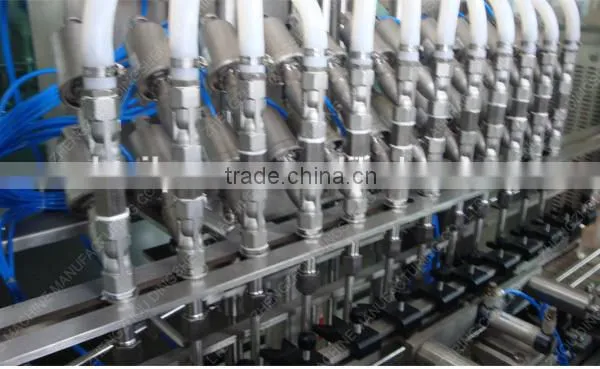

9. Using microcomputer PLC programmable control system of MITSUBISHI, air course system using AIRTAC Taiwan production, SUS304 material for filling valve Material of the filling valve can also be customized according to customer requirements to ensure quality of the filling machine.
10. It has applied German technique on photoelectric sensors.
11. There is a switch for step progressive type supply and continuous supply. It can be set optionally.
12. It can be installed with the CIP cleaning system according to customer requirement.
Semi-automatic bottle filling machine technical parameter:
Model | Filling number | Capping number | Production capacity Bottle per hour(1L) | Applicable bottle specifications (mm) | Power(kw) | oil filling machine Dimension(mm) |
GZS12/5 | 12 | 5 | 3000-4000 | 0.25L-2L 50-108 mm H=170-340mm | 3.58 | 2100x1400x2300 |
GZS16/6 | 16 | 5 | 5000-6000 | 3.58 | 2460x1720x2350 | |
GZS18/6 | 18 | 6 | 7000-8000 | 4.68 | 2800x2100x2350 | |
GZS24/8 | 24 | 8 | 9000-10000 | 4.68 | 2900x2500x2350 | |
GZS32/10 | 32 | 10 | 12000-14000 | 6.58 | 3100x2800x2350 | |
GZS40/12 | 40 | 12 | 15000-18000 | 6.58 | 3500x3100x2350 |
When you send inquiry,please also including the capacity ,bottles shape and bottle volume you need to work in the mahchine, it is easy and accurate for me to recommand proper machine model.our engineers can also design the machines according to your requirement.
