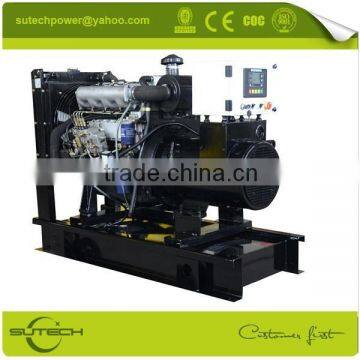

10Kva to 60Kva Yangdong Diesel Generator, High Quality and Low Price, Water Cooled
Specifications
Yangdong diesel generator from 10Kva to 60KvaTWGII alterantor
Deepsea control panel
High quality
Reasonable price

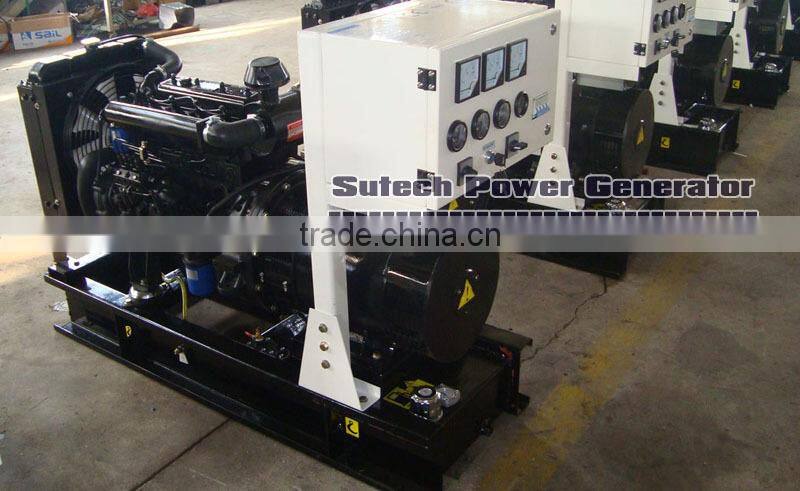

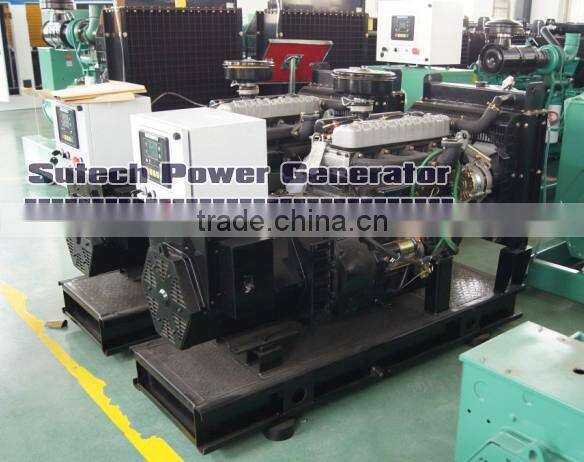

10Kva~60Kva Yangdong diesel generators

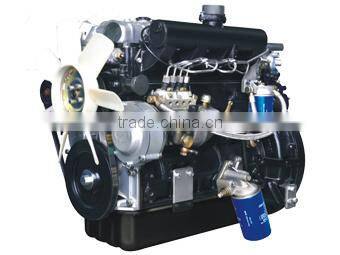

Yangdong engine
Every generator set is subjected to a comprehensivetest program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;
24V DC start motor;
Equipped with battery charger and 24V highperformance maintenance-free lead-acid startingbatteries and connecting with cables;
Equipped with industrial silencer and flexible exhaust hose;
Equipped with CHINT MCCB circuit breaker;
Designed to Comply with ISO8528/GB2820;
Powered by Yangdong engine,Controlled by Deepsea panel
Voltage | HZ | Phase | P.F (COS) | Output (KVA) |
400/230V | 50 | 3 | 0.8 | 10Kva to 60Kva |
Remark | 60Hz, 220, 380V, 460V, 480V, 600V can be produced as requirements. | |||
Yangdong diesel generator power capacity
| Rated Power (kw) | 8 | 10 | 12 | 15 | 20 | 24 | 30 | ||
| GENERATOR | Type | Brush or Brushless Alternator | |||||||
| Cont.A C output (Kw) | 7.5 | 9 | 11 | 13 | 17 | 23 | 27 | ||
| Max.output(Kw) | 8 | 10 | 12 | 15 | 20 | 25 | 30 | ||
| Voltage (V) | 220~ 240/110~ 120 400/230V | ||||||||
| Power Factor | 1 for one phase and 0.8 for three phase | ||||||||
| Exictation System | Self-excitation & Brushless or Brush | ||||||||
| ENGINE | Model | Y385G | YD480G | YD1485G | YSD490G | Y490D | Y4100G | Y4102G | |
| Displacement (L) | 1.357 | 1.532 | 1.809 | 2.156 | 2.672 | 3.76 | 3.76 | ||
| Bore×stroke (mm) | 80*90 | 85*90 | 80*90 | 85*95 | 90*105 | 102*115 | 105*115 | ||
| Starting system | 12V or 24V Electric Starting | ||||||||
| Cooling method | Closed/Open circle water-cooied | ||||||||
| Firing order | 2001/3/2 | 1-3-4-2 | |||||||
| Compression Ratio | 22.5 | 22 | 18 | 18 | 18 | 19 | 19 | ||
| Specific fuel consumption | ≤265 | ≤262 | ≤249 | ≤245 | ≤243 | ≤258 | ≤258 | ||
| (g/kW .h) | |||||||||
| Steady speed regulation | ≤5% | ||||||||
| Instantaneous speed regulation | ≤10% | ||||||||
| Steady speed time(s) | ≤5 | ||||||||
| Fluctation rate of speed | ±0.5% | ||||||||
| DIMENSIONS | Fuel tank capacity (L) | 100 | |||||||
| ing time (h) | 45 | 35 | 32 | 25 | 20 | 15 | 12 | ||
| Overall dimensions (L×W×H)(mm) | 1650*900*1000 | 1800*900*1000 | |||||||
Alternator brand | Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII… |
Prime power | 62.5Kva~825Kva |
Frequency/speed | 50HZ/1500rpm (60Hz/1800rpm) |
Exciter type | Single bearing, Brushless, Self-excited |
Power factor | 0.8 |
Voltage adjust range | ≥5% |
Voltage regulation NL-FL | ≤±1% |
Insulation Grade | H |
Protection Grade | IP23 |
The control module gives digital readouts of:
Generator voltage;
Output frequency;
Engine speed;
Battery voltage;
Engine hours run.
The control module has indicators for failure
information:
Overspeed/underspeed,
Emergency stop
Low oil pressure;
High water temperature
Failure to start
Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure;
High engine water temperature;
Overspeed/underspeed;
Failure to start after three attempts.
Sutech Power Co., Ltd
No.18 Hailing Industry Park, Taizhou City, Jiangsu Province, China
Mobile: +86-15161006661
Tel: +86-523-86282985
Skype: stmeco
G-talk: sutech.power
Send Inquiry to This Supplier
