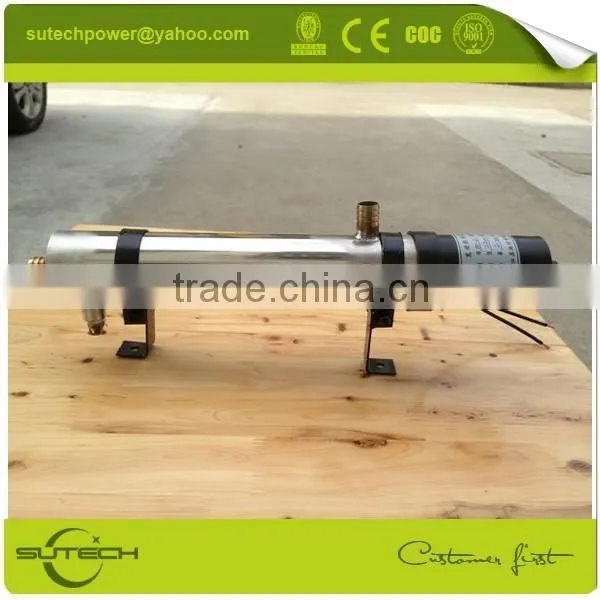

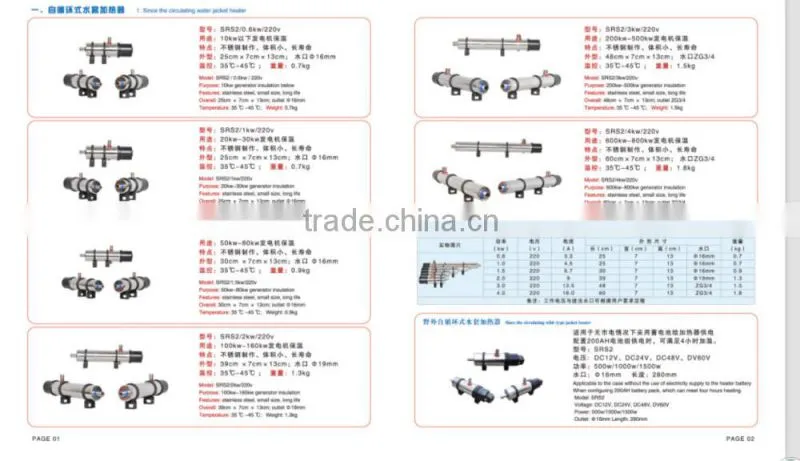

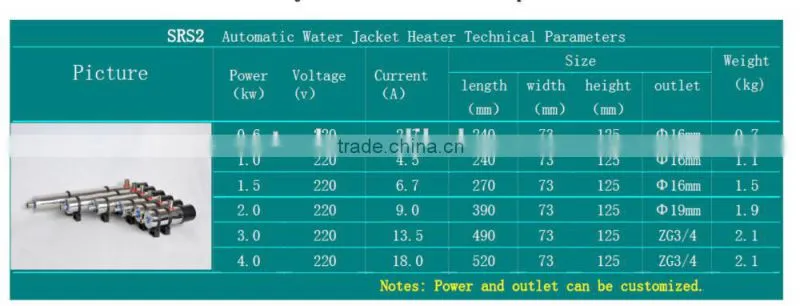

water jacket heater 0.6kw, 1kw, 1.5kw, 2kw, 3kw and 4kw for diesel engine

Manual cycling water jacket heater is designed for high power engines. The high power of the heater brings up temperature quickly. The specially designed water pump speeds up the water circulation, therefore significantly improves the heating effect. The adjustable temperature controller in the control system enables customers to adjust the temperature range flexibly.

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

This product is widely used in generators such as MTU, Cummins, perkins, katebite, Volvo, diesel 135, jichai 190, weichai steyr and air-conditioning power truck.. It preheats and protects the generator from low temperature.
Its advantages: small size, perfect design, heating fast, long lifetime. It also has automatic temperature controller and over-heating security system

Installation of Water Jacket Heater
1) clear out the cooling water.
2) select a suitable position on the base beam of the engine, use a bolt to stabilize the heater on the base beam. Keep the water outlet up.
3) Use a rubber pipe to connect the water inlet (horizontal interface) with the lower pipe of the water tank. Then connect the water outlet (vertical interface) and the upper water hole in the engine. Fasten the clamp on the rubber pipes to prevent water leak.
4) Open the back cover of the heater, connect the power line and earth line to the terminals respectively. Close the cover.

5) Check the arrangement and installation of the heater and pipes make sure all components are installed stably.
6) Fulfill the cooling water and start the engine (for about two minutes), this is to fully circulate the cooling water in the engine, thus to clear the air in the heater body. At he same time, check the entire set to make sure there is no water leaking. Connect the electricity of the heater when the engine stops. Now the heater should be in working mode. The temperature above the water outlet of the heater should be increased, which can be felt by hand. If not, cut the electricity immediately, clear the air in the heater again before
