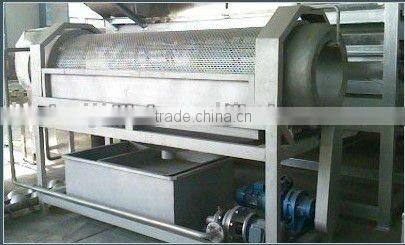

Fruit and Vegetable Roller Type Washer

Summary

roller washer is especially for washing such as product,carrot,potato,root fruit and vegetable

The equipment is composed of speed reducer,water pump,roller,support,supporting wheel,scrubbing brush,spray water tube,hoppe,cover plate,water tank,valve,transmission shaft,motor rack etc.

Specifications

The machine composed of frame,transmit motor,transmit cover,drum, pipeline shower, sprinkler,water tank etc part. The main structure with 3-5 incline degree. While running,the drum driven by reducer,and fruit enter into the chamber evenly by elevator. There are liner spiral install inside drum plate which by perforated,to make sure the material rotate with drum and move forwar,at the same time dust flushing away by above sprinkler, sewage flow to below water tank and filtrate by screen,then return for washing again through water pump with high cleanless and water save function.

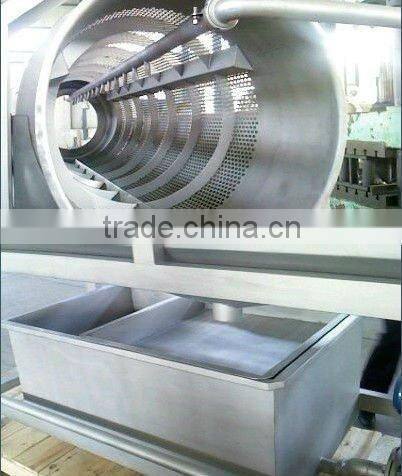

The fruit rolling inside with the roller,at the same time washing by high pressrure water jet to get clean,and there is spiral scrape or angle of lead existing to move material forward.

Below the body,there is water tank,and water be reused after being filtered by the filter screen

Technical Parameter:
