Help CenterDYJ Belt Type Filter Belt Juice Machine
Related Products
-
300 Unit per Minute Automic Orange Juicing MachineUS$ 3,000 - 9,000MOQ: 1 Set -
250 Unit per Minute Automic Orange Juicing MachineUS$ 3,000 - 9,000MOQ: 1 Set
-
200 Unit per Minute Automic Orange Juicing MachineUS$ 3,000 - 9,000MOQ: 1 Set
-
150 Unit per Minute Automic Orange Juicing MachineUS$ 3,000 - 9,000MOQ: 1 Set
-
100 Unit per Minute Automic Orange Juicing MachineUS$ 3,000 - 9,000MOQ: 1 Set
filter belt press

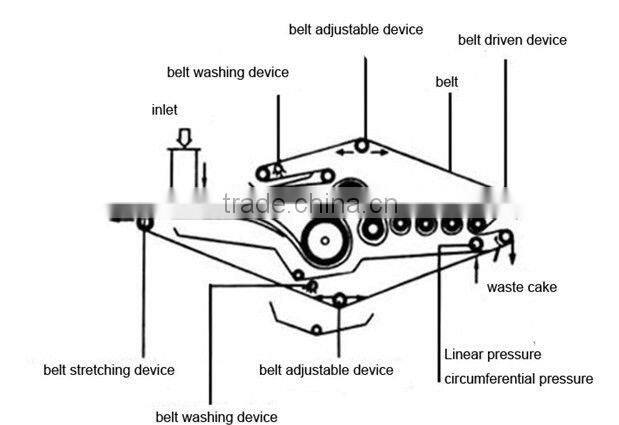

Working principle:
After raw materials (solid-liquid mixture)grinded and pump to feed hopper(bandwidth adjustable), under the “L” shape pressure between roller and roller to press water out.and let juice flow from belt side, the roller diameter decrease progressively and “S” shape belt generate shear force to make sure high efficient dewater. The waste cake then scrape off by blade.the two pieces belt is washing always by high pressure sprinkler to guarantee the pressing effect. The washing water filtrate from arc net filter and recycle by the pump. While running,the pressure belt is controlled by air bag and deviation correcting system to keep feeding steady and no overflow, safe and automatically.
Model |
DYJ-3 |
DYJ-5 |
DYJ-10 |
DYJ-20 |
|
Capacity t/h |
3 |
5 |
10 |
20 |
|
Power Kw |
10.0 |
21.18 |
22.25 |
39.87 |
|
Linear Speed of filter belt m/min |
8 |
8 |
8 |
8 |
|
Main transmission speed r/min |
5 |
5 |
5 |
5 |
|
Feeder height mm |
1500 |
1900 |
2000 |
1920 |
|
Size mm |
3000x1400x1800 |
4000x2000x2505 |
5000x2500x2505 |
5400x3380x2505 |
|
Central unit powerKw |
1.5 |
3 |
4 |
5.5 |
|
Material Roller Power Kw |
|
0.18 |
0.25 |
0.37 |
|
Compressed air |
Pressure Mpa |
0.7 |
0.7 |
0.7 |
0.7 |
Consumption m3/h |
1 |
1 |
1 |
1 |
|
Reflowing pump |
Power Kw |
3 |
3 |
3 |
4 |
Flow m3/h |
16 |
16 |
16 |
32 |
|
Lift m |
20 |
20 |
20 |
20 |
|
Cleaning pump |
Power Kw |
5.5 |
15 |
15 |
15x2 |
Flow m3/h |
16 |
16 |
16 |
16x2 |
|
Lift m |
165 |
165 |
189 |
189x2 |
|
