Hot sale silent 280kw NTA855-G1B generator with 8 hours' base fuel tank

Name: Hot sale silent 280kw NTA855-G1B generator with 8 hours' base fuel tank
Brand: Sutech
Price: USD $15,000 - 25,500 / Set

FOB Price

USD $15,000 - $25,500 / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Port Shanghai
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Jiangsu, China	Brand Name:	Sutech	Model Number:	NTA855-G1B
Output Type:	AC Three Phase	Speed:	1500rpm/min	Frequency:	50Hz
Rated Power:	280kw	Rated Voltage:	380/220V	Rated Current:	504A

Product Description

280kw silent diesel generator (Engine model: NTA855-G1B)

Main technical data

Cummins engine-NTA855-G1B

Every generator set is subjected to a comprehensivetest program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;

24V DC start motor;

Equipped with battery charger and 24V highperformance maintenance-free lead-acid startingbatteries and connecting with cables;

Equipped with industrial silencer and flexible exhaust hose;

Equipped with CHINT MCCB circuit breaker;

Designed to Comply with ISO8528/GB2820;

Powered by Cummins engine,Controlled by Deepsea panel

Voltage

Phase

P.F

(COS)

Output

(KVA)

400/230V

0.8

350

Remark

60Hz, 220, 380V, 460V, 480V, 600V can be produced as requirements.

Engine

Cummins 350KVA diesel generator engine data

Engine Model	NT855-G1/B
Engine manufacturer	Cummins
Number of Cylinders	6 cylinders
Cylinders arrangement	Vertical in line
Cycle	4 stroke
Aspiration	Turbocharged and after water cooled
Bore×Stroke	140mm x152mm
Displacement	14L
Compression ratio	14.0:1
Base Power/Speed	284KW / 1500rpm
Speed Governor	electrical
Cooling System	Forced water cooling cycle
Steady speed droop	≤1%
Total lubrication system capacity	38.6L
Coolant capacity (engine only)	20.8 L
Fuel Consumption at 100% Load	196 g/kw.h
Starter Motor	DC24V,
Alternator	AC24V

Alternator

Alternator Model	HCI444D
Prime power	312.5Kva
Frequency/speed	50HZ/1500rpm
Exciter type	Single bearing, Brushless, Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation Grade	H
Protection Grade	IP23
Phase / wire	3 phase 4 wires

Control panel

The control module gives digital readouts of:

Generator voltage;

Output frequency;

Engine speed;

Battery voltage;

Engine hours run.

The control module has indicators for failure

information:

Overspeed/underspeed,

Emergency stop

Low oil pressure;

High water temperature

Failure to start

Battery charger failure

Automatic shutdown occurs under:

Low engine oil pressure;

High engine water temperature;

Overspeed/underspeed;

Failure to start after three attempts.

Pictures FYI

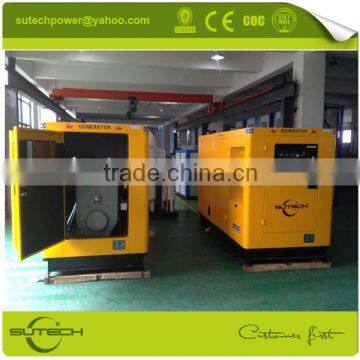

280kw generator

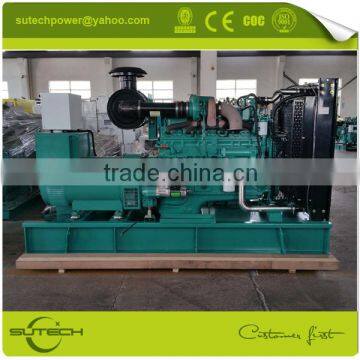

280kw diesel generator (Testing)

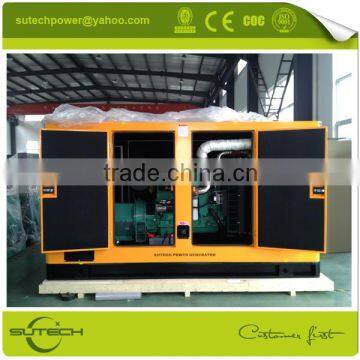

280kw diesel generator (Silent), powered by Cummins engine

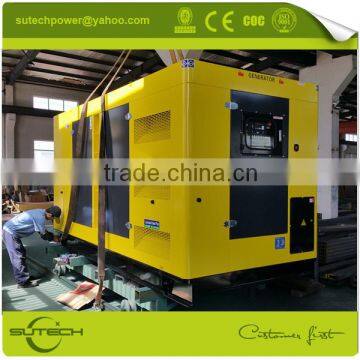

280kw diesel generator (Shipping)

Sutech Power Co., Ltd

No.18 Hailing Industry Park, Taizhou City, Jiangsu Province, China

Mobile: +86-15161006661

Tel: +86-523-86282985

Skype: stmeco

G-talk: sutech.power

Contact Us

Taizhou Sutech Power Machinery Co., Ltd.: Contact nameXia Zhang; Phone0086-523-86282985; AddressNO.18 Co-construction Area, Hailing Industry Park, Taizhou City Taizhou,Zhejiang
