250Kva electricity generators for homes (Engine model: NT855-GA)
Cummins engine-NT855-GA
Voltage | HZ | Phase | P.F (COS) | Output (KVA) |
400/230V | 50 | 3 | 0.8 | 250 |
Remark | 60Hz, 220, 380V, 460V, 480V, 600V can be produced as requirements. | |||
Cummins 250kva diesel generator engine data
Engine Model | NT855-GA |
Engine manufacturer | Cummins |
Number of Cylinders | 6 cylinders in line |
Cycle | 4 stroke |
Aspiration | Turbocharged and after water cooled |
Bore×Stroke | 114mm * 145mm |
Displacement | 8.9L |
Compression ratio | 17.0:1 |
Prime Power/Speed | 231KW / 1500rpm |
Standby Power/Speed | 254KW / 1500rpm |
Speed Governor | Electrical |
Cooling System | Forced water cooling cycle |
Steady speed droop | ≤1% |
Total lubrication system capacity | 27.6L |
Coolant capacity (engine only) | 11.1L |
Fuel Consumption at 100% Load | 197g/kw.h |
Starter Motor | DC24V, |
Alternator | AC24V |
Alternator brand | Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII… |
Prime power | 250Kva |
Frequency/speed | 50HZ/1500rpm (60Hz/1800rpm) |
Exciter type | Single bearing, Brushless, Self-excited |
Power factor | 0.8 |
Voltage adjust range | ≥5% |
Voltage regulation NL-FL | ≤±1% |
Insulation Grade | H |
Protection Grade | IP23 |
The control module gives digital readouts of:
Generator voltage;
Output frequency;
Engine speed;
Battery voltage;
Engine hours run.
The control module has indicators for failure
information:
Overspeed/underspeed,
Emergency stop
Low oil pressure;
High water temperature
Failure to start
Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure;
High engine water temperature;
Overspeed/underspeed;
Failure to start after three attempts.

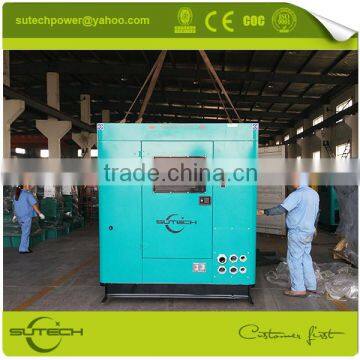

250Kva Cummins diesel generator
250Kva Cummins diesel generator (Testing)
250Kva Cummins diesel generator (Silent)

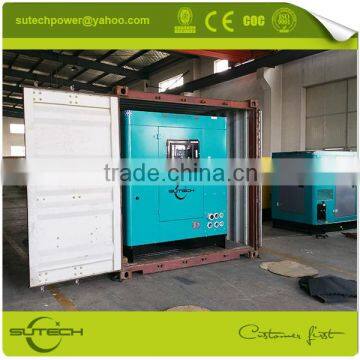

250Kva Cummins diesel generator (Shipping)
