CE BV Approved high quality China diesel generator manufacturer

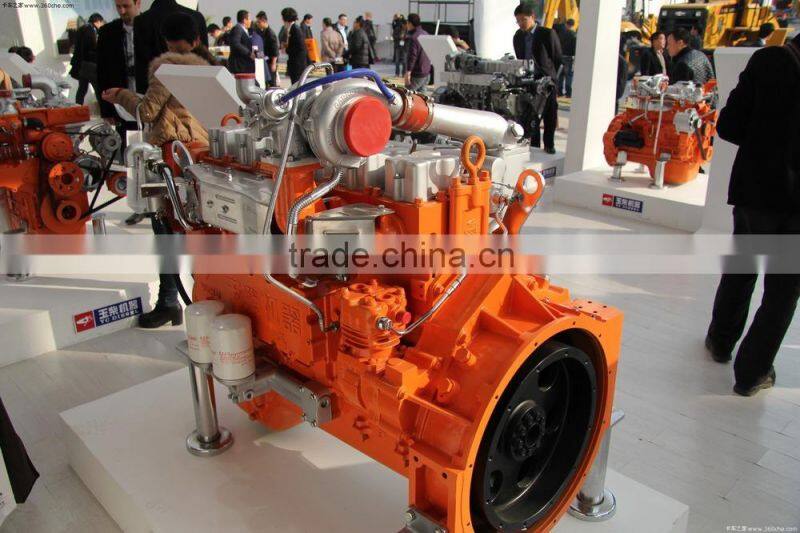

Yuchai engine
Powered by Yuchai engine,Controlled by Deepsea panel
Voltage | HZ | Phase | P.F (COS) | Output (KVA) |
400/230V | 50 | 3 | 0.8 | 22.5~1000 |
Remark | 60Hz, 220, 380V, 460V, 480V, 600V can be produced as requirements. | |||
Yuchai diesel generator power capacity
| Model | Prime power | Engine model | No.of cyls | Bore/stroke (mm) | Fuel Cons. (g/kwh) | Dimension (L*W*H) (mm) | Weight(kg) | |
| KW | KVA | |||||||
| ST-Y18GF | 18 | 22.5 | YC2108D | 2 | 108×120 | 225 | 1600*700*1000 | 600 |
| ST-Y24GF | 24 | 30 | YC2115D | 2 | 115×120 | 220 | 1600*700*1000 | 650 |
| ST-Y30GF | 30 | 37.5 | YC2115ZD | 2 | 108×115 | 205 | 1700*750*1000 | 900 |
| ST-Y40GF | 40 | 50 | YC4D60-D21 | 4 | 108×115 | 205 | 1800*750*1200 | 920 |
| ST-Y50GF | 50 | 62.5 | YC4D85Z-D20 | 4 | 108×115 | 200 | 1800*750*1200 | 950 |
| ST-Y64GF | 64 | 80 | YC6B100-D20 | 6 | 108×125 | 205 | 2250*800*1300 | 1200 |
| ST-Y75GF | 75 | 93.75 | YC6B135Z-D20 | 6 | 108×125 | 202 | 2250*800*1300 | 1250 |
| ST-Y90GF | 90 | 112.5 | YC6B135Z-D20 | 6 | 108×125 | 202 | 2250*800*1300 | 1300 |
| ST-Y100GF | 100 | 125 | YC6B155L-D21 | 6 | 108×125 | 200 | 2300*800*1300 | 1500 |
| ST-Y120GF | 120 | 150 | YC6B180L-D20 | 6 | 108×132 | 192 | 2300*830*1300 | 1600 |
| ST-Y140GF | 140 | 175 | YC6A210L-D20 | 6 | 108×132 | 192 | 2300*830*1300 | 1700 |
| ST-Y150GF | 150 | 187.5 | YC6A230L-D20 | 6 | 108×132 | 192 | 2400*970*1500 | 2100 |
| ST-Y160GF | 160 | 200 | YC6G245L-D20 | 6 | 112×132 | 195 | 2500*970*1500 | 2300 |
| ST-Y180GF | 180 | 225 | YC6M285L-D20 | 6 | 113×140 | 197 | 2600*970*1550 | 2500 |
| ST-Y200GF | 200 | 250 | YC6M350L-D20 | 6 | 120×145 | 197 | 2900*970*1750 | 2750 |
| ST-Y220GF | 220 | 275 | YC6M350L-D20 | 6 | 120×145 | 197 | 3100*1100*1750 | 2800 |
| ST-Y250GF | 250 | 312.5 | YC6MK390L-D21 | 6 | 123×145 | 195 | 3200*1150*1750 | 3000 |
| ST-Y280GF | 280 | 350 | YC6MK420L-D20 | 6 | 123×145 | 195 | 3200*1150*1750 | 3000 |
| ST-Y300GF | 300 | 375 | YC6MJ480L-D20 | 6 | 131×145 | 195 | 3200*1200*1750 | 3100 |
| ST-Y320GF | 320 | 400 | YC6K500L-D30 | 6 | 129*155 | 195 | 3250*1200*1750 | 3200 |
| ST-Y350GF | 350 | 437.5 | YC6T550L-D21 | 6 | 129×165 | 195 | 3250*1250*1750 | 3250 |
| ST-Y400GF | 400 | 500 | YC6T600L-D22 | 6 | 145×165 | 195 | 3400*1500*1970 | 3900 |
| ST-Y440GF | 440 | 550 | YC6T660L-D20 | 6 | 145×165 | 195 | 3500*1500*1970 | 4000 |
| ST-Y630GF | 630 | 787.5 | YC6C1020L-D20 | 6 | 153×165 | 195 | 4000*1500*2000 | 5000 |
| ST-Y700GF | 700 | 875 | YC6C1020L-D20 | 6 | 200×210 | 195 | 4800*1800*2500 | 6500 |
| ST-Y750GF | 750 | 937 | YC6C1170L-D20 | 6 | 200×210 | 195 | 5000*2100*2500 | 7500 |
| ST-Y800GF | 800 | 1000 | YC6C1320L-D20 | 6 | 200×210 | 195 | 5200*2150*2500 | 780 |
Alternator brand | Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII… |
Prime power | 22.5Kva~1000Kva |
Frequency/speed | 50HZ/1500rpm (60Hz/1800rpm) |
Exciter type | Single bearing, Brushless, Self-excited |
Power factor | 0.8 |
Voltage adjust range | ≥5% |
Voltage regulation NL-FL | ≤±1% |
Insulation Grade | H |
Protection Grade | IP23 |
The control module gives digital readouts of:
Generator voltage;
Output frequency;
Engine speed;
Battery voltage;
Engine hours run.
The control module has indicators for failure
information:
Overspeed/underspeed,
Emergency stop
Low oil pressure;
High water temperature
Failure to start
Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure;
High engine water temperature;
Overspeed/underspeed;
Failure to start after three attempts.

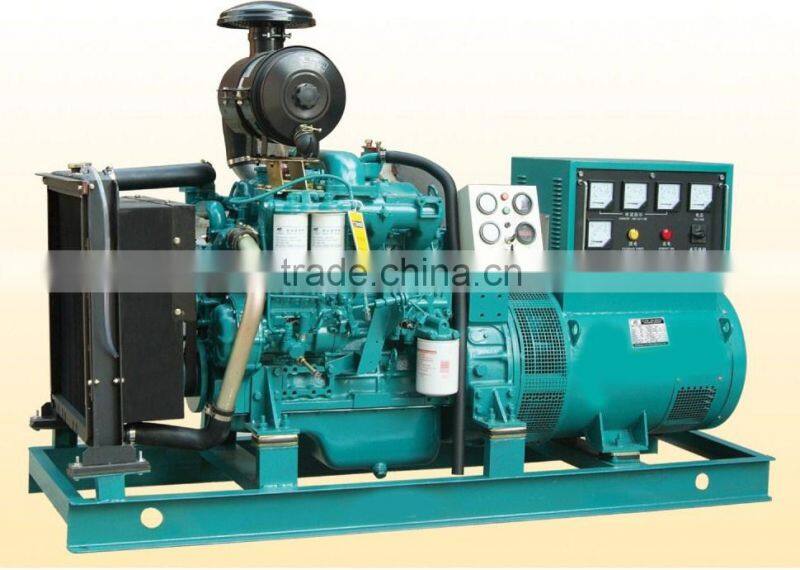

1000Kva Yuchai diesel generator
