Home > Products > 12Kw/15Kva~200Kw/250Kva diesel generators > Factory sale 50 kw open type generator 60hz with Cummins engine Quality Choice
Factory sale 50 kw open type generator 60hz with Cummins engine Quality Choice
- 100 Set / Sets per Month
- Shanghai
- T/T Credit Card
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | 50 kw generator | Model Number: | 4BTA3.9-G2 |
Output Type: | AC Three Phase | Speed: | 1800rpm/min | Frequency: | 60Hz |
Rated Power: | 50 kw | Rated Voltage: | 220/380V | Rated Current: | 90A |
Product Description
60HZ, Voltage:220/110 or 380/220V...
50 kw diesel generator (Engine model: 4BTA3.9-G2)
Cummins engine-4BTA3.9-G2
Every generator set is subjected to a comprehensivetest program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;
24V DC start motor;
Equipped with battery charger and 24V highperformance maintenance-free lead-acid startingbatteries and connecting with cables;
Equipped with industrial silencer and flexible exhaust hose;
Equipped with CHINT MCCB circuit breaker;
Designed to Comply with ISO8528/GB2820;
Powered by Cummins engine,Controlled by Deepsea panel
Voltage | HZ | Phase | P.F (COS) | Output (KW) |
220/110V | 60 | 3 | 0.8 | 50 |
Remark | 60Hz, 220, 380V, 460V, 480V, 600V can be produced as requirements. |
Cummins diesel generator power capacity
Engine Model | 4BTA3.9-G2 |
Number of Cylinders | 4 cylinders in line |
Cycle | 4 stroke |
Aspiration | Turbocharged |
Bore×Stroke | 102mm x120mm |
Displacement | 3.9L |
Compression ratio | 16.5:1 |
Prime Power/Speed | 50KW / 1800rpm |
Standby Power/Speed | 55KW / 1800rpm |
Speed Governor | Electrical |
Cooling System | Forced water cooling cycle |
Steady speed droop | ≤1% |
Total lubrication system capacity | 11 L |
Coolant capacity (engine only) | 7.9L |
Fuel Consumption at 100% Load | 216g/kw.h |
Starter Motor | DC24V, |
Alternator | AC24V |
Alternator brand | Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII… |
Prime power | 50kw |
Frequency/speed | 60Hz/1800rpm |
Exciter type | Single bearing, Brushless, Self-excited |
Power factor | 0.8 |
Voltage adjust range | ≥5% |
Voltage regulation NL-FL | ≤±1% |
Insulation Grade | H |
Protection Grade | IP23 |
The control module gives digital readouts of:
Generator voltage;
Output frequency;
Engine speed;
Battery voltage;
Engine hours run.
The control module has indicators for failure
information:
Overspeed/underspeed,
Emergency stop
Low oil pressure;
High water temperature
Failure to start
Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure;
High engine water temperature;
Overspeed/underspeed;
Failure to start after three attempts.

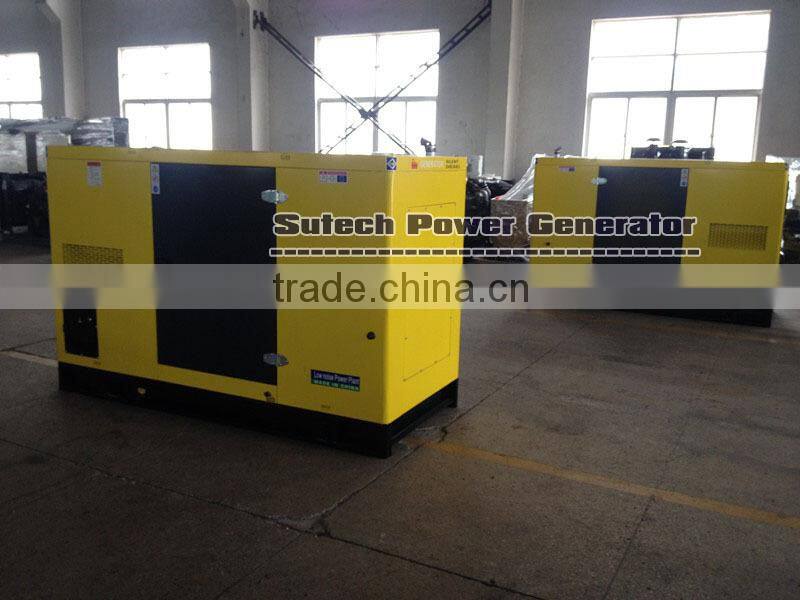

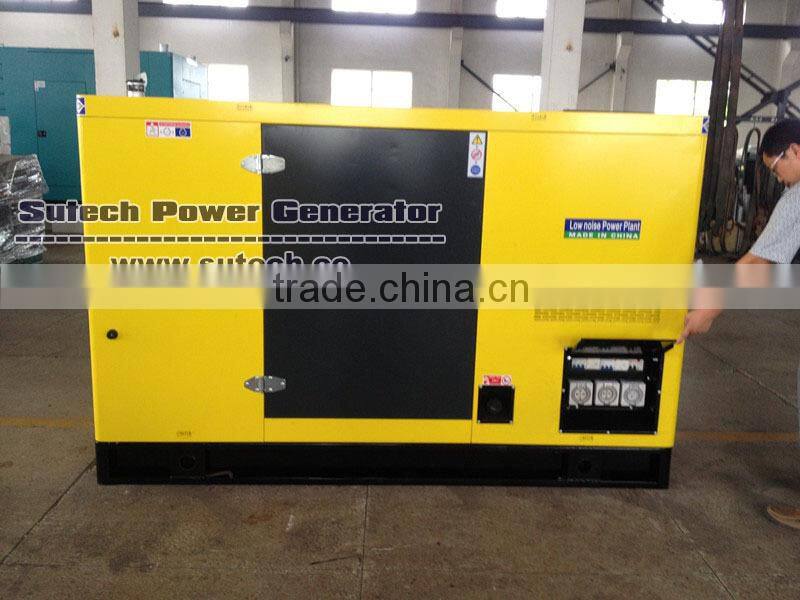

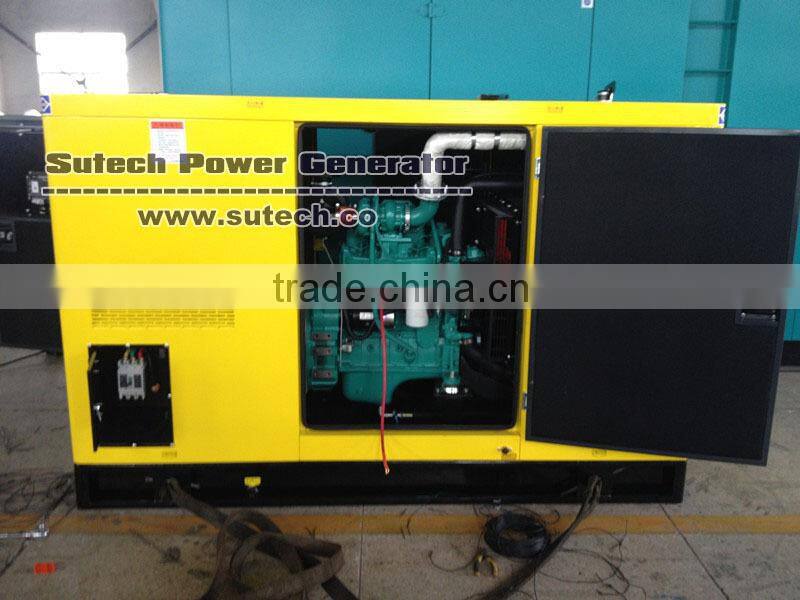

50kw Cummins silent diesel generator

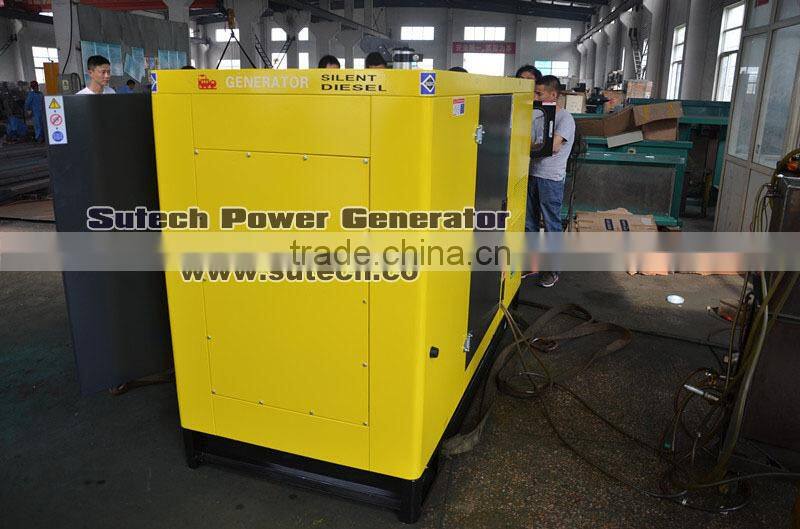

60Kva Cummins silent diesel generator (Testing)
60Kva Cummins silent diesel generator (Customer checking)
