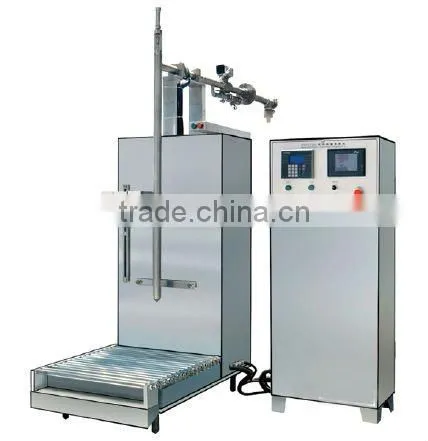

FW-300S Liquid Weighing Filling Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Other
Packaging Type:
Other, DRUM
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Application
Other
Packaging Type
Other, DRUM
Automatic Grade
Automatic
Power
0.5KW
Place of Origin
Jiangsu, China
Brand Name
no
Model Number
FW-300S
Specifications
It is a special designed filling machine with one filling nozzle, for liquid from 100kg to 300KgMajor characteristics:
This is a special designed filling machine with one filling nozzle, for liquid from 100kg to 300Kg, the filling nozzles can reach the bottom of barrel during filling, which can efficiently reduces foaming producing. This machine with the advantages such as: compact structure, high accuracy of quantative filling, large production, etc.
Technical parameter:
No |
Items |
Performance |
01 |
Power supply |
AC 380V; 50Hz
(may customized)
|
02 |
Power |
0.5 Kw |
03 |
Container mouth diameter |
≥ φ60 mm |
04 |
Container spec(max) |
Φ600mm × 930mm |
05 |
Filling range |
100kg~300kg |
06 |
Filling tolerance |
±0.2% F.S. |
07 |
Production Capacity |
40~60containers/hour |
08 |
Number of filling nozzle |
1 |
09 |
Pneumatic (air-operated) source |
0.6Mpa clean and stable compressed air |
10 |
working relative humidity |
< 95% (no condensation) |
11 |
working environment temperature |
0-40 °C |
12 |
material interface |
standard flange(material intake pressure:< 0.6 MPa) |
13 |
machine weight |
420kg |
14 |
machine dimension (L×W×H) |
800mm ×1700mm × 2100mm |
