S7620A Internal Thread Grinding Machine

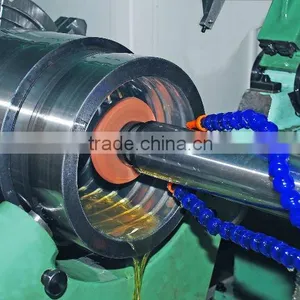

S7620A Internal Thread Grinding Machine thumbnail-1

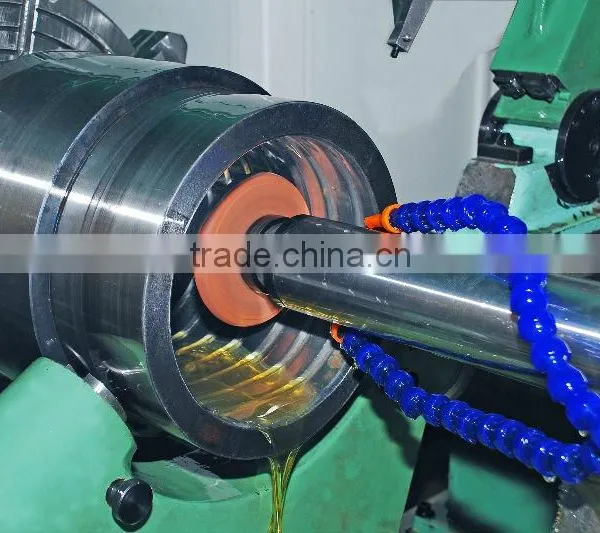

S7620A Internal Thread Grinding Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Internal Grinding Machine
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Shaanxi Hanjiang Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Internal Grinding Machine
CNC or Not Normal
Place of Origin Shaanxi, China
Brand Name HJMTC
Model Number S7620A

Specifications

It is intended to grind cylindrical or conical threads ,

Max I.D. × max. thread length

Φ200×125mm

Pitch to be ground



Metric system

1—24mm

British system

3/1″--20/″

Max. length of thread ground



Conical(1:16,1:4)

80mm

Cylindrical

125mm

Grinding thread profile



For circular : radius

>R2.5

Number of starts

1~4

Max. diameter of work piece admitted

Φ240mm

Max. length of work piece admitted

200mm

Center height

200mm

Work piece speed: working (step less)

0.3—15r/min,0.6—30r/min

               rapid

60r/min,100r/min

Max. longitudinal travel of table

440mm

Wheel head



Lateral movement

0~60mm

  Feed amount: per graduation of hand wheel

0.01mm

  Per turn of hand wheel

2mm

Max helix angle of thread ground

R.H.8°,L.H.12°

Wheel size: max dia.

100mm

          Min dia.

20mm

Wheel speed

7000,9000,14000,18000r/min

Total capacity of motors

4.11kw
