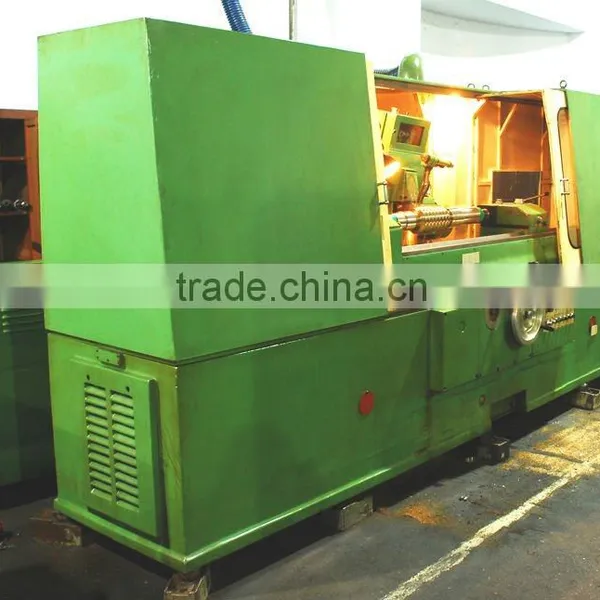

Help CenterHJMTC SK7720A CNC Worm Grinding Machines
Related Products
-
MK8612A High Precision CNC Spline Shaft GrindingNegotiableMOQ: 1 Set -
SK76 Series High Precision Thread Grinding MachineNegotiableMOQ: 1 Unit
-
HJMTC MGK1432 Serial Hi-precision CNC Cylindrical GrinderNegotiableMOQ: 1 Set
-
HJMTC SK7450 CNC Leadscrew Grinding MachineNegotiableMOQ: 1 Set
-
Thread Rolling Plate Grinding MachineNegotiableMOQ: 1 Set
Specifications
grind ZA,ZK, ZI ,ZN&ZCI profiels worms.Also can be used to grind lead screws.It is a high precision worm grinding machine and can be used for grinding various cylindrical worms such as the worms with profile ZA, ZK, ZI. It can be used for grinding the leadscrews with various profiles, suitable to machine tool works and other machinery industries.
specifications:
Max. diameter of workpiece: 200mm
Max. center distance: 750mm
Centre height: 120mm
Max. diameter ground: 200mm
Max. length ground: 500mm
Pitch ground: Module: 1.2-12mm
Metric: 1-24mm
British: 3/1"-24/1"
Max. lead ground:150
Max. helix angle ground: ±30°
Number of starts: 1, 2, 3, 4, 6, 8, 10, 12
Work spindle speed: For grinding r/min 0.2-4, 0.8-16
For rapid return r/min 1-5, 4-20
For indexing r/min 4
Cross traverse of wheel stock: 150mm
Rapid approach & withdrawal of wheel stock: 50mm
Wheel spindle speed: r/min 1340, 1480
Wheel size (O.D.xwidth) : 300-400x10/20
working accuracy:
for grinding worms with 1-2 starts: 5 grade
for grinding worms with 3 and above starts: 6 grade
for grinding leadscrew with pitch≤6mm: 6 grade
