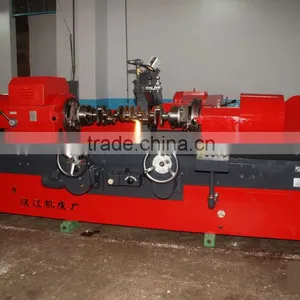

HJMTC MQ8260A Crankshaft Grinding Machine
- 200 Set / Sets per Month
- Shanghai
- T/T
- Second-hand sweeper second-hand mobile phone curved glass sweeper tablet computer curved glass sweeper
- Automatic Ultrafine Powder Grinder with Ceramic Mortar
- Automatic Powder Grinder with Ceramic Mortar
- Pneumatically-lifted Laboratory Grinder (Special grinding equipment for scientific research in Colleges and Universities)
- Pneumatically-lifted Grinder with Double Pestle and Ceramic Mortar (manual discharging)
- Pneumatically-lifted Grinder with Ceramic Mortar (Large grinder for chemical material and new material)
Product Details
Condition: | New | Type: | Other, Crankshaft grinding machine | CNC or Not: | Normal |
Place of Origin: | Shaanxi, China | Brand Name: | Hanjiang | Model Number: | MQ8260A |
Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Max. Work swing diameter × Max work length | Φ580×1600mm |
Capacity |
|
Max. Swing over table | Φ580mm |
Work diameter ground with steady rest | Φ30~Φ100mm |
Throw of crankshaft | 110mm |
Max. work length ground |
|
In 3-jaw chuck | 1400mm |
Between centers | 1600mm |
Max. work weight | 120kg |
Work head |
|
Center height | 300mm |
Work speed | 25,45,95r/min |
Wheel head |
|
Max. Cross movement | 185mm |
Wheel head rapid approach and withdrawal | 100mm |
Wheel feed per turnoff cross fed hand wheel | 1mm |
Per grad. of cross feed hand wheel | 0.005mm |
Grinding wheel |
|
Wheel spindle speed (2steps) | 740.890r/min |
Wheel peripheral speed | 25.6-35m/sec |
Wheel size (O. D .× width ×Bore) | Φ900×32×Φ305mm |
Table |
|
Table traverse per turn of hand wheel coarse | 5.88mm |
Fine | 1.68mm |
Table Swivel (taper 18/100) | 5° |
Table Swivel per grad of scale (taper 1:50) | 10′ |
Overall capacity of motors | 9.82kw |
Overall dimensions (L×W×H) | 4166×2037×1584 |
Weight | Approx. 6000kg |
